Product Description

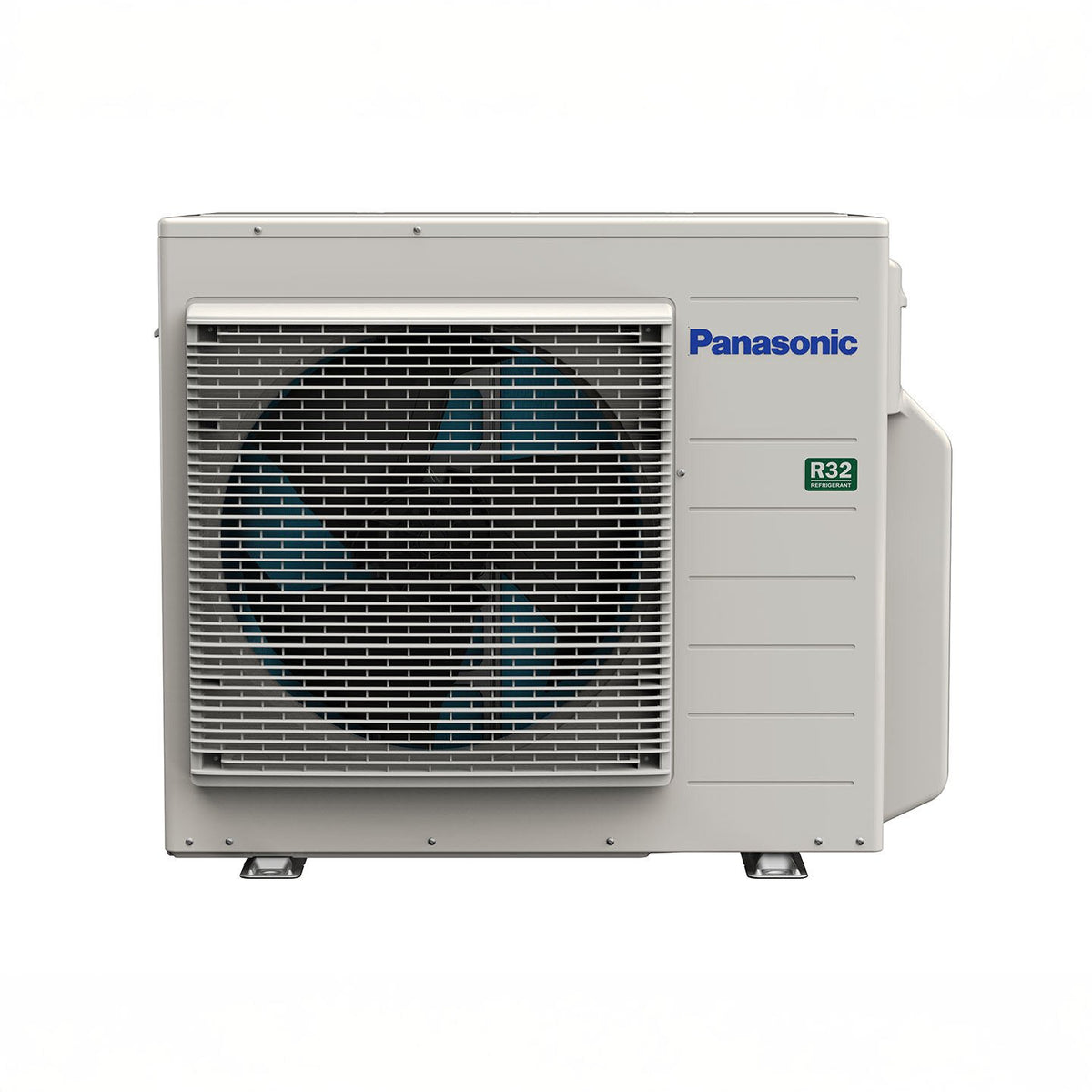

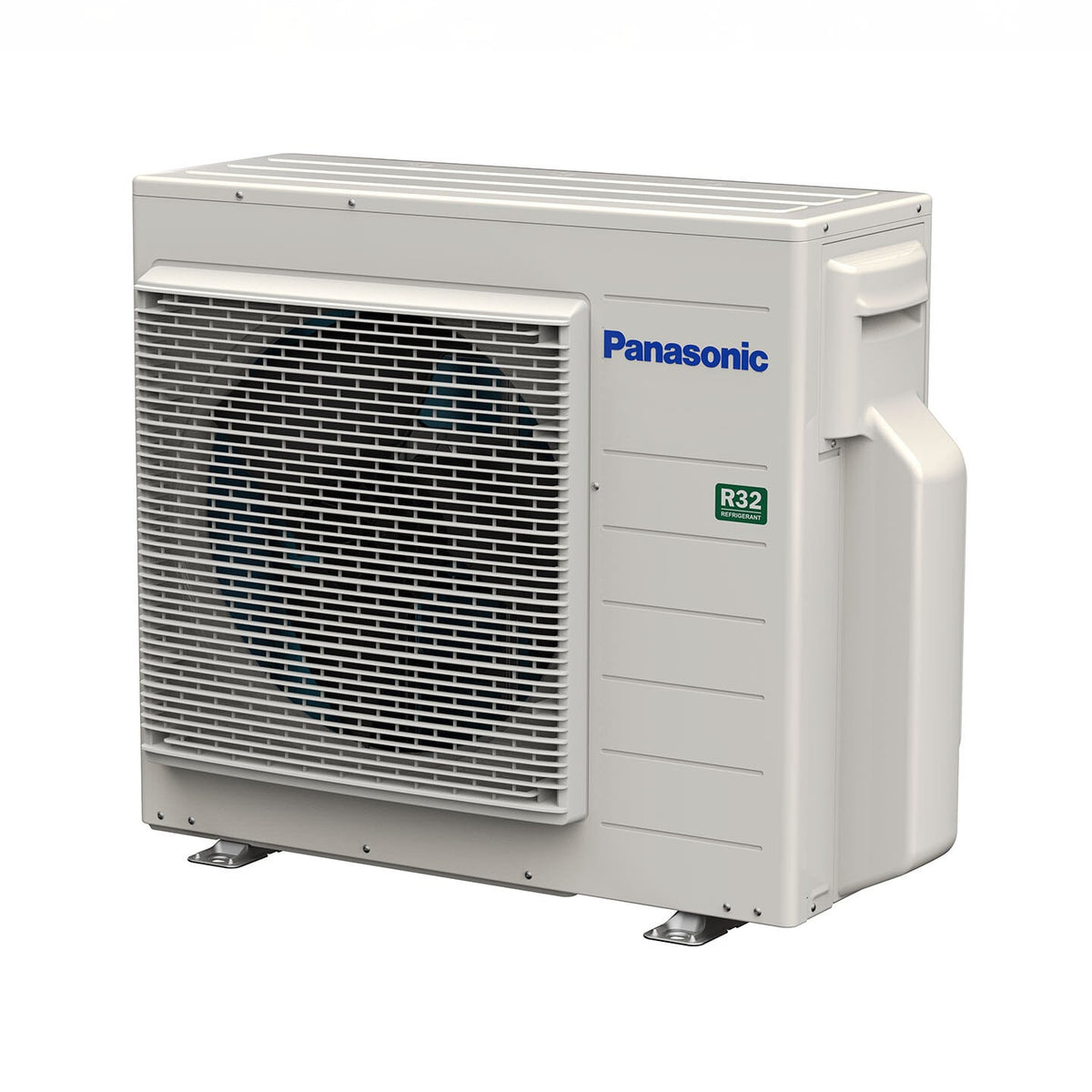

The Panasonic CU-2Z18ABUC is a 2-zone multi-split outdoor condenser designed to provide heating and cooling for two indoor units. It supports compatible Panasonic CS-MXZ5AKUA, CS-MXZ7AKUA, CS-XZ Series, and CS-Z Series indoor units, allowing individual indoor units to be selected for different rooms.
The CU-2Z18ABUC provides a rated cooling capacity of 18,000 BTU/h and a rated heating capacity of 22,000 BTU/h. It is designed for cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant. The outdoor unit also features a Blue Fin anti-corrosion condenser coating, a built-in base pan heater, and ENERGY STAR® Cold Climate Certification.
Key Features
- 2-Zone Multi-Split Design: Provides heating and cooling for up to two compatible indoor units.
- 18,000 BTU Cooling Capacity: Provides rated cooling capacity of 18,000 BTU/h with a range of 7,200–25,600 BTU/h.
- 22,000 BTU Heating Capacity: Provides rated heating capacity of 22,000 BTU/h with a range of 5,800–29,800 BTU/h.
- Cold Climate Heating: Supports heating operation down to -15°F (-26°C).
- R32 Refrigerant: Uses R32 refrigerant with zero ozone depletion impact.
- Blue Fin Condenser: Features an anti-corrosion coating designed to help protect the outdoor heat exchanger.
- Base Pan Heater: Included to support cold-weather operation.
- ENERGY STAR® Cold Climate Certified: Designed for efficient operation in cold-climate applications.
- Multiple Indoor Unit Options: Compatible with selected CS-MXZ5AKUA, CS-MXZ7AKUA, CS-XZ Series, and CS-Z Series indoor units.
- High-Efficiency Operation: Provides a SEER2 rating of 22.50 and HSPF2 ratings of 12.50 in Region IV and 10.00 in Region V.
Specifications
- Model: CU-2Z18ABUC
- Product Type: Multi-Zone Outdoor Condenser
- Zone Capacity: 2 Zone
- Application: Multi-Zone Ductless Heating and Air Conditioning
- Cooling Capacity: 18,000 BTU/h / 5.27 kW
- Cooling Capacity Range: 7,200–25,600 BTU/h
- Heating Capacity: 22,000 BTU/h / 6.45 kW
- Heating Capacity Range: 5,800–29,800 BTU/h
- Outdoor Airflow: 2,025 CFM
- SEER2: 22.50
- HSPF2 Region IV: 12.50
- HSPF2 Region V: 10.00
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 1.20 kW rated (360 W–2.00 kW)
- Heating Power Input: 1.66 kW rated (320 W–2.48 kW)
- Refrigerant: R32
Outdoor Unit Dimensions & Weight
- Height: 31-5/16 in (795 mm)
- Width: 34-15/32 in (875 mm)
- Depth: 12-5/8 in (320 mm)
- Weight: 128 lb (58 kg)
Compatible Indoor Units
- CS-MXZ5AKUA: 5,000 BTU-class indoor wall unit
- CS-MXZ7AKUA: 7,000 BTU-class indoor wall unit
- CS-XZ Series: Compatible XZ Series indoor units
- CS-Z Series: Compatible Z Series indoor units
Performance & Efficiency
- Cooling Capacity – Min/Rated/Max: 7,200 / 18,000 / 25,600 BTU/h
- Heating Capacity – Min/Rated/Max: 5,800 / 22,000 / 29,800 BTU/h
- Cooling Input – Min/Rated/Max: 360 W / 1,200 W / 2,000 W
- Heating Input – Min/Rated/Max: 320 W / 1,660 W / 2,480 W
- SEER2: 22.50
- HSPF2 Region IV: 12.50
- HSPF2 Region V: 10.00
Outdoor Unit Features
- Blue Fin anti-corrosion condenser coating
- Built-in base pan heater
- Cold-climate heating operation down to -15°F (-26°C)
- R32 refrigerant
- ENERGY STAR® Cold Climate Certified
- Multi-zone operation for two indoor units
System Configuration
- Outdoor Unit: CU-2Z18ABUC
- System Type: Panasonic Multi-Zone Mini-Split Heat Pump
- Number of Zones: 2
- Compatible Indoor Series: CS-MXZ, CS-XZ, and CS-Z Series
