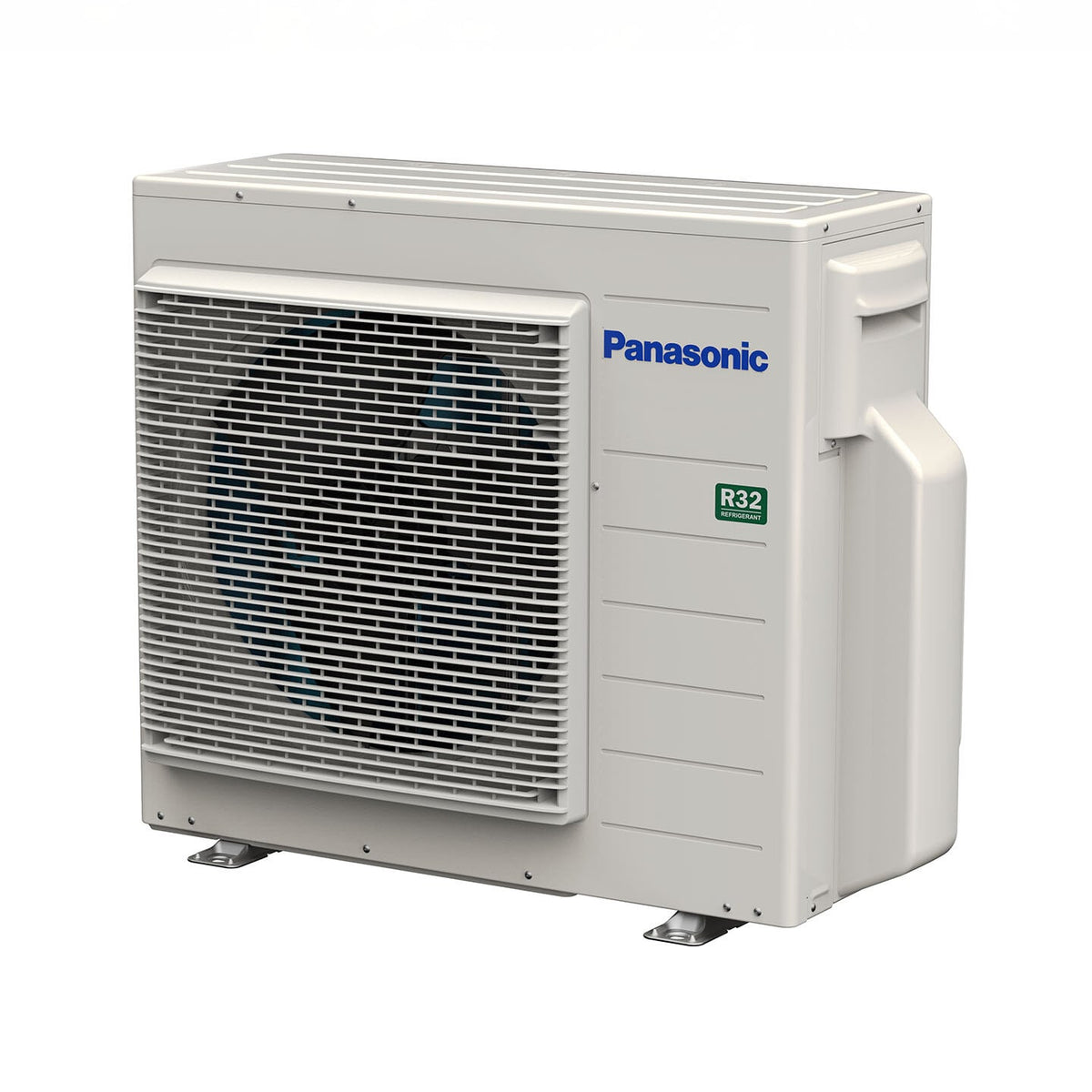

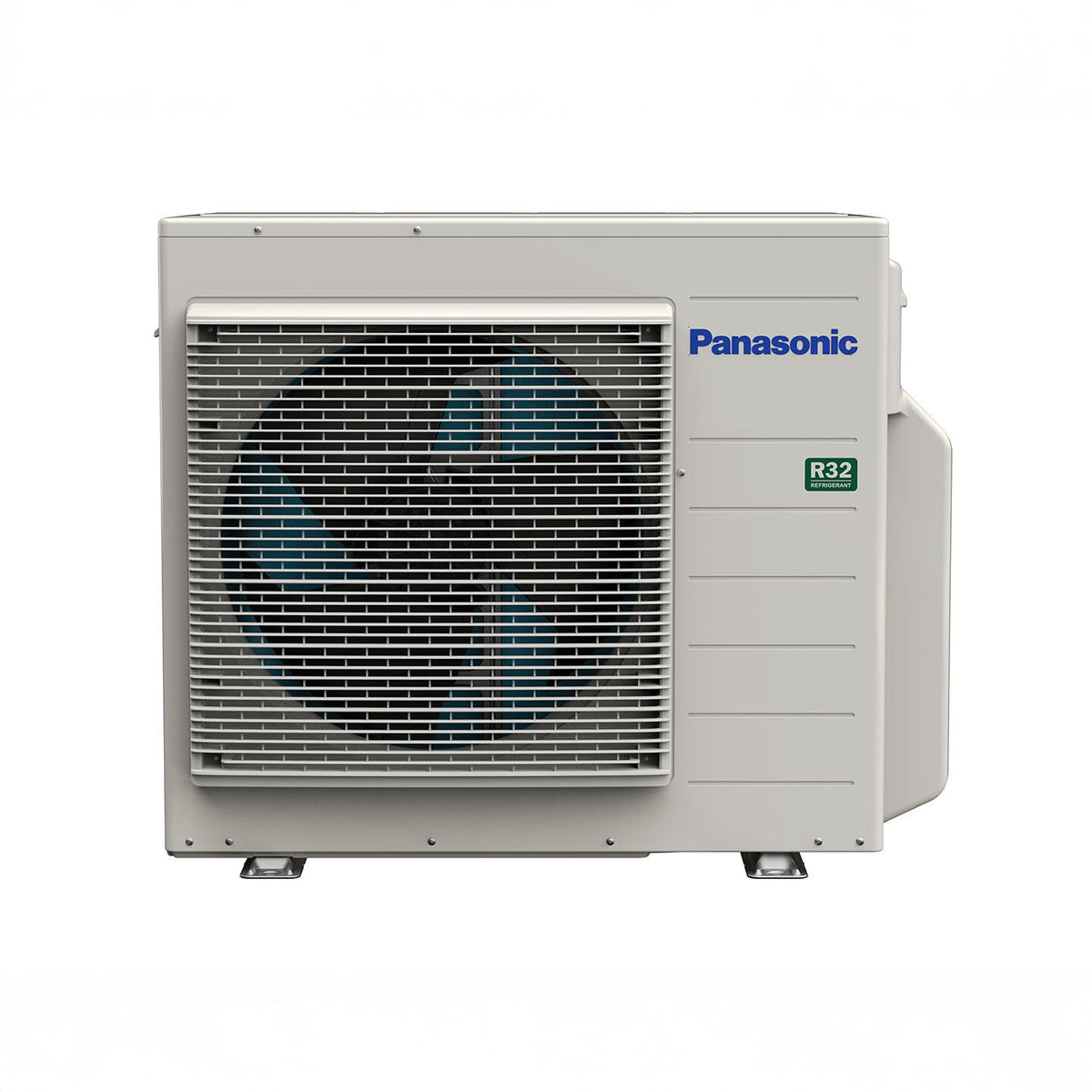

Panasonic CU-3Z22ABUC Multi-Zone 2-3 Zone Outdoor Condenser

Product Description

The Panasonic CU-3Z22ABUC is a multi-zone outdoor condenser designed to provide efficient heating and cooling for 2 or 3 indoor units. With support for compatible 5,000 to 18,000 BTU indoor wall units, this system provides flexible zoned comfort for multiple rooms. It features cold-climate heating operation down to -15°F (-26°C), R32 refrigerant, a Blue Fin anti-corrosion condenser coating, and an integrated base pan heater.

Key Features

• 2-3 Zone Multi-Split System: Designed to connect with 2 or 3 compatible indoor units for independent zoned heating and cooling.
• 22,000 BTU Cooling Capacity: Rated cooling capacity of 22,000 BTU/h with an operating range of 7,200 to 30,000 BTU/h.
• 26,000 BTU Heating Capacity: Rated heating capacity of 26,000 BTU/h with an operating range of 5,500 to 34,200 BTU/h.
• Cold Climate Heating: Designed for heating operation in outdoor temperatures down to -15°F (-26°C).
• High Energy Efficiency: Provides a SEER2 rating of 24.50 with HSPF2 ratings of 10.70 in Region IV and 8.70 in Region V.
• R32 Refrigerant: Uses R32 refrigerant and is designed for modern, efficient mini-split operation.
• Blue Fin Condenser: Anti-corrosion coating helps protect the outdoor heat exchanger from environmental exposure.
• Base Pan Heater Included: Integrated base pan heater supports reliable operation in cold weather conditions.
• ENERGY STAR Cold Climate Certified: Certified for cold-climate heating performance.
• High Outdoor Airflow: Delivers up to 1,991 CFM of outdoor airflow.

Specifications

• Model: CU-3Z22ABUC
• Product Type: Multi-Zone Outdoor Condenser
• Zone Configuration: 2-3 Zone
• Cooling Capacity: 22,000 BTU/h
• Cooling Capacity Range: 7,200-30,000 BTU/h
• Cooling Capacity: 6.45 kW
• Heating Capacity: 26,000 BTU/h
• Heating Capacity Range: 5,500-34,200 BTU/h
• Heating Capacity: 7.65 kW
• Outdoor Airflow: 1,991 CFM
• SEER2: 24.50
• HSPF2 Region IV: 10.70
• HSPF2 Region V: 8.70
• Power Supply: 208/230V, Single Phase, 60Hz
• Cooling Power Input: 1.72 kW rated; 0.38-2.42 kW range
• Heating Power Input: 1.76 kW rated; 0.32-2.78 kW range
• Refrigerant: R32
• Outdoor Dimensions: 31-5/16 x 34-15/32 x 12-5/8 in
• Outdoor Dimensions: 795 x 875 x 320 mm
• Weight: 128 lb (58 kg)

Compatible Indoor Units

• CS-MXZ5AKUA
• CS-MXZ7AKUA
• CS-XZ Series
• CS-Z Series

Performance & System Details

• Cold Climate Operation: Down to -15°F (-26°C)
• Condenser Protection: Blue Fin anti-corrosion coating
• Base Pan Heater: Included
• Certification: ENERGY STAR Cold Climate Certified
• System Type: Ductless multi-zone heat pump
• Indoor Unit Selection: Compatible indoor wall units from 5,000 to 18,000 BTU

Note: Panasonic specifies that the detailed capacity specifications shown for the outdoor unit are based on the indicated indoor-unit combination. Always verify the intended indoor/outdoor combination and installation requirements before installation.
