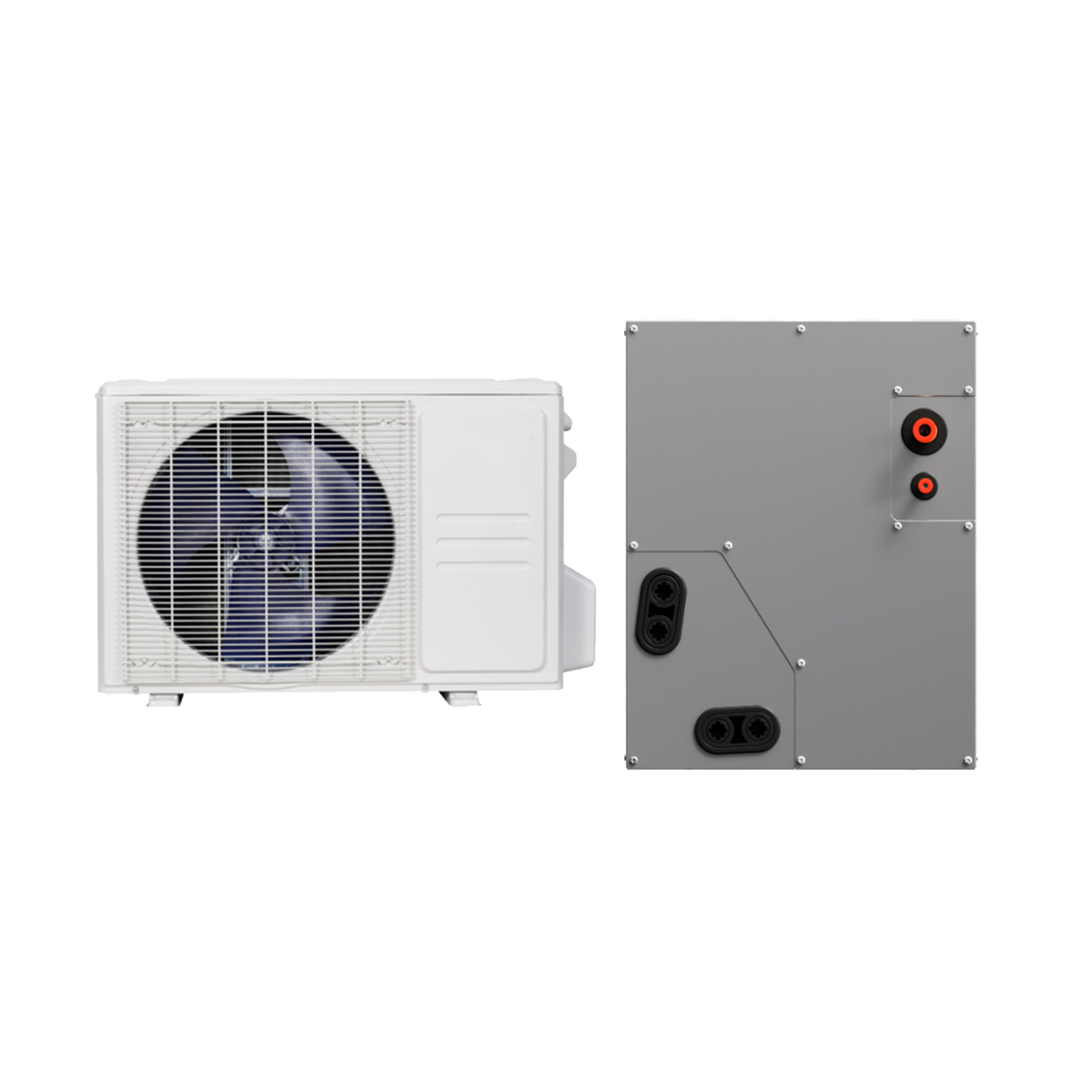

Panasonic CU-HM24BAHU INTERIOS 2 Ton Cold Climate Outdoor Heat Pump

Product Description

The Panasonic CU-HM24BAHU is a 2-ton cold-climate outdoor heat pump condenser designed for the INTERIOS hybrid heating and cooling system. When paired with a compatible CS-HM24BAAU1 or CS-HM24BAAU2 A-coil, it integrates with a new or existing furnace to provide whole-home heating and cooling. The system uses R454B refrigerant, inverter-driven heat pump technology, and is designed for cold-climate operation down to -20°F (-30°C).

Key Features

• 2 Ton Capacity: Provides 24,000 BTU/h rated cooling capacity and 25,000 BTU/h rated heating capacity.
• Cold Climate Heating: Designed for heating operation down to -20°F (-30°C).
• 21,000 BTU at 5°F: Delivers 21,000 BTU/h heating capacity at 5°F with a COP of 1.8.
• R454B Refrigerant: Uses R454B refrigerant for the INTERIOS cold-climate heat pump system.
• Inverter Heat Pump Condenser: Variable-capacity inverter operation helps provide efficient heating and cooling.
• Hybrid Heating Compatible: Designed to integrate with a new or existing furnace through a compatible A-coil.
• ENERGY STAR Cold Climate Certified: The CU-HM24BAHU system is ENERGY STAR certified for cold-climate applications.
• Multi-Position System: Compatible with Panasonic INTERIOS A-coil configurations for flexible installation.
• Quiet Outdoor Operation: Outdoor sound level is approximately 60 dBA.
• R454B System: Uses a lower-impact A2L refrigerant with zero ozone depletion potential.

Specifications

• Model: CU-HM24BAHU
• Product Type: Outdoor Heat Pump Condenser
• Series: Panasonic INTERIOS Extreme Heat Series
• Capacity Class: 2 Ton
• Rated Cooling Capacity: 24,000 BTU/h
• Cooling Capacity Range: 7,900-27,600 BTU/h
• Rated Heating Capacity: 25,000 BTU/h
• Heating Capacity Range: 6,500-30,000 BTU/h
• Heating Capacity at 17°F: 21,000 BTU/h
• Heating Capacity at 5°F: 21,000 BTU/h
• COP at 5°F: 1.8
• SEER2: 16.0
• EER2: 10.0
• HSPF2 Region IV: 9.5
• HSPF2 Region V: 7.0
• COP: 3.20
• Refrigerant: R454B
• Refrigerant Charge: 74.08 oz (2.1 kg)

Performance & Power Input

• Cooling Capacity - Minimum: 7,900 BTU/h
• Cooling Capacity - Rated: 24,000 BTU/h
• Cooling Capacity - Maximum: 27,600 BTU/h
• Cooling Power Input - Minimum: 680 W
• Cooling Power Input - Rated: 2,400 W
• Cooling Power Input - Maximum: 2,890 W
• Heating Capacity - Minimum: 6,500 BTU/h
• Heating Capacity - Rated: 25,000 BTU/h
• Heating Capacity - Maximum: 30,000 BTU/h
• Heating Power Input - Minimum: 330 W
• Heating Power Input - Rated: 2,290 W
• Heating Power Input - Maximum: 2,900 W

Electrical Specifications

• Outdoor Power Supply: 208/230V, Single Phase, 60Hz
• Minimum Circuit Ampacity: 19 A
• Maximum Fuse / Overcurrent Protection: 20 A
• Outdoor Fan Motor RLA: 1.0 A
• Indoor Power Supply: 24V, Single Phase, 60Hz through compatible A-coil/system

Compressor & Outdoor Unit

• Compressor Type: Rotary inverter compressor
• Outdoor Airflow: 1,766 CFM maximum
• Outdoor Noise Level: 60 dBA
• Refrigerant: R454B
• Refrigerant Oil: VG75
• System Type: Inverter-driven cold-climate heat pump

Operating Conditions

• Cooling Outdoor Operating Range: -22°F to 122°F (-30°C to 50°C)
• Heating Outdoor Operating Range: -22°F to 75°F (-30°C to 24°C)
• Cold Climate Heating: Down to -20°F (-30°C)
• Heating at 5°F: 21,000 BTU/h
• COP at 5°F: 1.8

Piping Specifications

• Refrigerant Control: Electronic Expansion Valve (EXV)
• Liquid Pipe Size: 3/8 in
• Gas Pipe Size: 3/4 in
• Maximum Piping Length: 164 ft
• Maximum Indoor/Outdoor Height Difference: 82 ft
• Additional Refrigerant: 0.7 oz/ft
• Connection Method: Flared

Dimensions & Weight

• Outdoor Unit Dimensions: 26-1/2 x 35 x 13-1/2 in (H x W x D)
• Outdoor Unit Dimensions: Approximately 673 x 890 x 342 mm (H x W x D)
• Outdoor Unit Weight: 102 lb (46 kg)
• Outdoor Carton Dimensions: 29-1/4 x 39-1/4 x 15-3/4 in
• Outdoor Carton Weight: 109 lb

Compatible Indoor A-Coils

• CS-HM24BAAU1
• CS-HM24BAAU2

System Applications

• System Type: Central ducted heat pump
• Application: Hybrid heating and cooling / dual-fuel system
• Indoor Configuration: A-coil integrated with a new or existing furnace
• System Capacity: 2 Ton
• Refrigerant: R454B
• Certification: ENERGY STAR Cold Climate
• Heating Operation: Down to -20°F (-30°C)

Note: CU-HM24BAHU is an outdoor condenser and must be paired with a compatible Panasonic INTERIOS A-coil. Panasonic lists CS-HM24BAAU1 and CS-HM24BAAU2 as compatible indoor A-coils. Verify the complete system combination, piping requirements, electrical requirements, and installation conditions before installation.
