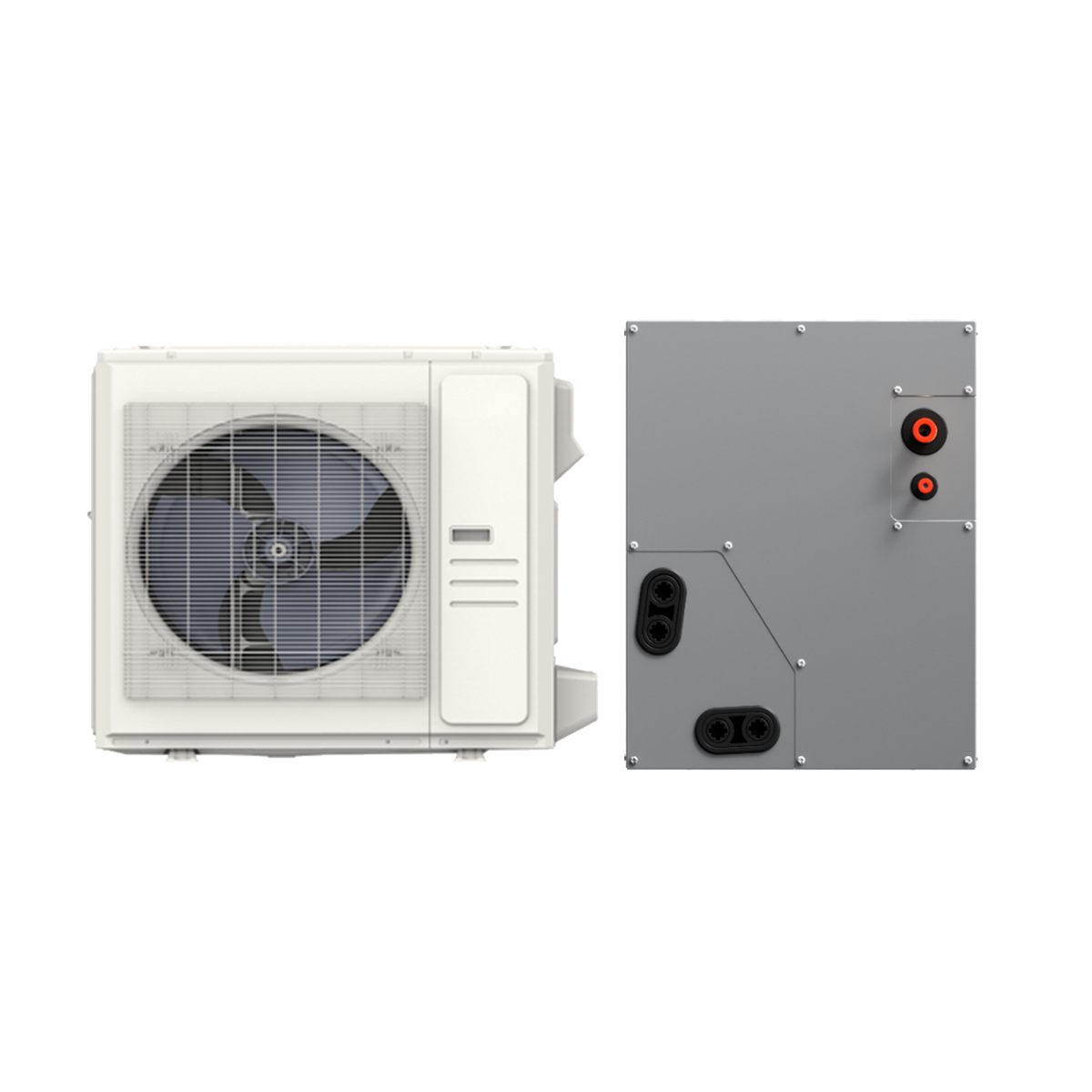

Panasonic CU-HM36BAHU INTERIOS 3 Ton Outdoor Heat Pump

Product Description

The Panasonic INTERIOS CU-HM36BAHU is a 3-ton outdoor extreme heat pump designed for hybrid heating and cooling applications with compatible INTERIOS A-coil indoor units. It integrates with a new or existing furnace to provide whole-home heating and cooling while supporting cold-climate operation down to -22°F (-30°C). The system uses R454B refrigerant and is ENERGY STAR Cold Climate certified.

The CU-HM36BAHU delivers 36,000 BTU/h of rated cooling capacity and 38,000 BTU/h of rated heating capacity at 47°F. At 17°F, the rated heating capacity is 29,200 BTU/h, while at 5°F the system provides 36,000 BTU/h with a COP of 1.9. The outdoor unit uses a rotary compressor, electronic expansion valve, and supports flexible installation and hybrid dual-fuel operation.

Key Features

• 3-ton class outdoor heat pump for INTERIOS hybrid heating and cooling systems
• 36,000 BTU/h rated cooling capacity
• 38,000 BTU/h rated heating capacity at 47°F
• 36,000 BTU/h rated heating capacity at 5°F
• 29,200 BTU/h rated heating capacity at 17°F
• Cold-climate operation down to -22°F (-30°C)
• R454B refrigerant with lower global warming potential than R410A
• ENERGY STAR Cold Climate certified system
• Rotary compressor with electronic expansion valve control
• Built-in A2L refrigerant sensor system
• Built-in base pan for extreme cold-weather heating operation
• Designed for hybrid dual-fuel applications with compatible A-coil indoor units
• Maximum piping length up to 246 ft
• Maximum indoor-to-outdoor height difference of 98 ft
• Outdoor airflow up to 3,002 CFM
• Outdoor noise level of 64 dBA

Performance Specifications

• Outdoor Unit: CU-HM36BAHU
• System Type: Hybrid A-Coil Heat Pump
• Nominal Capacity: 3 Ton
• Rated Cooling Capacity: 36,000 BTU/h
• Cooling Capacity Range: 12,100–41,000 BTU/h
• Rated Heating Capacity at 47°F: 38,000 BTU/h
• Heating Capacity Range at 47°F: 11,500–46,000 BTU/h
• Rated Heating Capacity at 17°F: 29,200 BTU/h
• Rated Heating Capacity at 5°F: 36,000 BTU/h
• Maximum Heating Capacity at 5°F: 36,000 BTU/h
• Moisture Removal: 4.91 L/h
• SEER2: 15.8
• EER2: 10.7
• HSPF2 Region IV: 9.4
• COP: 3.3
• COP at 5°F: 1.9

Power & Electrical Specifications

• Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
• Indoor Power Supply: 24V, 1 Phase, 60Hz
• Cooling System Power Input: 3,364 W rated
• Cooling Power Input Range: 1,020–4,520 W
• Heating System Power Input: 3,375 W rated
• Heating Power Input Range: 800–4,540 W
• Outdoor MCA: 29 A
• Outdoor MOP: 30 A
• Compressor RLA: 20.5 A
• Outdoor Fan Motor RLA: 2.4 A
• Communication Wiring: AWG 20-2

Compressor & Refrigeration

• Compressor Type: Rotary
• Compressor Model: EKPQ420D1UMUA
• Refrigerant: R454B
• Factory Refrigerant Charge: 126.99 oz / 3.6 kg
• Additional Refrigerant: 0.7 oz/ft / 65 g/m
• Refrigerant Oil: VG75
• Refrigerant Oil Charge: 1,460 mL
• Throttle Type: Electronic Expansion Valve (EXV)

Piping Specifications

• Connection Method: Flared
• Liquid Pipe Size: 3/8 in
• Gas Pipe Size: 3/4 in
• Maximum Piping Length: 246 ft / 75 m
• Maximum Height Difference: 98 ft / 30 m
• Maximum Pre-Charged Piping Length: 24.6 ft / 7.5 m

Operating Conditions

• Cooling Operating Range: -22°F to 122°F (-30°C to 50°C)
• Heating Operating Range: -22°F to 75°F (-30°C to 24°C)
• Cold Climate Heating Operation: Down to -22°F (-30°C)

Outdoor Unit Specifications

• Dimensions (W × D × H): 38.58 × 16.34 × 38.39 in
• Dimensions (W × D × H): 980 × 415 × 975 mm
• Net Weight: 204.15 lb / 92.6 kg
• Gross Weight: 235.23 lb / 106.7 kg
• Maximum Outdoor Airflow: 3,002 CFM
• Outdoor Noise Level: 64 dBA

Compatible Indoor Units

• CS-HM36BAAU1
• CS-HM36BAAU2
• CS-HM36BAAU3

Application

The CU-HM36BAHU is designed for central ducted hybrid heating and cooling systems. When paired with a compatible INTERIOS A-coil, it can integrate with a furnace to provide dual-fuel whole-home heating and cooling. The system supports multi-position A-coil installation, R454B refrigerant, A2L refrigerant sensing, and extreme cold-climate operation.
