Panasonic CU-HM55BAHU INTERIOS 4.5 Ton Outdoor Heat Pump

Product Description

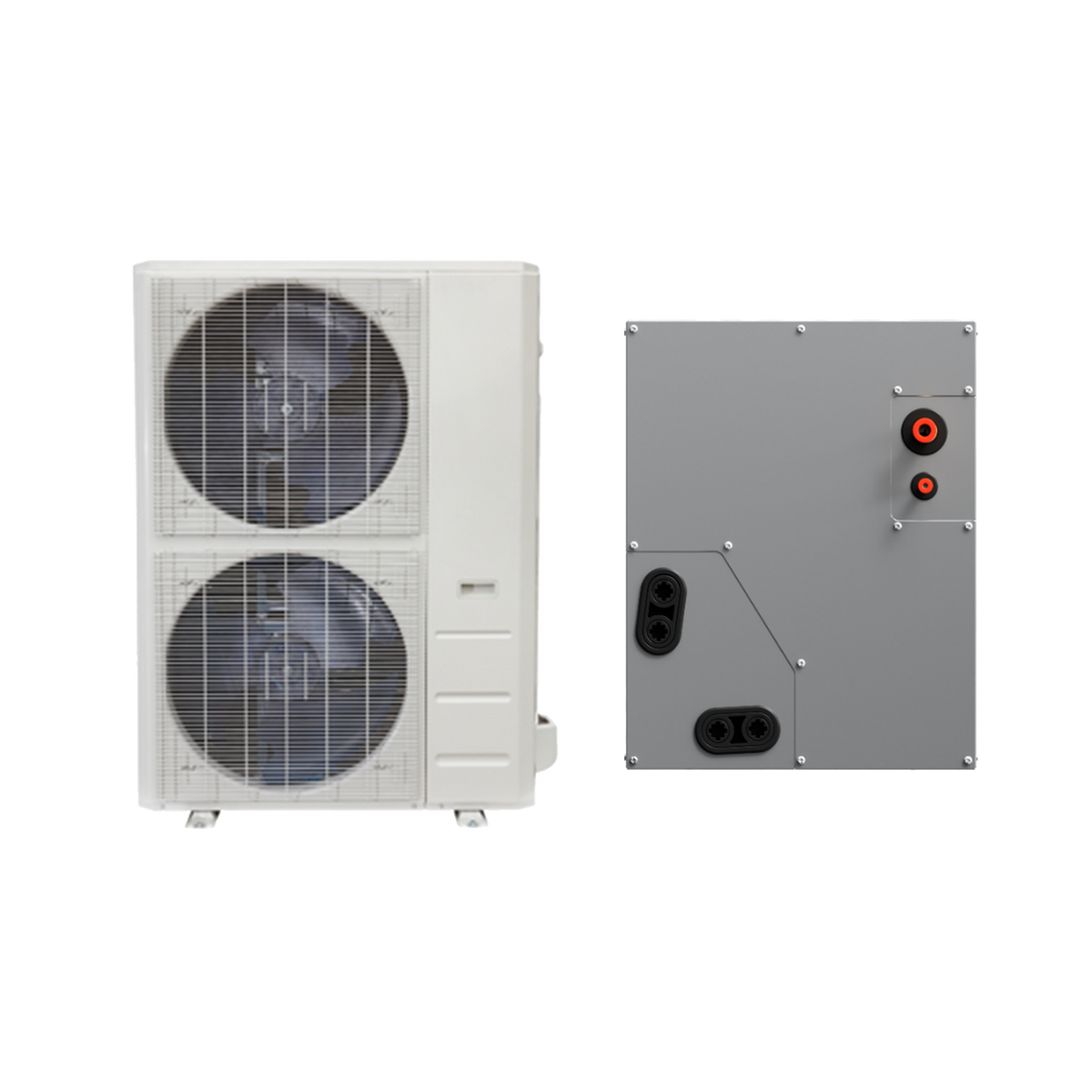

The Panasonic INTERIOS CU-HM55BAHU is a 4.5-ton-class outdoor extreme heat pump designed for central ducted heating and cooling applications. It is compatible with Panasonic INTERIOS A-coil systems for hybrid dual-fuel heating and cooling, allowing the heat pump to integrate with a new or existing furnace for whole-home comfort.

The CU-HM55BAHU uses R454B refrigerant and provides cold-climate heating operation down to -22°F (-30°C). When paired with the CS-HM60BAAU4 A-coil, the system provides up to 53,000 BTU/h rated cooling capacity and 58,000 BTU/h rated heating capacity. Panasonic specifies continuously variable compressor operation, electronic refrigerant control, and a built-in base pan for cold-climate operation.

Key Features

• 4.5-ton-class outdoor extreme heat pump
• Designed for INTERIOS hybrid heating and cooling applications
• Compatible with CS-HM60BAAU4 and CS-HM60BAMU3 indoor A-coils
• Up to 53,000 BTU/h rated cooling capacity with CS-HM60BAAU4
• 58,000 BTU/h rated heating capacity with CS-HM60BAAU4
• Heating capacity up to 52,000 BTU/h at 5°F in the CS-HM60BAAU4 hybrid configuration
• Cold-climate operation down to -22°F (-30°C)
• R454B refrigerant
• Continuously variable compressor operation
• Twin-rotary compressor
• Electronic expansion valve refrigerant control
• Built-in base pan for extreme cold-weather operation
• A2L refrigerant sensor included with compatible A-coil system
• Central ducted, whole-home heating and cooling design
• Maximum piping length of 246 ft
• Maximum height difference of approximately 98 ft
• Outdoor airflow up to 2,649 CFM
• Outdoor noise level of approximately 64 dBA

Performance Specifications

• Model: CU-HM55BAHU
• System Type: INTERIOS Extreme Heat Hybrid A-Coil Heat Pump
• Nominal Capacity Class: 4.5 Ton
• Rated Cooling Capacity: 53,000 BTU/h
• Cooling Capacity Range: 17,600–53,400 BTU/h
• Rated Heating Capacity: 58,000 BTU/h
• Heating Capacity Range: 21,200–59,000 BTU/h
• Heating Capacity at 5°F: 52,000 BTU/h
• COP at 5°F: Approximately 1.8
• SEER2: 15.2 with CS-HM60BAAU4 hybrid A-coil configuration
• EER2: 10.0
• HSPF2 Region IV: 8.1
• HSPF2 Region V: 6.8
• Refrigerant: R454B

Electrical Specifications

• Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
• Indoor/A-Coil Power: 24V, 1 Phase, 60Hz
• Cooling Input Power: 1,520–6,020–6,040 W (Min/Rated/Max)
• Heating Input Power: 1,580–6,159–6,750 W (Min/Rated/Max)
• Outdoor Fan Motor RLA: 1.2 A
• Minimum Circuit Ampacity: Refer to the applicable installation/submittal documentation for the complete electrical protection requirements.

Compressor & Refrigeration

• Compressor Type: Twin-Rotary
• Compressor Model: ETPQ480D66UMU1
• Refrigerant: R454B
• Factory Refrigerant Charge: 183.42 oz
• Refrigerant Oil: VG75
• Refrigerant Oil Charge: 1,300 mL
• Expansion Device: Electronic Expansion Valve

Piping Specifications

• Connection Type: Flared
• Liquid Pipe Size: 3/8 in
• Gas Pipe Size: 3/4 in
• Maximum Piping Length: 246 ft
• Maximum Height Difference: 98 ft
• Maximum Pre-Charged Piping Length: 24.6 ft
• Additional Refrigerant: 0.7 oz/ft

Operating Conditions

• Cooling Operating Range: -22°F to 122°F (-30°C to 50°C)
• Heating Operating Range: -22°F to 75°F (-30°C to 24°C)
• Cold Climate Heating: Down to -22°F (-30°C)

Outdoor Unit Specifications

• Outdoor Unit: CU-HM55BAHU
• Dimensions (H × W × D): 52-1/2 × 37-1/2 × 16-3/8 in
• Dimensions (H × W × D): 1333 × 952 × 415 mm
• Net Weight: 242.95 lb / approximately 110.2 kg
• Gross Weight: 275 lb / approximately 124.8 kg
• Outdoor Airflow: 2,649 CFM
• Outdoor Noise Level: 64 dBA

Compatible A-Coil Indoor Units

• CS-HM60BAAU4
• CS-HM60BAMU3

Hybrid Heating Application

The CU-HM55BAHU is designed for central ducted hybrid dual-fuel applications. When paired with a compatible INTERIOS A-coil, the heat pump can work with a new or existing furnace to provide whole-home heating and cooling. Panasonic's INTERIOS Extreme Heat platform is designed for cold-climate operation down to -22°F (-30°C).

Refrigerant & System Safety

The system uses R454B refrigerant. Panasonic's compatible A-coil platform incorporates an A2L refrigerant sensor and is designed for cold-climate operation with a built-in base pan. The CU-HM55BAHU is also listed by Panasonic as an ENERGY STAR Cold Climate compatible system component when used in qualifying system combinations.

System Compatibility Note

Performance ratings vary depending on the indoor A-coil combination. The specifications above distinguish the CU-HM55BAHU outdoor-unit data from the published system ratings for the CS-HM60BAAU4 hybrid A-coil combination. Always use the applicable Panasonic/AHRI submittal for final installation and certification data.
