Product Description

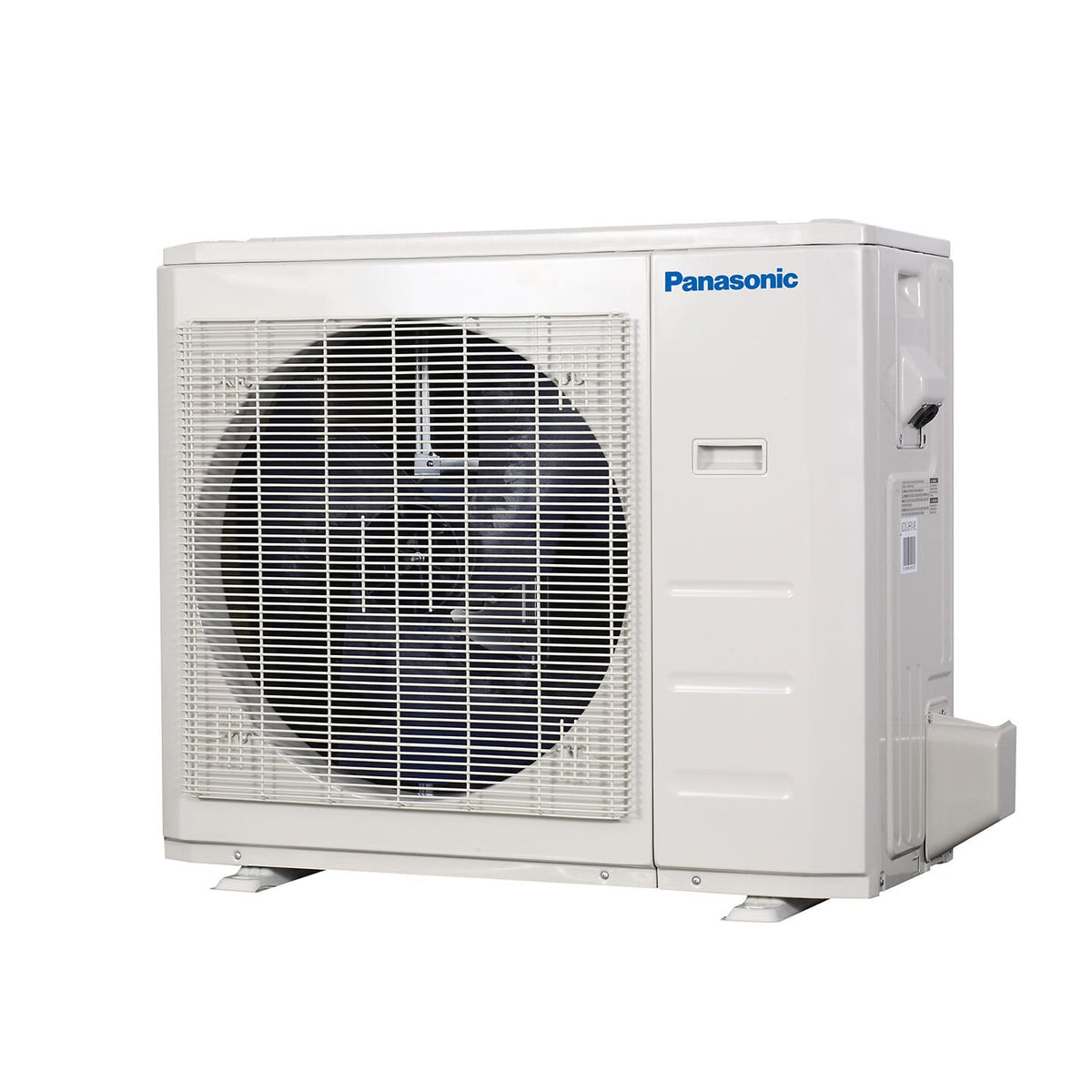

The Panasonic CU-M30BAHU is a 2.5-ton inverter heat pump outdoor condenser designed for the INTERIOS Central Heat Pump System. Paired with the CS-HM30BAHU multi-position air handler, it provides 30,000 BTU/h of rated cooling capacity and 31,000 BTU/h of rated heating capacity. The system uses R454B refrigerant and is designed for whole-home heating and cooling, with heating operation down to -13°F (-25°C).
Key Features
- 2.5-Ton Capacity: Provides 30,000 BTU/h rated cooling capacity and 31,000 BTU/h rated heating capacity.
- Inverter Heat Pump Condenser: Variable-capacity inverter technology helps provide efficient heating and cooling operation.
- Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
- 5°F Heating Performance: Delivers 19,100 BTU/h at 5°F with a COP of 2.0.
- R454B Refrigerant: Uses R454B refrigerant for a lower-GWP HVAC system design.
- ENERGY STAR Certified: The M30BAHU system is ENERGY STAR certified.
- Multi-Position Air Handler Compatibility: Designed to operate with the CS-HM30BAHU air handler.
- Quiet Operation: The outdoor unit has a rated noise level of 60 dBA.
- Auxiliary Heat Options: Compatible auxiliary electric heat kits are available for additional heating support.
- Flexible Controls: The system supports wired and wireless remote controls.
Specifications
- Brand: Panasonic
- Series: INTERIOS
- Model: CU-M30BAHU
- System: M30BAHU
- Unit Type: Outdoor Inverter Heat Pump Condenser
- Capacity Class: 2.5 Ton
- Rated Cooling Capacity: 30,000 BTU/h
- Cooling Capacity Range: 10,400–34,000 BTU/h
- Rated Heating Capacity at 47°F: 31,000 BTU/h
- Heating Capacity Range at 47°F: 6,400–32,000 BTU/h
- Heating Capacity at 5°F: 19,100 BTU/h
- COP at 5°F: 2.0
- Moisture Removal: 3.57 L/h
- SEER2: 17.0
- EER2: 10.7
- HSPF2 Region 4 / Region 5: 8.5 / 6.6
- COP: 3.50
- Refrigerant: R454B
- Outdoor Airflow: 3,001.8 CFM
- Outdoor Noise Level: 60 dBA
- Cooling Operating Range: -13°F to 122°F (-25°C to 50°C)
- Heating Operation: Down to -13°F (-25°C)
Electrical Specifications
- Outdoor Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 22.5 A
- Outdoor MOP: 25 A
- Compressor RLA: 17 A
- Outdoor Fan Motor RLA: 1.1 A
- Outdoor Fan Motor: 120 W
- System Cooling Power Input: 2,778 W (735–3,230 W)
- System Heating Power Input: 2,595 W (455–2,550 W)
- Communication Wiring: AWG 20-2
Outdoor Unit Construction
- Compressor Type: Rotary
- Compressor Model: KTF250D22UMT
- Refrigerant Oil: VG74
- Refrigerant Oil Charge: 670 mL
- Outdoor Dimensions (W x D x H): 37.24 x 16.14 x 31.89 in.
- Outdoor Dimensions (W x D x H): 946 x 410 x 810 mm
- Outdoor Unit Net Weight: 141.76 lb (64.3 kg)
- Outdoor Unit Gross Weight: 152.34 lb (69.1 kg)
- Outdoor Package Dimensions (W x D x H): 42.91 x 19.68 x 34.84 in.
- Outdoor Package Dimensions (W x D x H): 1,090 x 500 x 885 mm
Compatible Indoor Unit
- Indoor Unit: Panasonic CS-HM30BAHU
- Indoor Unit Type: Multi-Position Central Air Handler
- Indoor Dimensions (W x D x H): 21.02 x 21.02 x 49.02 in.
- Indoor Dimensions (W x D x H): 534 x 534 x 1,245 mm
- Indoor Unit Net Weight: 128.97 lb (58.5 kg)
Applications
- Whole-home heating and cooling
- Residential central HVAC systems
- New construction
- HVAC replacement and retrofit projects
- Multi-position air-handler installations
- Cold-climate heating applications
