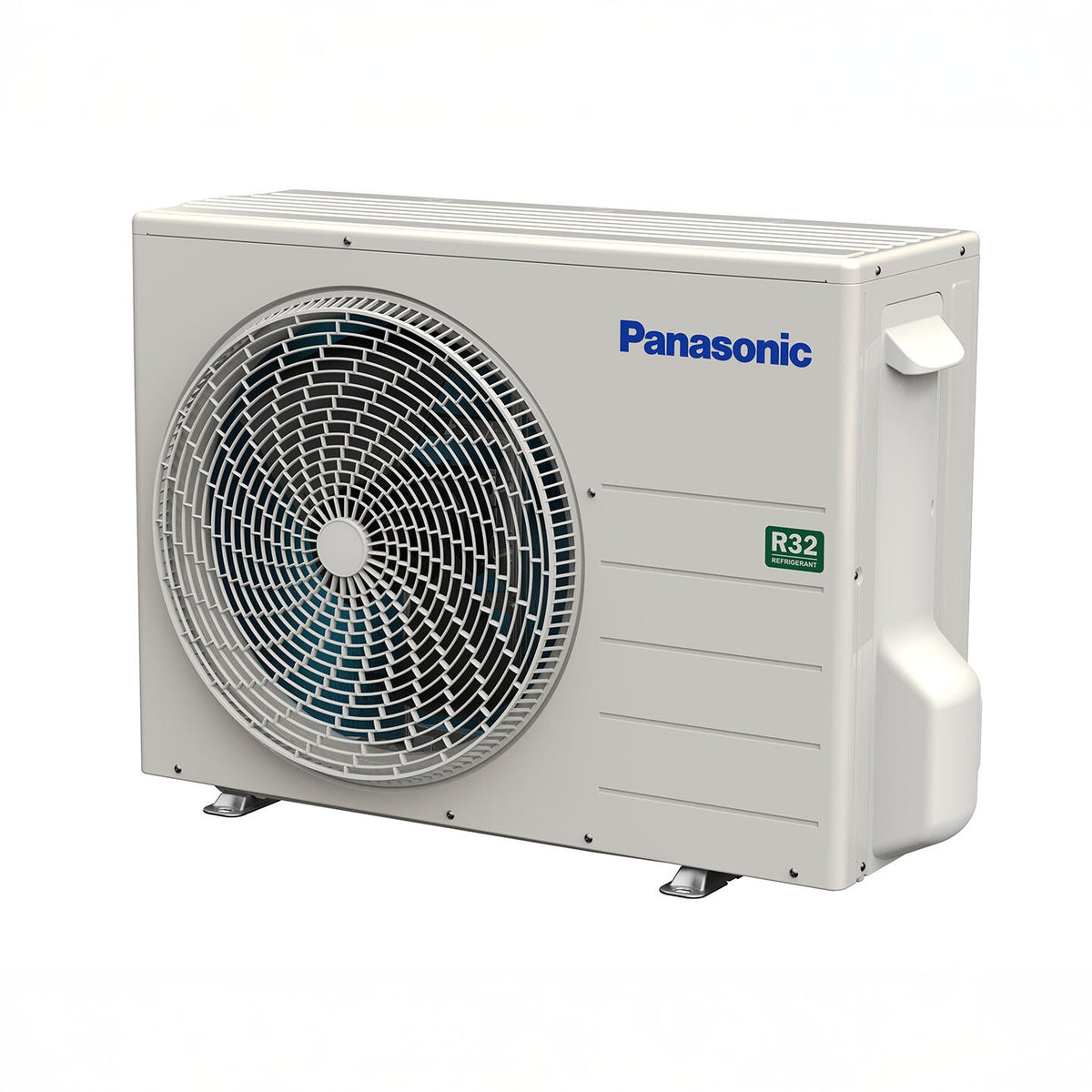

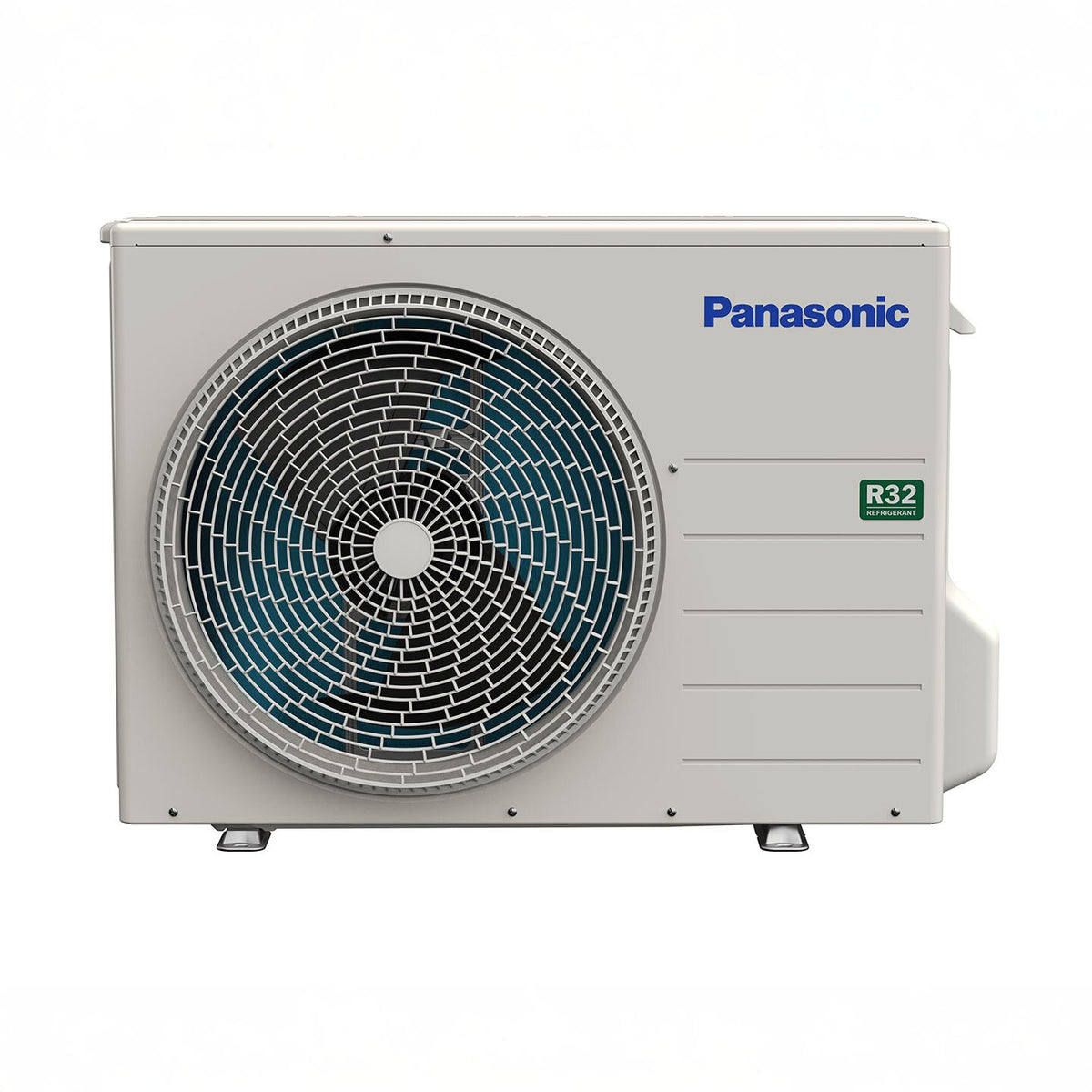

Panasonic CU-XZ15AKUAC ClimaPure XZ Series 15,000 BTU Ductless Mini Split Outdoor Unit

Product Description

The Panasonic ClimaPure XZ Series CU-XZ15AKUAC is the outdoor unit designed for the XZ15AKUA single-split ductless heat pump system. It pairs with the indoor unit to provide efficient heating and cooling with inverter-driven operation and variable-capacity performance.

The matched system provides a rated cooling capacity of 14,700 BTU/h and a rated heating capacity of 17,200 BTU/h. The system can modulate capacity from 3,300 to 19,300 BTU/h in cooling mode and from 3,300 to 25,200 BTU/h in heating mode. It is designed for cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.

The CU-XZ15AKUAC uses an inverter-driven hermetic rotary compressor with a brushless 6-pole motor. When matched with the compatible CS-XZ15AKUAW indoor unit, the system provides high-efficiency operation with SEER2 of 22.40, EER2 of 13.35, and HSPF2 of 12.00. Panasonic also lists the system as ENERGY STAR® Cold Climate Certified.

Key Features

• ClimaPure XZ Series outdoor unit
• Designed for the XZ15AKUA single-split ductless system
• Compatible indoor unit: CS-XZ15AKUAW
• Rated cooling capacity of 14,700 BTU/h
• Cooling capacity range of 3,300–19,300 BTU/h
• Rated heating capacity of 17,200 BTU/h
• Heating capacity range of 3,300–25,200 BTU/h
• Cold-climate heating operation down to -15°F (-26°C)
• Inverter-driven hermetic rotary compressor
• Brushless 6-pole compressor motor
• R32 refrigerant
• ENERGY STAR® Cold Climate Certified system
• 208–230V single-phase, 60Hz power supply
• Designed for ductless heating and cooling applications

Specifications

• Brand: Panasonic
• Series: ClimaPure XZ
• Model: CU-XZ15AKUAC
• System: XZ15AKUA
• Product Type: Ductless Mini-Split Outdoor Unit
• Compatible Indoor Unit: CS-XZ15AKUAW
• System Type: Single-Split Heat Pump
• Cooling Capacity: 14,700 BTU/h rated
• Cooling Capacity Range: 3,300–19,300 BTU/h
• Heating Capacity: 17,200 BTU/h rated
• Heating Capacity Range: 3,300–25,200 BTU/h
• Cooling Capacity: 4.30 kW
• Heating Capacity: 5.04 kW
• Power Supply: 208–230V, 1 Phase, 60Hz
• Refrigerant: R32
• Compressor Type: Inverter-driven hermetic rotary
• Compressor Motor: Brushless, 6-pole
• Compressor Output: 900 W
• Maximum Current: 10.3 A
• Maximum Input Power: 2,400 W
• Starting Current: 6.0 A
• Outdoor Unit Dimensions: 27-5/8" H x 34-15/32" W x 12-5/8" D
• Outdoor Unit Dimensions: 701 x 875 x 320 mm
• Outdoor Unit Weight: 93 lbs (42 kg)

Performance Attributes

• SEER2: 22.40
• EER2: 13.35
• HSPF2 Region 4: 12.00
• HSPF2 Region 5: 8.90
• COP: 4.10
• Cooling Capacity – Min / Rated / Max: 3,300 / 14,700 / 19,300 BTU/h
• Heating Capacity – Min / Rated / Max: 3,300 / 17,200 / 25,200 BTU/h
• Cooling Power Input – Min / Rated / Max: 0.24 / 1.10 / 1.90 kW
• Heating Power Input – Min / Rated / Max: 0.20 / 1.23 / 2.40 kW
• Heating Capacity at 17°F: 17,500 BTU/h
• Maximum Heating Capacity at 5°F: 15,300 BTU/h
• Cooling Amps at 208V: 5.40 A
• Cooling Amps at 230V: 4.90 A
• Heating Amps at 208V: 6.00 A
• Heating Amps at 230V: 5.40 A

Noise Attributes

• Outdoor Noise – Cooling: 50 dB-A
• Outdoor Noise – Heating: 50 dB-A
• Outdoor Sound Power Level – Cooling: 65 dB
• Outdoor Sound Power Level – Heating: 65 dB

System Attributes

• Outdoor Unit: CU-XZ15AKUAC
• Installation Type: Ductless
• Operation: Heating and Cooling
• Cold Climate Heating: Down to -15°F (-26°C)
• Refrigerant Type: R32
• Power Supply: 208–230V / 1 Phase / 60Hz
• Energy Certification: ENERGY STAR® Cold Climate Certified
• Rating Standard: AHRI 210/240
