Product Description

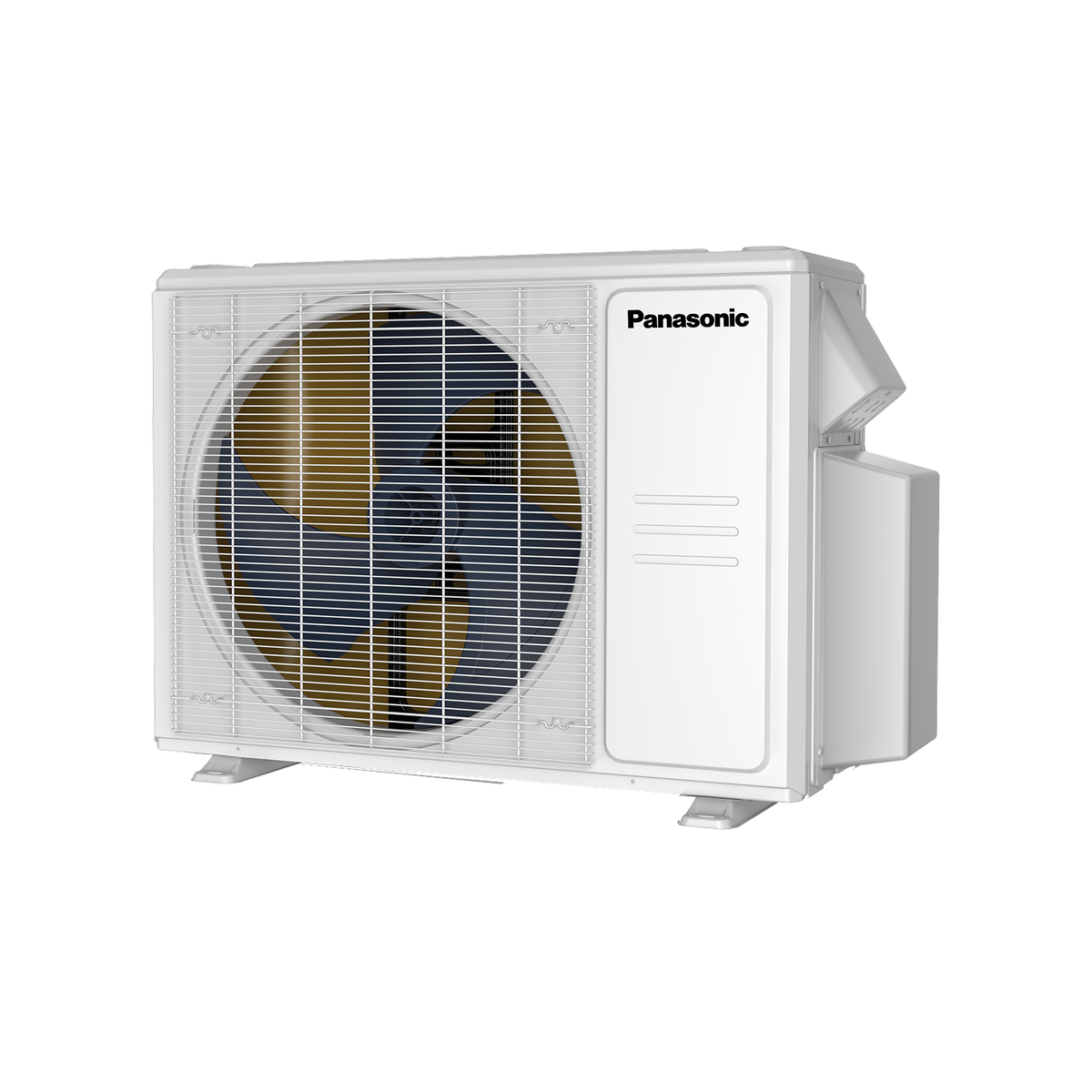

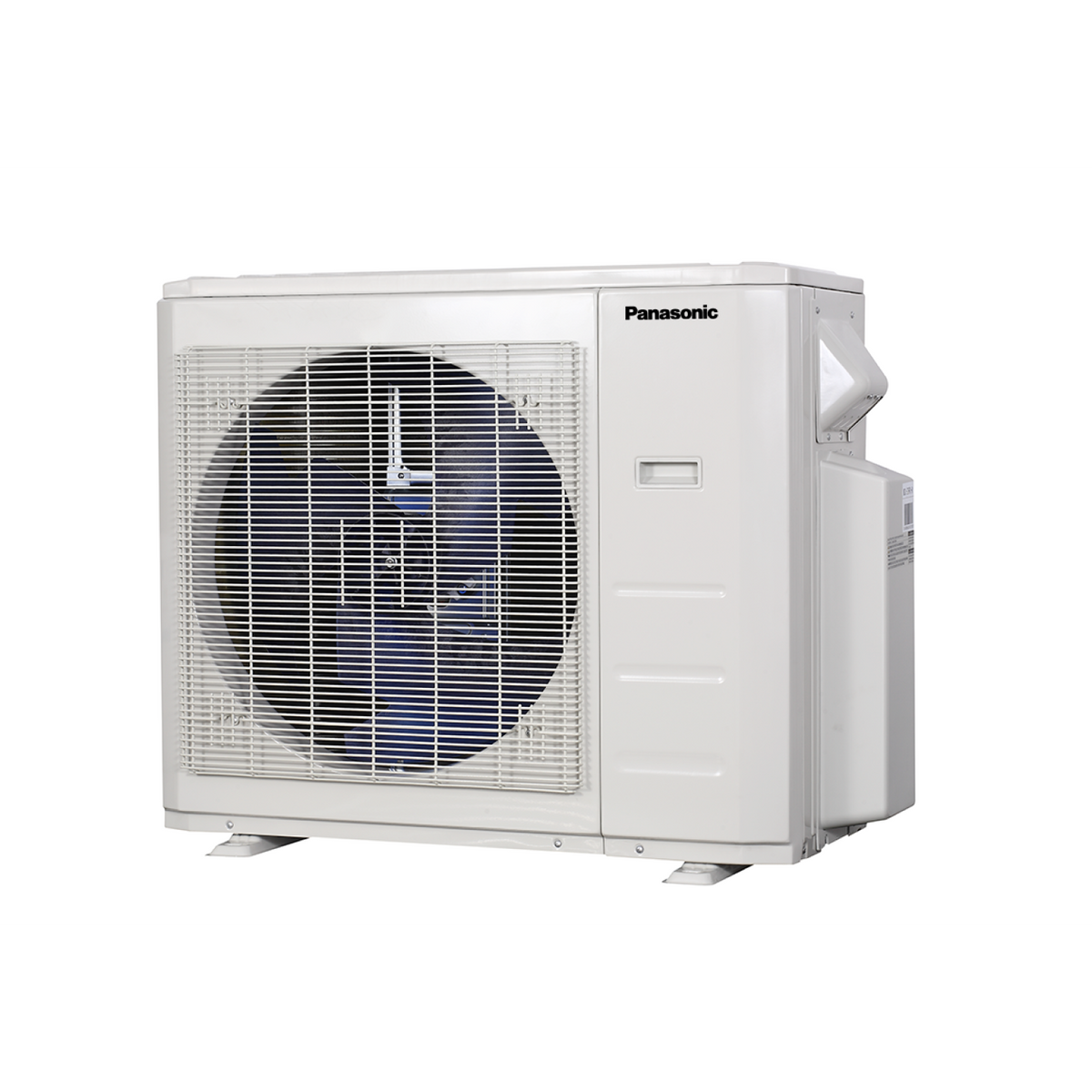

The Panasonic Project Series CU-YM24CBUC is a 24,000 BTU outdoor inverter heat pump condenser designed for efficient heating and cooling in residential, multi-family, retrofit, and light commercial applications. It uses R454B refrigerant and supports cold-climate heating operation down to -13°F (-25°C). The condenser is compatible with Panasonic Project Series 24K indoor units and can be used in single-zone or compatible multi-zone configurations.
Key Features
- 24,000 BTU outdoor inverter heat pump condenser
- Suitable for single-zone and compatible multi-zone configurations
- Designed for residential, multi-family, retrofit, and light commercial applications
- Inverter heat pump technology
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- ENERGY STAR Cold Climate certified
- Base pan heater included
- Compact outdoor installation design
Performance Specifications
- Outdoor Unit Model: CU-YM24CBUC
- Capacity Class: 24,000 BTU
- Cooling Capacity: 24,000 BTU/h
- Cooling Capacity Range: 9,700–27,000 BTU/h
- Cooling Capacity: 7.03 kW
- Heating Capacity: 25,000 BTU/h
- Heating Capacity Range: 11,300–32,700 BTU/h
- Heating Capacity: 7.33 kW
- Moisture Removal: 5.7 pints/h (2.7 L/h)
- Outdoor Airflow at Turbo: 759 CFM
Efficiency Ratings
- SEER2: 23.5
- EER2: 13.0
- HSPF2 Region IV: 10.0
- HSPF2 Region V: 7.7
Electrical Specifications
- Power Supply: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Cooling Power Input: 1,846 W
- Heating Power Input: 2,379 W
- System Type: Inverter Heat Pump
Outdoor Unit Specifications
- Model: CU-YM24CBUC
- Unit Type: Outdoor Heat Pump Condenser
- Capacity Class: 24,000 BTU
- Outdoor Dimensions (H x W x D): 31-7/8 x 37-1/4 x 16-1/8 in
- Outdoor Dimensions (H x W x D): 810 x 946 x 410 mm
- Outdoor Unit Weight: 122.13 lb (55.4 kg)
- Outdoor Airflow at Turbo: 759 CFM
Refrigerant & Cold Climate Operation
- Refrigerant Type: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
- Base Pan Heater: Included
- Low-GWP Refrigerant: R454B
Applications
- Residential heating and cooling
- Single-family homes
- Multi-family housing
- Retrofit projects
- Light commercial applications
- Single-zone installations
- Compatible multi-zone installations
System Information
- Outdoor Unit: CU-YM24CBUC
- System Capacity: 24,000 BTU class
- Refrigerant: R454B
- System Type: Inverter Heat Pump
- Installation: Outdoor Condenser
- Cold Climate Heating: Yes
- ENERGY STAR Cold Climate: Yes
