Product Description

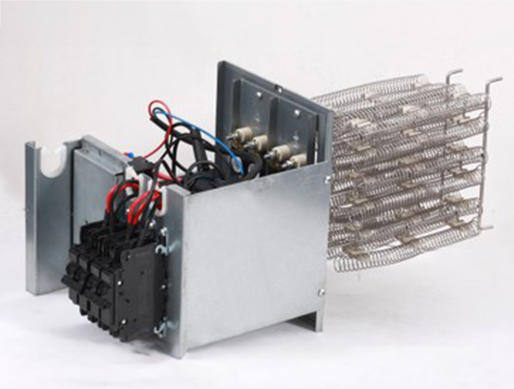

The Panasonic CZ-FM03P is a 3 kW auxiliary electric heater kit designed for compatible Panasonic INTERIOS R454B central heat pump systems. It provides supplemental electric heating to help meet heating demand when additional heat is needed. The kit is designed for integration with compatible air handlers and supports 208/230V single-phase electrical operation.
Key Features
- 3 kW auxiliary electric heater kit
- Designed for compatible Panasonic INTERIOS R454B central heat pump systems
- Provides supplemental heating alongside the heat pump
- 208/230V, single-phase, 60Hz electrical operation
- Compact heater assembly for compatible air handler installation
- Part of Panasonic's auxiliary heater lineup
Specifications
- Brand: Panasonic
- Model / SKU: CZ-FM03P
- Product Type: Auxiliary Electric Heater Kit
- Nominal Heater Class: 3 kW
- Heat Output at 208V: 2.25 kW
- Heat Output at 230V: 2.75 kW
- Operating Voltage: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Current at 208V: 10.8 A
- Current at 230V: 12 A
- Minimum Circuit Ampacity (MCA): 14 A at 208V / 16 A at 230V
- Maximum Fuse: 15 A at 208V / 20 A at 230V
Dimensions and Weight
- Heater Dimensions: 21.06 x 10.16 x 8.03 in
- Heater Dimensions: 535 x 258 x 204 mm
- Net Weight: 5.3 lb (2.6 kg)
- Package Dimensions: 24.02 x 14.37 x 10.24 in
- Package Dimensions: 610 x 365 x 260 mm
- Gross Weight: 11.24 lb (5.1 kg)
Compatibility and Application
- Designed for compatible Panasonic INTERIOS R454B central heat pump air handlers
- Application: Supplemental electric heating for central ducted HVAC systems
- Confirm air handler compatibility and electrical requirements before installation
