Product Description

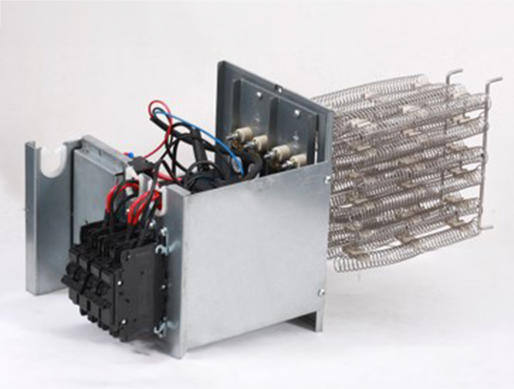

The Panasonic CZ-FM08P is an 8 kW auxiliary electric heater kit designed for compatible Panasonic INTERIOS R454B central heat pump systems. It provides supplemental electric heating when additional heat is required and can be integrated with compatible central heat pump air handlers. The heater operates on 208/230V single-phase power and is designed specifically for Panasonic's R454B central heat pump platform.
Key Features
- 8 kW auxiliary electric heater kit
- Designed for Panasonic R454B Central Heat Pump Systems
- Provides supplemental electric heat alongside the heat pump
- 208/230V single-phase, 60Hz operation
- Compact heater assembly for compatible air handlers
- Compatible with Panasonic INTERIOS central heat pump systems
- Can be controlled as auxiliary heat through the central heat pump system
Specifications
- Brand: Panasonic
- Model / SKU: CZ-FM08P
- Product Type: Auxiliary Electric Heater Kit
- Nominal Heater Class: 8 kW
- Operating Voltage: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Heat Power at 208V: 6.0 kW
- Heat Power at 230V: 7.35 kW
- Current at 208V: 28.8 A
- Current at 230V: 32 A
- Minimum Circuit Ampacity at 208V: 37 A
- Minimum Circuit Ampacity at 230V: 42 A
- Maximum Fuse at 208V: 40 A
- Maximum Fuse at 230V: 45 A
Dimensions and Weight
- Heater Dimensions: 21.06 x 10.16 x 8.03 in
- Heater Dimensions: 535 x 258 x 204 mm
- Net Weight: 6.7 lb (3.3 kg)
- Package Dimensions: 24.02 x 14.37 x 10.24 in
- Package Dimensions: 610 x 365 x 260 mm
- Gross Weight: 12.79 lb (5.8 kg)
Compatibility and Application
- Application: Supplemental electric heating for central ducted HVAC systems
- System Type: Panasonic INTERIOS R454B Central Heat Pump
- Designed for compatible Panasonic central heat pump air handlers
- Auxiliary heater can provide additional heat when required by system operation
- Compatible communication modes include Panasonic controller operation and third-party 24V thermostat operation on applicable central heat pump systems
Installation Notes
- Electrical installation must follow the specified voltage, MCA, maximum fuse, and applicable local electrical requirements.
- Confirm compatibility with the specific Panasonic air handler before installation.
- Professional HVAC installation is recommended.
