Product Description

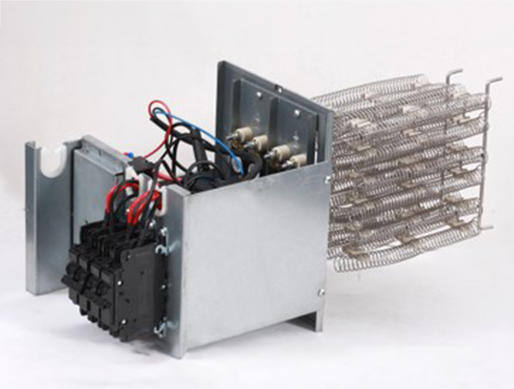

The Panasonic CZ-FM10P is a 10 kW class auxiliary electric heater kit designed for compatible Panasonic INTERIOS R454B central heat pump systems. It provides supplemental electric heat when additional heating capacity is required, allowing the heat pump and electric heater to work together for increased heating performance. The heater is designed for 208/230V single-phase operation and integrates with compatible central air handlers.
Key Features
- 10 kW class auxiliary electric heater
- Designed for Panasonic INTERIOS R454B central heat pump systems
- Provides supplemental electric heating when additional heat is required
- 208/230V single-phase, 60Hz operation
- Compatible with Panasonic central ducted heat pump systems
- Supports auxiliary heating through the system controller
- Designed for installation inside compatible air handler assemblies
Electrical Specifications
- Model: CZ-FM10P
- Product Type: Auxiliary Electric Heater Kit
- Nominal Heater Class: 10 kW
- Normal Operating Voltage: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Heat Power at 208V: 7.5 kW
- Heat Power at 230V: 9.2 kW
- Current at 208V: 36.1 A
- Current at 230V: 40 A
- Minimum Circuit Ampacity at 208V: 46 A
- Minimum Circuit Ampacity at 230V: 53 A
- Maximum Fuse at 208V: 50 A
- Maximum Fuse at 230V: 60 A
Dimensions and Weight
- Heater Dimensions: 21.06 x 10.16 x 8.03 in
- Heater Dimensions: 535 x 258 x 204 mm
- Net Weight: 6.3 lb (3.1 kg)
- Package Dimensions: 24.02 x 14.37 x 10.24 in
- Package Dimensions: 610 x 365 x 260 mm
- Gross Weight: 12.57 lb (5.7 kg)
Application
- Application: Supplemental electric heating for central ducted HVAC systems
- Refrigerant System: Panasonic INTERIOS R454B Central Heat Pump
- Control: Auxiliary heater activated by the compatible system controller as required
- Installation: Installed with compatible Panasonic central heat pump air handlers
Compatibility
- Designed for compatible Panasonic INTERIOS central heat pump air handlers
- Applicable to the Central Heat Pump System
- Supports Panasonic auxiliary heating system configurations
- Not intended for Panasonic A-Coil systems according to the INTERIOS system documentation
