Product Description

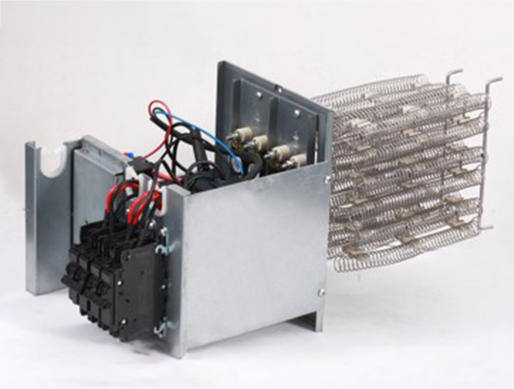

The Panasonic CZ-FM15P is a 15 kW auxiliary electric heater designed for compatible Panasonic INTERIOS R454B central heat pump systems. It provides supplemental electric heat when additional heating capacity is required and can be integrated with compatible 2–5 ton air handlers. The auxiliary heater works alongside the heat pump to provide fast supplemental heating when activated by the system controls.
Key Features
- 15 kW auxiliary electric heater
- Designed for Panasonic R454B central heat pump systems
- Compatible with 2–5 ton air handlers
- Provides supplemental electric heating alongside the heat pump
- 208/230V single-phase, 60Hz operation
- Dual-circuit electrical configuration
- Designed for integration with Panasonic INTERIOS central ducted heat pump systems
- Part of Panasonic's CZ-FM auxiliary heater series
Electrical Specifications
- Model: CZ-FM15P
- Nominal Heater Class: 15 kW
- Operating Voltage: 208/230V
- Phase: 1 Phase
- Frequency: 60Hz
- Current: 54.1 A at 208V / 60 A at 230V
- Heat Power at 208V: 11.25 kW
- Heat Power at 230V: 13.8 kW
- MCA Circuit 1: 23 A at 208V / 27 A at 230V
- Maximum Fuse Circuit 1: 25 A at 208V / 30 A at 230V
- MCA Circuit 2: 46 A at 208V / 53 A at 230V
- Maximum Fuse Circuit 2: 50 A at 208V / 60 A at 230V
Dimensions and Weight
- Heater Dimensions: 21.06 x 10.16 x 8.03 in
- Heater Dimensions: 535 x 258 x 204 mm
- Net Weight: 8.3 lb (4.1 kg)
- Package Dimensions: 24.02 x 14.37 x 10.24 in
- Package Dimensions: 610 x 365 x 260 mm
- Gross Weight: 14.77 lb (6.7 kg)
Compatibility
- Compatible Air Handler Capacity: 2–5 ton
- System Type: R454B Central Heat Pump System
- Application: Supplemental electric heating for central ducted HVAC systems
- Designed for compatible Panasonic INTERIOS central heat pump air handlers
Auxiliary Heating System
The CZ-FM15P can be added to a Panasonic INTERIOS Central Heat Pump System to provide supplemental electric heating. Panasonic's system controls can activate the auxiliary heater as required, allowing the heat pump and electric heater to work together according to heating demand and system settings.
Product Details
- Brand: Panasonic
- Series: CZ-FM Auxiliary Heater
- SKU: CZ-FM15P
- Product Type: Auxiliary Electric Heater Kit
- Refrigerant System Compatibility: R454B Central Heat Pump Systems
- Nominal Heater Capacity: 15 kW
