Product Description

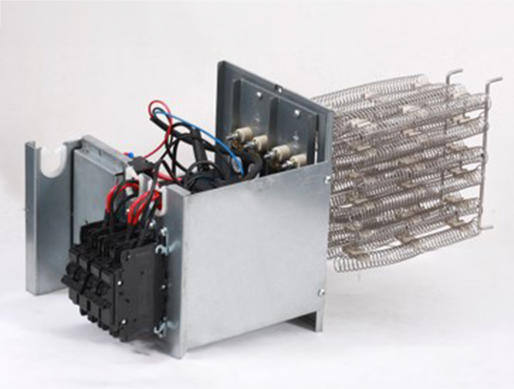

The Panasonic CZ-FM20P is a 20 kW auxiliary electric heater kit designed for compatible Panasonic INTERIOS R454B central heat pump systems. It provides supplemental electric heating when additional heat is required and can operate together with the heat pump system. The heater is designed for compatible 2- to 5-ton air handlers and uses a 208/230V single-phase electrical supply.
Key Features
- 20 kW auxiliary electric heater kit
- Designed for Panasonic INTERIOS R454B central heat pump systems
- Compatible with 2- to 5-ton air handlers
- Provides supplemental electric heat when additional heating capacity is required
- 208/230V single-phase, 60Hz operation
- Dual-circuit electrical configuration
- Compact heater assembly designed for installation inside compatible air handlers
Specifications
- Brand: Panasonic
- Model / SKU: CZ-FM20P
- Product Type: Auxiliary Electric Heater Kit
- Nominal Heater Class: 20 kW
- Operating Voltage: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Heat Power at 208V: 15 kW
- Heat Power at 230V: 18.4 kW
- Total Current at 208V: 72.1 A
- Total Current at 230V: 80 A
Electrical Specifications
- Minimum Circuit Ampacity – Circuit 1: 46 A at 208V / 53 A at 230V
- Maximum Fuse – Circuit 1: 50 A at 208V / 60 A at 230V
- Minimum Circuit Ampacity – Circuit 2: 46 A at 208V / 53 A at 230V
- Maximum Fuse – Circuit 2: 50 A at 208V / 60 A at 230V
- Electrical Configuration: Two separate heater circuits
Dimensions and Weight
- Heater Dimensions: 21.06 x 10.16 x 8.03 in
- Heater Dimensions: 535 x 258 x 204 mm
- Net Weight: 9.3 lb (4.6 kg)
- Package Dimensions: 24.02 x 14.37 x 10.24 in
- Package Dimensions: 610 x 365 x 260 mm
- Gross Weight: 15.65 lb (7.1 kg)
Compatibility and Application
- System Type: Panasonic INTERIOS R454B Central Heat Pump System
- Compatible Air Handler Range: 2 to 5 tons
- Application: Supplemental electric heating for central ducted HVAC systems
- Designed for use with compatible Panasonic central heat pump air handlers
- Confirm the specific air-handler compatibility and electrical requirements before installation
Auxiliary Heating System
The CZ-FM20P is part of Panasonic's INTERIOS auxiliary heater lineup. Panasonic lists auxiliary heater options from 3 kW through 25 kW, allowing the appropriate supplemental heating capacity to be selected for the central heat pump system.
