age_group:
18+
category:
Mini-Split
country_of_origin:
USA
gender:
Unisex
manufacturer:
Panasonic Products
mpn:
CZ-RD517C
subcategory:
Wired Remote Control Panel
type:
Wired Remote Control Panel
Product Description

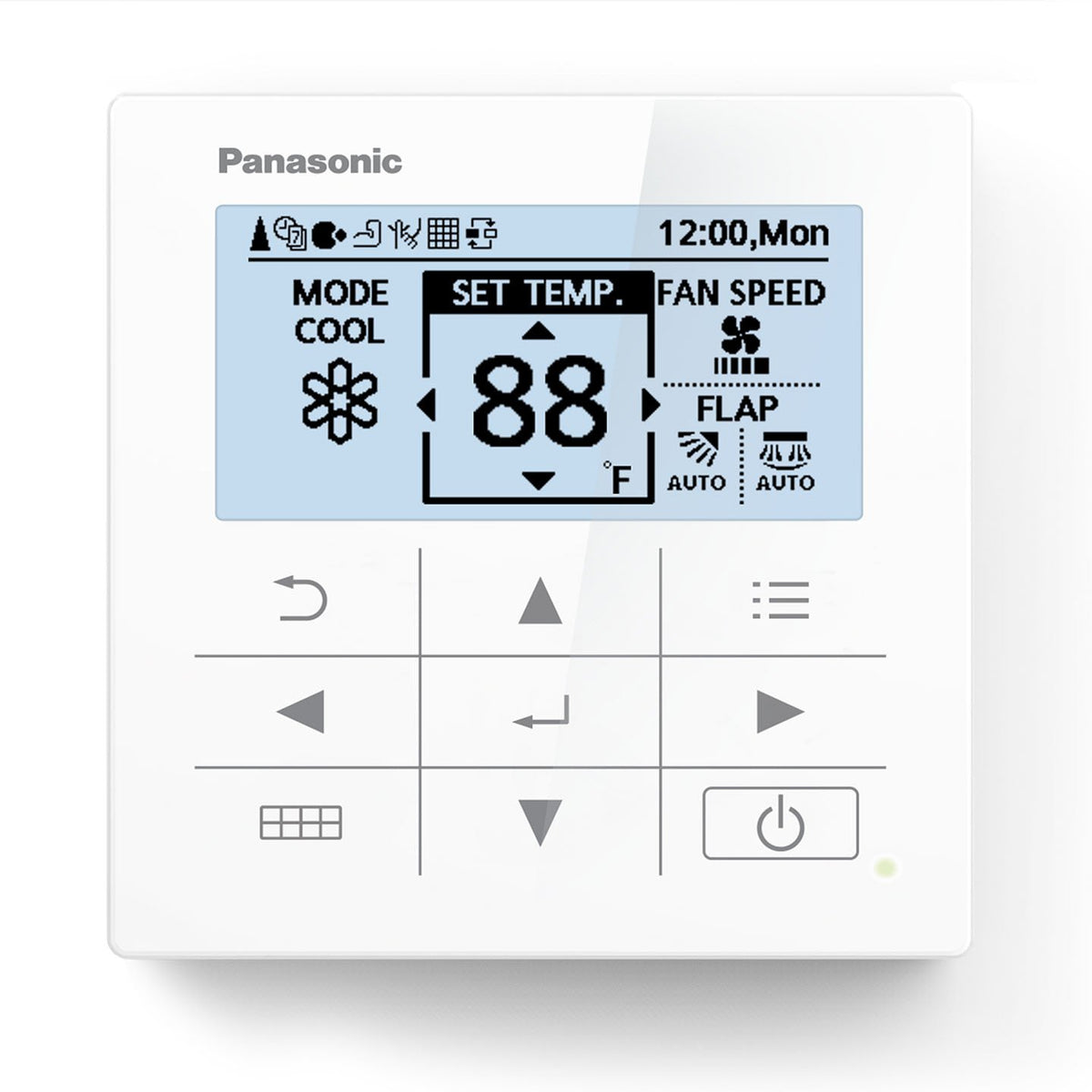

The Panasonic CZ-RD517C is a wired remote control panel designed to operate compatible Panasonic mini-split heat pump systems. It provides convenient control of operating mode, temperature, fan speed, airflow direction, and advanced comfort functions directly from a wall-mounted controller.
The CZ-RD517C supports Auto, Heat, Cool, Fan, and Dry operating modes, along with Quiet and Powerful modes. It features a backlit display with adjustable LED intensity, a weekly timer, remote control lock, filter check notification, and diagnostic functions. The controller is also compatible with the Panasonic Comfort Cloud App and nanoe™ X systems.
Key Features
- Wired Remote Control: Provides convenient wired control of compatible Panasonic heat pump systems.
- Multi-Zone Compatibility: Designed for use with compatible CS-MXZ/XZ/Z__AKUAW indoor units.
- Multiple Operating Modes: Supports Auto, Heat, Cool, Fan, and Dry modes.
- Powerful Mode: Provides enhanced operation when increased heating or cooling performance is desired.
- Quiet Mode: Enables quieter system operation for improved comfort.
- Five Fan Speeds: Select from QLow, Low, Medium, High, and SHigh fan speeds.
- Weekly Timer: Allows scheduled operation using weekly, day, hour, and minute settings.
- Backlit Display: Features a backlit display with adjustable brightness.
- Dimmable LED Indicators: LED indicators can be adjusted for convenient nighttime operation.
- Remote Control Lock: Helps prevent unintended changes to system settings.
- Filter Check Notification: Provides a notification when filter maintenance is required and supports filter notification reset.
- Diagnostic Function: Provides system diagnostic information for troubleshooting.
- nanoe™ X Compatible: Supports operation with compatible Panasonic nanoe™ X-equipped systems.
- Comfort Cloud Compatible: Compatible with the Panasonic Comfort Cloud App.
Specifications
- Model: CZ-RD517C
- Product Type: Wired Remote Control Panel
- Controller Type: Wired
- Operating Modes: Auto / Heat / Cool / Fan / Dry
- Additional Operation Modes: Powerful / Quiet
- Fan Speeds: QLow / Low / Medium / High / SHigh
- nanoe™ X Compatible: Yes
- Timer / Clock Function: Weekly / Day / Hour / Minutes
- Backlit Display: Yes, Adjustable
- LED Indicators: Yes, Dimmable
- Filter Check: Yes, Notification and Reset
- Controller Lock: Yes
- Comfort Cloud App Compatible: Yes
Dimensions
- Height: 4-23/32 in (120 mm)
- Width: 4-23/32 in (120 mm)
- Depth: 21/32 in (16.5 mm)
Installation & Accessories
- Remote Controller Cable: Included
- Cable Length: 9.9 m
- Installation: Wall-mounted or embedded installation
- Outlet Box: Compatible with JIS C 8336 medium-size square outlet box for embedded cable installation
- Installation Screws: Included
- Remote Controller Cable Holder: Included
Compatible Systems
- Compatible with Panasonic multi-zone indoor units in the CS-MXZ/XZ/Z__AKUAW series as specified by Panasonic.
- Designed for compatible Panasonic mini-split heat pump systems.
Package Contents
- 1 x CZ-RD517C Wired Remote Controller
- 1 x Remote Controller Cable, 9.9 m
- Installation screws and mounting accessories
- Remote controller cable holder
