category:
LED Headlights
height:
7 Inch
length:
7 Inch
manufacturer:
Peterson
mpn:
V701C
voltage:
32
weight:
2.8
width:
3.9 Inch
Product Description
Peterson - V701C
Features- LED.
- Available in retail-friendly Viz Pack.
- Assembled in USA.
- Multivolt version available.
- Voltage Regulated.
- 1100 / 1650 lumen output (low / high beam).
- Wider, more even pattern than halogen bulbs.
- Designed to last many times longer than a traditional sealed beam.
- Multivolt design is compatible with both 12V and 24V systems.
- Low power consumption; draws only 0.7–1.9 amps.
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- Meets applicable SAE standards.
- Drop-in LED replacement for all PAR56 7-inch standard headlights, including popular H6014, H5024 and H6024 halogen sealed beams.
- 5400k?6400k color temperature closely matches natural daylight.
- UV- and impact-resistant, hard-coated polycarbonate lens
- Standard H4 3-blade terminals integrated directly into the heavy-duty cast alloy rear housing.
- Requires 701-491 anti-flicker harness for use on CANBUS-equipped vehicles, including ’07 and newer Jeep Wrangler.
- Does not function as a daytime running light (DRL).
- V701KC-2 Kit includes two 701C headlights two 701-491 anti-flicker harnesses.
- See ECE version on Peterson Master Catalog page 158 for markets with left-hand traffic.
- IP66 ingress rating.
Additional Information
Average Current Draw 1.66 Ampere
Brightness 1650 Lumens
Bulb Technology Led
Bulb/Diode Count 2
California Proposition 65 Warning: Cancer And/Or Reproductive Harm - Www.P65Warnings.Ca.Gov
Color Temperature 5400 - 6400K
Container Type Viz Pack

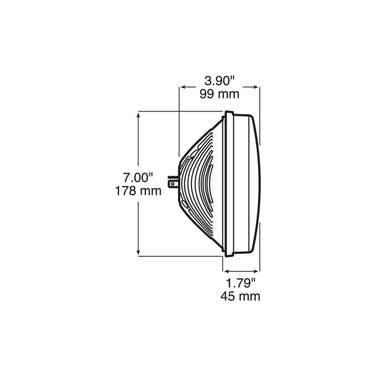

Diameter 7 Inch
Family Pm
Height 7 Inch
Length 7 Inch
Lens Color Clear
Light Color White
Maximum Amperage Draw 1.992 Ampere
Maximum Voltage 32 Volts
Minimum Voltage 9 Volts
Multi-Volt Y
Regulatory Compliance Dot
Shape Round
Termination H4
Voltage 12V / 24V
Width 3.9 Inch
