category:
LED Headlights

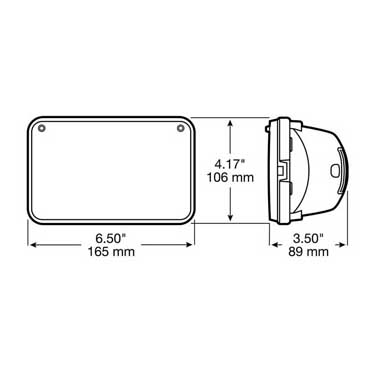

height:
4.17 Inch
length:
6.5 Inch
manufacturer:
Peterson
mpn:
V702C
voltage:
32
weight:
2.35
width:
3.5 Inch
Product Description
Peterson - V702C
Features- LED.
- Physical and electrical compatibility does not guarantee legal compliance in OE or retrofit applications. Refer to vehicle manufacturer, government standards, and SAE documentation regarding requirements and aiming requirements.
- 702C low-beam function headlight is designed only for use in integrated 4-lamp system. It is not designed or sold as a dual function (high/low beam) replacement headlight. Federal law requires horizontal adjustment be disabled for 702C.
- Hardwired design.
- Multivolt version available.
- Voltage Regulated.
- 702C is an SAE Type 2A1 low beam w/ 4-diode, single-chip assembly.
- 703C is an SAE Type 1A1 high beam w/ 6 diodes.
- Greater vibration shock resistance for longest available service life.
- Multivolt design is compatible with both 12V and 24V systems.
- Heavy-duty polycarbonate/cast alloy housing.
- UV impact resistant, hard-coated polycarbonate lens.
- Vacuum metallized reflector.
- 800 (702C) 1000 (703C) source lumens.
- Low power draw: 10.25 watts (702C) 17 watts (703C).
- DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
- 5200k ?6000k (702C) 5200k ?6300k (703C) color temperature.
- 3.5”, 18 gauge, hardwired leads terminated w/ standard H4 terminals.
- IP66 ingress rating.
Additional Information
Bulb Technology Led
Bulb/Diode Count 1
California Proposition 65 Warning: Cancer And/Or Reproductive Harm - Www.P65Warnings.Ca.Gov
Color Temperature 5200 - 6000K
Container Type Display Box
Family Pm
Height 4.17 Inch
Length 6.5 Inch
Lens Color Clear
Light Color White
Maximum Voltage 32 Volts
Minimum Voltage 9 Volts
Multi-Volt Y
Regulatory Compliance Dot
Shape Rectangular
Termination H4
Voltage 12V / 24V
Width 3.5 Inch
