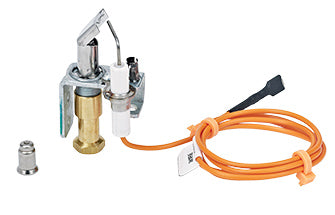

Robertshaw 1830-700 Pilot Series 1830-705

The 1830-700 Series Pilot Uni-Kits are designed for use with the OEM-style Pilot Ignition systems. The electrode is permanently riveted to the pilot frame and the spark gap is fixed at 1/8. These pilots can be used to replace existing pilot assemblies or for retrofitting standing pilot applications when an exact replacement is desired. Each Uni-Kit comes with a natural gas orifice installed and a separate L.P. gas orifice. Pilot tubing size is 1/4".

Features and Benefits:

• Many flame pattern types available
• Thermocouple or thermopile options
• Spark electrode available
• Horizontal or vertical gas inlet
• Several mounting bracket types available
• Aerated pilots with non-linting characteristics
