category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
35-630501-001
subcategory:
Controls
Product Description

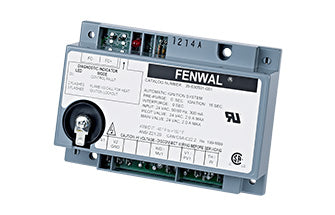

Robertshaw - 35-630501-001 The Fenwal 35 Series Pilot Controls are a 24V AC intermittent pilot ignition control. The microprocessor circuit design provides precise, repeatable timing and operating sequences. The on-board diagnostics with LED output provide assistance with troubleshooting to ensure safe and efficient operation.
Features and Benefits
- Quick connect terminals for easy connection
- Easy-to-install with complete in-depth installation instructions
- Pilot valve draws 2.0 Amps maximum
- Main valve draws 2.0 Amps maximum
- Gray enclosure (Noryl N-190) of fire retardant plastic
- Reduces truck stock inventory, saving space and money
Additional Information
Additional Information
Series Application35-63 Series, 24 Volt Intermittent Pilot Ignition
Electrical Rating24V AC 300 mA
Connection TypeQuick Connect Terminals
Flame Sensor MethodRemote
ConstructionGray Noryl
Ignition Attempts Before Lockout1
Trial for Ignition15
Gas Valve Rating2.0 Amps @ 24V AC
Pre-Purge0 seconds
Auto ResetNo
Control Voltage18-30V AC 50/60 Hz
Inter-Purge0 seconds
