category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
35-655801-013
subcategory:
Controls
Product Description

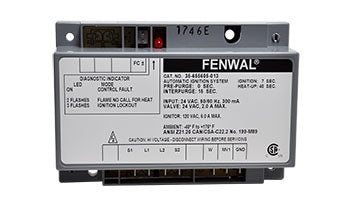

Robertshaw - 35-655801-013 The Fenwal 35 Series Hot Surface Controls are designed to perform many gas-fired 24V AC appliance functions in a single control, resulting in lower system costs. This series monitors the demand for heat, ignites and maintains the flame during heating, and provides diagnostic support. The on-board diagnostics with LED output provide assistance with troubleshooting and ensures safe and efficient burner operation. The microprocessor circuit design provides precise, repeatable timing sequences for ignition and pre-purge and inter-purge times, as well as multiple tries for ignition.
Features and Benefits
- Edge connector type for easy connection
- Easy-to-install with complete in-depth installation instructions
- Gray enclosure (Noryl N-190) of fire retardant plastic
- Reduces truck stock inventory, saving space and money
Additional Information
Additional Information
Series Application35-65 Series, 24 Volt Hot Surface Ignition 120/240
Electrical Rating24V AC|120V AC (L1 and L2 only)|240V AC (L1 and L2 only)300 mA
Connection TypeEdge Connector
Flame Sensor MethodLocal / Remote
ConstructionGray Noryl
Ignition Attempts Before Lockout3
Trial for Ignition7
Gas Valve Rating2.0 Amps @ 24V AC
Pre-Purge0 seconds
Auto RestartYes
Control Voltage18-30V AC 50/60 Hz
Inter-Purge15 seconds
Hot Surface Ignitor40 second Heat Up, 120/240V AC, 5 Amps Max
Ignitor - 120/240V AC40 Sec. Heat Up
