category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
35-655921-001
subcategory:
Controls
Product Description

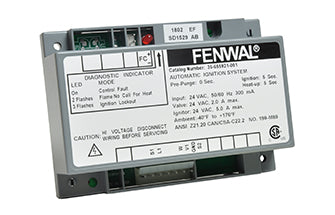

Robertshaw - 35-655921-001 The Fenwal 35 Series Hot Surface Controls are designed to perform many gas-fired 24V AC appliance functions in a single control, resulting in lower system costs. This series monitors the demand for heat, ignites and maintains the flame during heating, and provides diagnostic support. The on-board diagnostics with LED output provide assistance with troubleshooting and ensures safe and efficient burner operation. The microprocessor circuit design provides precise, repeatable timing sequences for ignition and pre-purge and inter-purge times, as well as multiple tries for ignition.
Additional Information
Electrical Rating24V AC|120V AC (L1 and L2 only)|240V AC (L1 and L2 only) 300 mA
Connection TypeEdge Connector
Flame Sensor MethodLocal / Remote
Ignition Attempts Before Lockout1
Trial for Ignition4
Gas Valve Rating2.0 Amps @ 24V AC
Auto ResetNo
Control Voltage18-30V AC 50/60 Hz
Hot Surface Ignitor40 second Heat Up, 120/240V AC, 5 Amps Max
Ignitor - 120/240V AC40 Sec. Heat Up
