category:
Heating Components
manufacturer:
Robertshaw
mpn:
700-064
subcategory:
Gas Valves And Regulators
Product Description

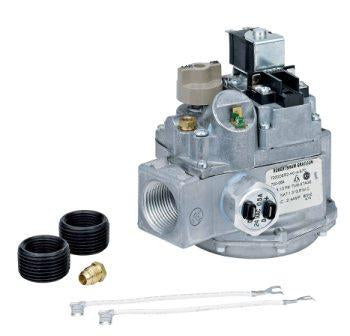

Robertshaw - 700-064 700 Series - 2-Stage 24 Volt
The Robertshaw 2-Stage 24 Volt Gas Valves - standing pilot as well as intermittent pilot models - feature reliability, performance, flexibility and easy installation all in one compact control. These valves feature a manual valve (gas cock), inlet/outlet screens, pilot gas filter, and pilot adjustment key. Models have a slotted automatic pilot safety magnet to provide gas shut-off in case of a pilot outage.
Features and Benefits:
- Pilot outlet 1/4 tubing
- Terminal type 1/4 quick-connect
- Ambient temperature of -40°F to 175°F
- Maximum inlet pressure 14 WC (0.5 PSI)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
- RoHS compliant
Additional Information
Additional Information
Series ApplicationUniversal 2-Stage 24 Volt Gas Valve
Electrical Rating24V AC @ 50/60 Hz, 0.2 Amps low-fire, 0.4 Amps high-fire
CommentsHas slow opening feature for soft ignition. Can be field removed
Factory Part Number7000 DER2-HC-4-S7C
Gas TypeNatural
Pressure Regulation1.3 WC low-fire, 3.5 WC high-fire for Natural Gas, 2.8 WC low-fire, 11.0 WC high-fire for LP
Capacity720,000 BTU
Reducer Bushing (NPT)2
Inlet Size1"
Outlet Size1"
