category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
700-454
subcategory:
Gas Valves And Regulators
Product Description

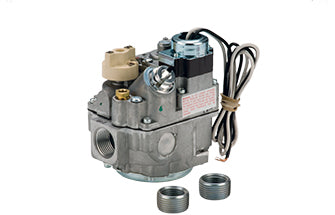

Robertshaw - 700-454 700 Series - Line Voltage
The Robertshaw 700 Series Line Voltage Gas Valves offerthe same replacement flexibility as the 24 Volt combination controls. Line Voltage models are available in 120 and 240Volts AC. Features include three-position outlets,multi-positional capability and capacities ranging up to
720,000 BTU.
Features and Benefits
- Slotted safety magnet
- Gas cock dial marking Off - Pilot - On
- Ambient temperature of -40°F to 175°F
- Pilot outlet 1/4‚¬ tubing
- Cover type for conduit connection
- Inlet filtered screen
- RoHS compliant
Additional Information
Additional Information
Series ApplicationMillivolt Diaphragm/Solenoid Gas Valve
Electrical Rating120V AC @ 0.034 Amps, 50/60 Hz|240V AC @ 0.017 Amps, 50/60 Hz
Lead Length32"
Factory Part Number7000BER-120
Pressure Regulation3.5" WC Natural Gas
Capacity300,000 BTU
Reducer Bushing (NPT)(2) 3/4" x 1/2"
Inlet Size3/4"
Outlet Size3/4"
3 Position Outlet Straight-Thru (FPT)3/4"
3 Position Outlet Side (FPT) with PlugsStraight-Thru
Side OutletsStraight-Thru
