category:
Heating Components
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
720-079
subcategory:
Gas Valves And Regulators

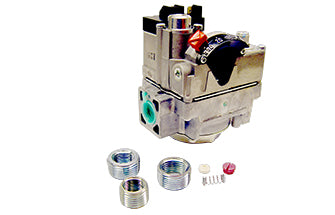

The Robertshaw 720 Series Lever Actuated Gas Valves are designed for intermittent pilot ignition applications. This series incorporates a manual valve, pilot valve, dual automatic valves(2), and a main gas pressure regulator. Uni-Kit models are factory set at 3.5‚¬ WC for natural gas, but can be convertedto LP by installing the regulator conversion kit included. The 720 Series is designed for many residential applications such as central heating units, space heaters, wall heaters, boilers,and mobile home furnaces. This valve has a compact swing radius of only 3-9/16‚¬ to enable it to fit a wide range of OEMreplacement applications.
Features and Benefits
- Pilot outlet 1/4‚¬ tubing
- 1/4‚¬ quick connect terminal type
- Ambient temperature of -40°F to 175°F
- Maximum inlet pressure 14‚¬ WC (0.5 PSI)
- Standard NEMA terminals
- Rated as NEC Class 2
- Inlet filtered screen
- Various gas types: natural, manufactured, mixed, LP, andLP/air mixtures
- RoHS compliant
Additional Information
Additional Information
Series ApplicationUniversal Models-Intermittent Pilot, Direct Spark and Hot Surface
Electrical Rating24V AC @ 45 Amps, 50/60 Hz, 5 Watts
Factory Part Number7200IPER
Pressure RegulationUni-Kit
Capacity150,000 BTU
Inlet Size1/2"
Pilot1/4" tubing
Outlet Size3/4"
Maximum Inlet Pressure1/2" PSI
