Robertshaw

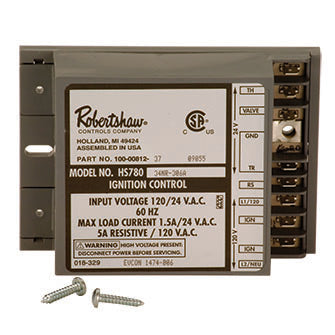

Robertshaw 780 Series Ignition Controls 780-787

Robertshaw 780 Series Ignition Controls 780-787

Dropship

SKU SKU:kpi026-780-787

Regular price $485.64 USD
Regular price Sale price $485.64 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Heating Components
country_of_origin: US
manufacturer: Robertshaw
mpn: 780-787
subcategory: Controls

The Robertshaw 780 Series Hot Surface Controls are designed for use on gas fired systems. The system acts on a demand for heat by a switch or thermostat to supply power to the ignition control. On non pre-purge models, the ignitor will be energized immediately and remain on for either of two optional selected ignitor heat-up times: approximately 17 or 34 seconds. For models with the prepurge option, there is a time delay equal to the heat-up time selected before the ignitor is energized. At the end of the ignitor heat-up time, the gas valve is opened supplying gas to the main burner. After several seconds, the ignitor is turned off and the sensor is energized. As long as flame is sensed, the system continues to operate.

Features and Benefits

  • Reduces truck stock inventory, saving space and money
  • Easy-to-install with complete in-depth installation instructions
  • Molded-in terminal barriers between terminals
  • Models available for local and remote sense application
  • Mounting screw provides a positive ground connection
  • Small compact size provides no hassle installation
  • Main valve current is 1.5 Amps at 24V AC
  • 95% relative humidity noncondensing at 104°F

Additional Information

Additional Information

Series Application780 Series, Hot Surface Ignition
Electrical Rating1.5 Amps
Temperature Range-40°F to 176°F
Sensor TypeRemote
Flame Sensor MethodRemote
Ignition Attempts Before Lockout3
Pre-PurgeNA
Thermostat Anticipator Setting0.1 Amps
Valve Trial Time6 seconds
Maximum Ignitor Current5 Amps
Supply Voltage120V AC
Pre-Purge/Ignitor Warm-Up Timer34 seconds
