category:
Air Conditioning
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
802
subcategory:
Thermostats & Thermopiles
Product Description

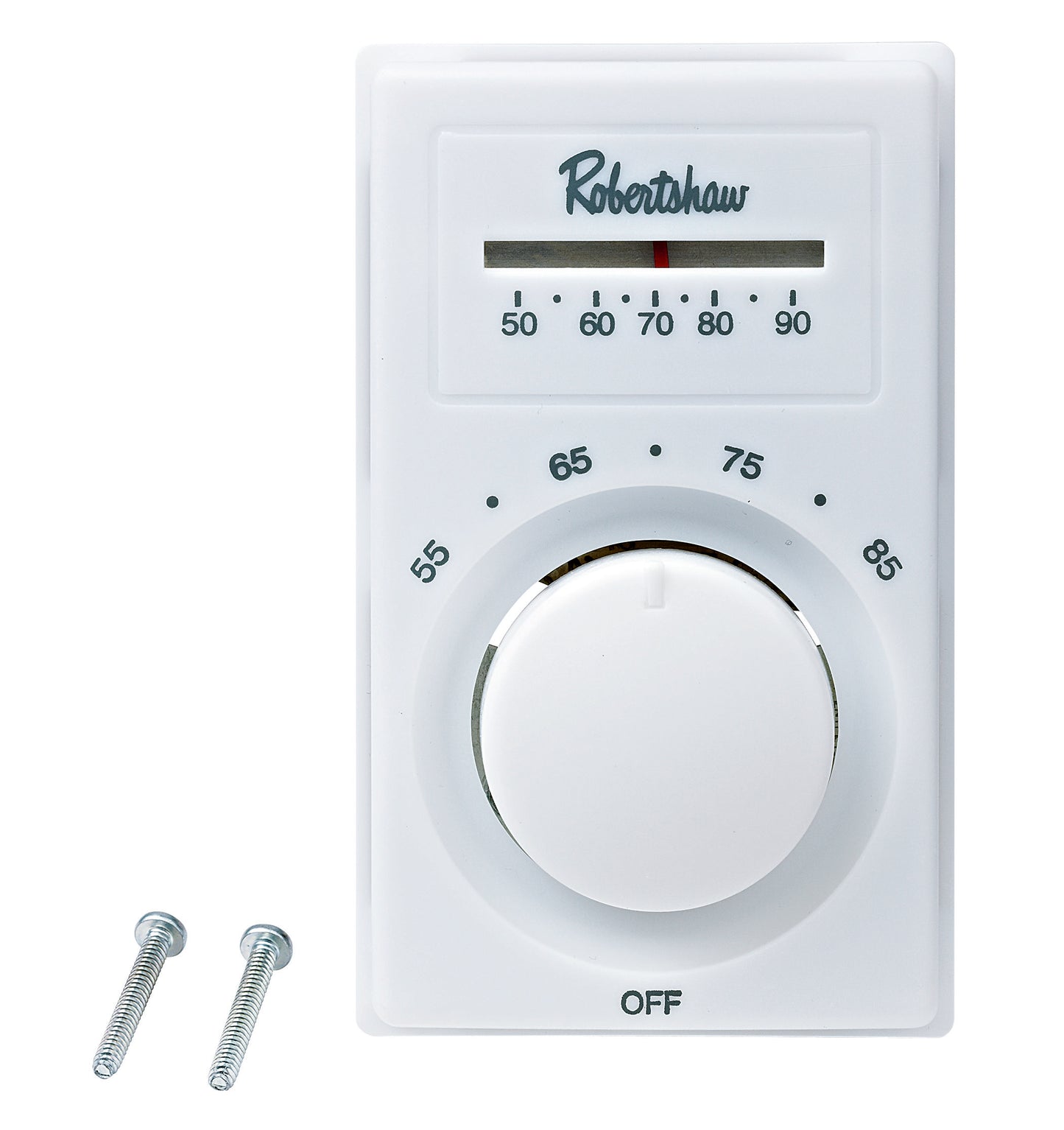

Robertshaw - 802 The Robertshaw 800 Series Line Voltage Thermostats are universal replacements for many other brands and can be used to retrofit most existing electric heat thermostats. With models for heating that include single-line break and double-line break as well as a single-line break cooling model, there is one for every application.
Features and Benefits
- Convenient temperature display - View comfort level at-a-glance
- Bimetal temperature sensing - For improved thermal performance
- Mercury-free - No leveling or special disposal required
- J-Box compatible - Not only will it meet code, but it speeds up installation
- Positive-off switch - Assured shutdown of HVAC system
- Universal replacement - Can retrofit most existing electric heat thermostats
Additional Information
Additional Information
Series ApplicationLine Voltage
ApplicationHeating
Electrical Rating120/240/277V AC, Non-Inductive, 1/4 HP @ 120V AC, 1/3 HP @ 240V AC, 125VA Pilot Duty
SwitchDPST
Temperature Range50°F to 90°F (10°C to 32°C)+/- 2°F (+/- 1°C)
Canadian Model NumberC802
