category:
Air Conditioning
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
9204V
subcategory:
Thermostats & Thermopiles
Product Description

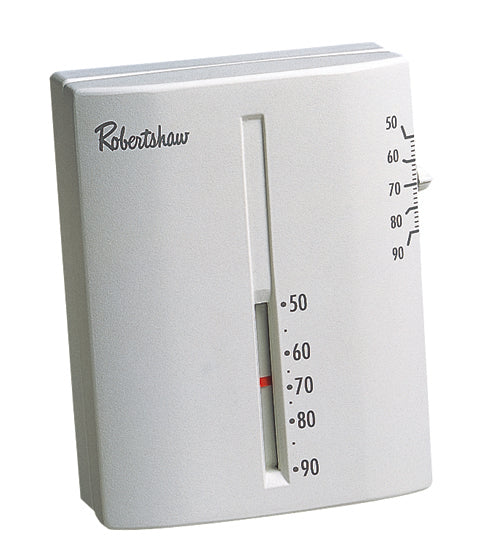

Robertshaw - 9204V The Robertshaw 9200 Series Mechanical Thermostats are both attractive and functional. The temperature display is easy-to-read and offers accurate room temperature measurement. The simple two-piece design saves time at installation. Four Robertshaw 9200 series thermostats replace over 50 competitive models, so less inventory is needed to meet each job requirement.
Features and Benefits:
- Heavy-duty adjustable heat anticipation - More anticipation settings to choose from allows use on a wider range of heating equipment
- No sub-base required - Simple base and cover design speeds installation. Base can be mounted on wall, freeing both hands for wiring
- Mercury-free - No leveling required. Speeds up installation time
- J-Box compatible - Not only will it meet code, but it speeds up installation
- Positive-off switch - Assured shutdown of HVAC system (9200)
Additional Information
Additional Information
Series ApplicationDeluxe Mechanical
Application1 Heat, Gas/Electric Systems. Vertical model.
Electrical Rating24V AC, 2Amps Max
SwitchSPST
Canadian Model NumberC9204V
Dial Temperature50°F to 90°F (10°C to 30°C)+/- 2°F (+/- 1°C)
Heat Anticipation RangeMillivolt Compatible
