Product Description

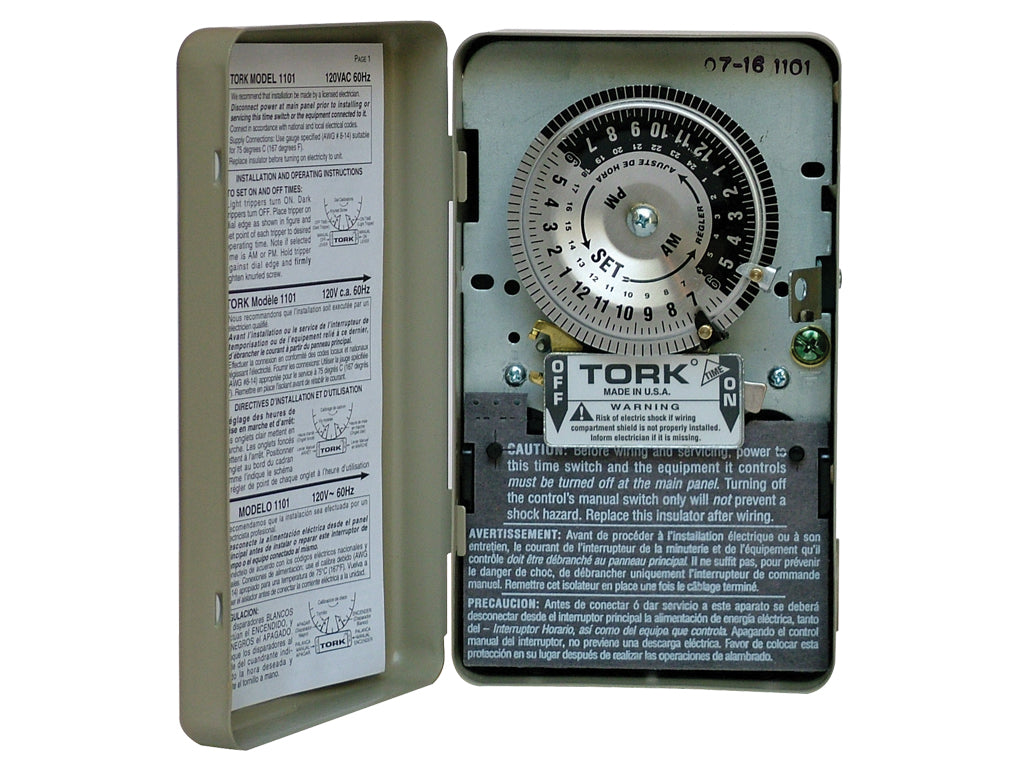

Robertshaw - 1109A The Tork 1100 Series Electric Timers offer 24 hour time switches with automatic On-Off control when operation is required at the same time every day, seven days a week. The 1109A is a multi-voltage electromechnical timer. Applications include On-Off control of heating, air conditioning, display lighting, ventilating, pumps and fans. Tork Electric Timers are sold exclusively through Robertshaw to HVACR wholesalers.
Features and Benefits
- Heavy-duty synchronous, self-starting high torque timing motor
- 120/208-277V AC multi-voltage
- Power consumption: 3 Watts maximum
- Automatic operation for 24 hour timers with one pair of On-Off trippers supplied - accommodates up to 12 pairs
- Multilingual dial markings - English, French and Spanish
- Temporary manual override
- General purpose (NEMA 1) metal enclosure of deep-drawn steel, enamel coated and lockable hasp
- Combination 1/2‚¬ and 3/4‚¬ knockouts on both sides, bottom and back
Additional Information
Additional Information
Series Application24 Hour Electromechanical Timer
Electrical Rating120V AC
SwitchDPST
Temperature Range-40°F to 165°F (-40°C to 74°C)
Contact Ratings40 Amps Resistive, 20 Amps Inductive, 1000 VA Pilot Duty, 2HP (24 FLA) 120V AC
TimingHeavy duty synchronous, 3 Watts
Automatic OperationMinimum ON 20 minutes OFF 75 minutes
EnclosureMetal
