category:
Energy
country_of_origin:
US
manufacturer:
Robertshaw
mpn:
TU40
subcategory:
Switches
Product Description

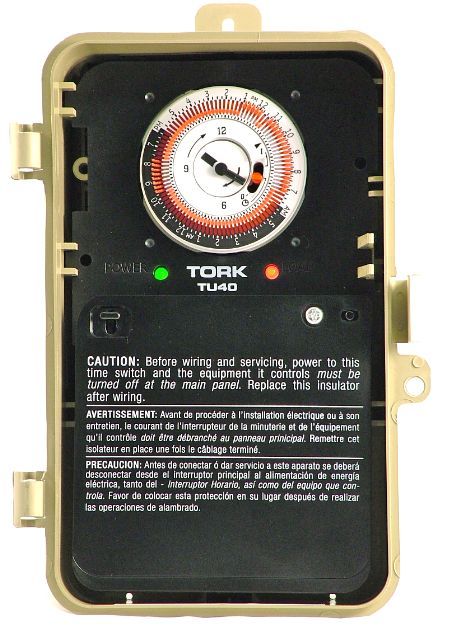

Robertshaw - TU40 The Tork TU40 Series - Universal 24 hour time switches with multi-voltage options offer automatic On-Off control when operation is required at the same time every day, seven days a week. Applications include On-Off control of heating, air conditioning, display lighting, ventilating, pumps, fans and security systems. Tork Electric Timers are sold exclusively through Robertshaw to HVACR wholesalers.
Features and Benefits
- Automatic input voltage detection without DIP switches
- LED indicators for load and power
- Includes On/Off/Auto switch
- Power consumption: 6 VA maximum
- Temporary manual override is standard
- Combination 1/2‚¬ and 3/4‚¬ knockouts on both sides, bottom and back
- Enclosure includes indoor/outdoor NEMA 3R plastic
Additional Information
Additional Information
Series Application24 Hour Electromechanical Timer
Electrical Rating120V AC|208-240V AC|277V AC
Switch4 in 1 DPDT, SPST, SPDT, DPST
Temperature Range-35°F to 116° F (-35°C to 47°C)
Contact Ratings40 Amps Resistive, 30 Amps Inductive, 720 VA Pilot Duty, 1HP 120V AC, 2HP 240V AC(Normally Open)
Automatic OperationMinimum setting: 15 minutes
EnclosurePlastic
