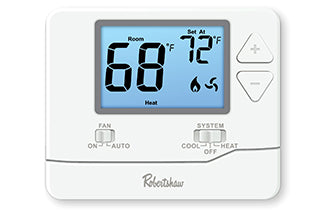

Robertshaw RS8000 Series Non-Programmable RS8110

Robertshaw RS8000 Series Non-Programmable RS8110

Dropship

SKU kpi026-RS8110

GTIN :

MPN : RS8110

$129.26 USD
$129.26 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Air Conditioning
country_of_origin: US
manufacturer: Robertshaw
mpn: RS8110
subcategory: Thermostats & Thermopiles

Product Description

Robertshaw - RS8110 Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat.
Single Stage - 1 Heat / 1 Cool

‚¬ Large terminal blocks for easy installation
‚¬ Universal sub-base
‚¬ Quick-access menu button
‚¬ Contractor/technician setup menu
‚¬ Large, easy-to-read 4.6-square-inch blue backlit display
‚¬ 24V AC Powered OR Battery Operation (Included)
‚¬ 6Year Limited Warranty
‚¬ Easy-access front-load battery compartment
‚¬ Adjustable temperature differential (swing) for energy optimization and maximum system life
‚¬ Adjustable room temperature calibration
‚¬ Adjustable setpoint limits
‚¬ Five-minute selectable on/off compressor delay protection for short-cycling prevention
‚¬ Separate O and B terminals


Additional Information

Additional Information

Series ApplicationSingle-Stage 1 Heat / 1 Cool Non-Programmable
Temperature Range41°F to 95°F (5°C to 35°C)
Mounting TypeWall or junction box
Factory Part NumberRS8110
Power Source24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)
Dimensions4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
TerminalsRh, Rc, C, Y, W, G, O, B
Control Temperature44°F to 90°F (7°C to 32°C)
System Fuel SourceGas, electric or oil
Heat Pump CompatibilitySystems without auxiliary or emergency heat
Millivolt Application CompatibilityYes
Display Accuracy+- 1°F (at 68°F) / +- 1°C (at 20°C)
