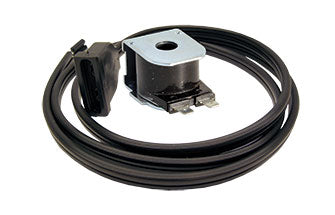

Robertshaw - LDK-310000-070 The Ranco LDK Series Solenoid Coils are designed for use with current production (Generation 4) V0, V1, V2, V3, V6, V10 and V12 Ranco 4-way Reversing Valves.
These color-coded, encapsulated, continuous duty, moisture resistant electro-magnetic coils are designed to operate the pilot valve that controls these reversing valves. A W29 wiring harness with 48 leads is included with the solenoid coil.
Features and Benefits:
- Epoxy encapsulated
- Continuous duty
- Moisture resistant magnetic coils
- Includes wiring harness
Additional Information
Additional Information
Series ApplicationSolenoid Coils For Reversing Valves
Electrical Rating120V AC
Lead Length48" (120cm)
Power5 Watts at 50 Hz, 4 Watts at 60 Hz
Color CodeBlack
CategoryAir Conditioning
Country of originUS
ManufacturerRobertshaw
MpnLDK-310000-070
SubcategoryCoils
