category:
Sign Cutting Solutions
country_of_origin:
USA
dimension:
120 x 11 x 83in
frame_length:
120"/3050mm
manufacturer:
Safety Speed Manufacturing
mpn:
H5
subcategory:
Sign Cutting Vertical Panel Saws
type:
Vertical Panel Saws
weight:
298 lbs
Product Description

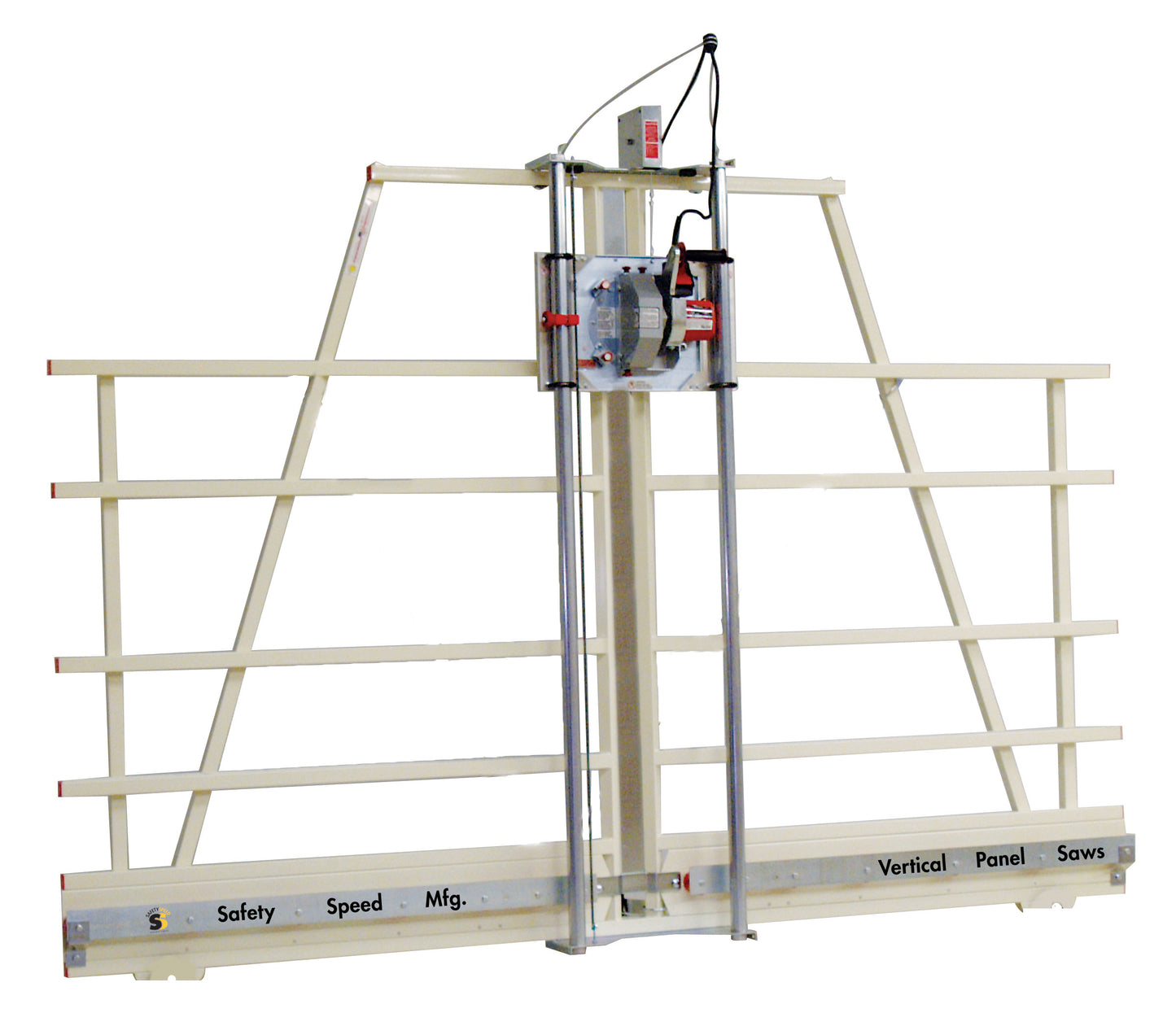

Safety Speed Manufacturing - H5 Our flagship H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square. The only difference between this model and our H4 and H6 models are that the they provide 50″, and 74″ maximum crosscuts.
- Zinc plated 1 ¾”steel guide tubes.
- Milwaukee Tool motor
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Additional Information
Weight298 lbs
Dimensions120 x 11 x 83in
Max. Crosscut64"/1625mm
Max. Rip CutUnlimited
Cut Depth1 ¾"/45mm
Cut Accuracy1/32"/.8mm
Frame Length120"/3050mm
Daily Usage1-3 Hours
Rollers14
Saw Blade Diameter8"/210mm
Saw Blade Bore5/8"
Motor amperage and volt15 amps, 120 Volt, 7.5 amps, 220 Volt
Motor ManufacturerMilwaukee Tool
ModelH5
Country of OriginUSA
