Sensorcon AV8-CO-01 AV8 Inspector Carbon Monoxide Monitor for Aviation

Product Description

The Sensorcon AV8 Inspector is a portable, professional-grade Carbon Monoxide monitor designed for aviation enthusiasts and professionals, including pilots, ground crew, technicians, and inspectors.

In aviation, CO is commonly produced by piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents.

The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations before it becomes a problem.

Features

• Portable and lightweight
• Visual and Audio alarm
• User-friendly interface
• Water-resistant and shock-resistant
• Battery life up to two years
• Steel clip and lanyard loop

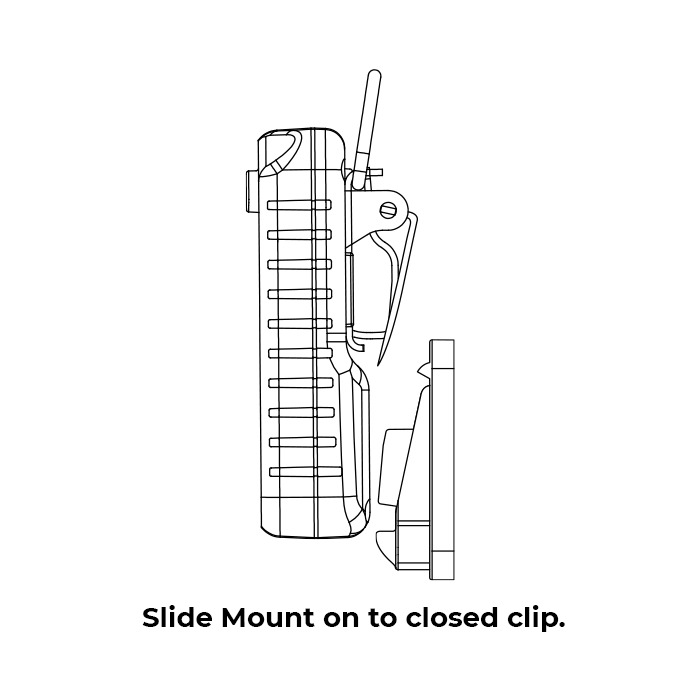

• Removable mount*
• Two-year warranty

Specification

• Measuring Range 0-500ppm
• Display Range 0-1999ppm
• Resolution 1ppm
• Accuracy +/- 10% of reading at ambient conditions (0-500 ppm)
• Response time (T90) < 20 seconds
• Size ~3.2” x 2.2” x 0.9”
• Unit Weight 4 ounces
• Battery Life > 2 yrs (depending on alarm conditions)
• Battery Type Panasonic CR123A
• Alarm setpoints 35 ppm low, 200 ppm high
• Alarm types Visual LCD/LED, Audible Buzzer (80-85dB)
• Temperature Range -4 to +122 °F (-20 to +50 °C)
• Humidity Range 20%-90% RH continuous (0-99% intermittent)
• Sensor Type electrochemical
