Product Description

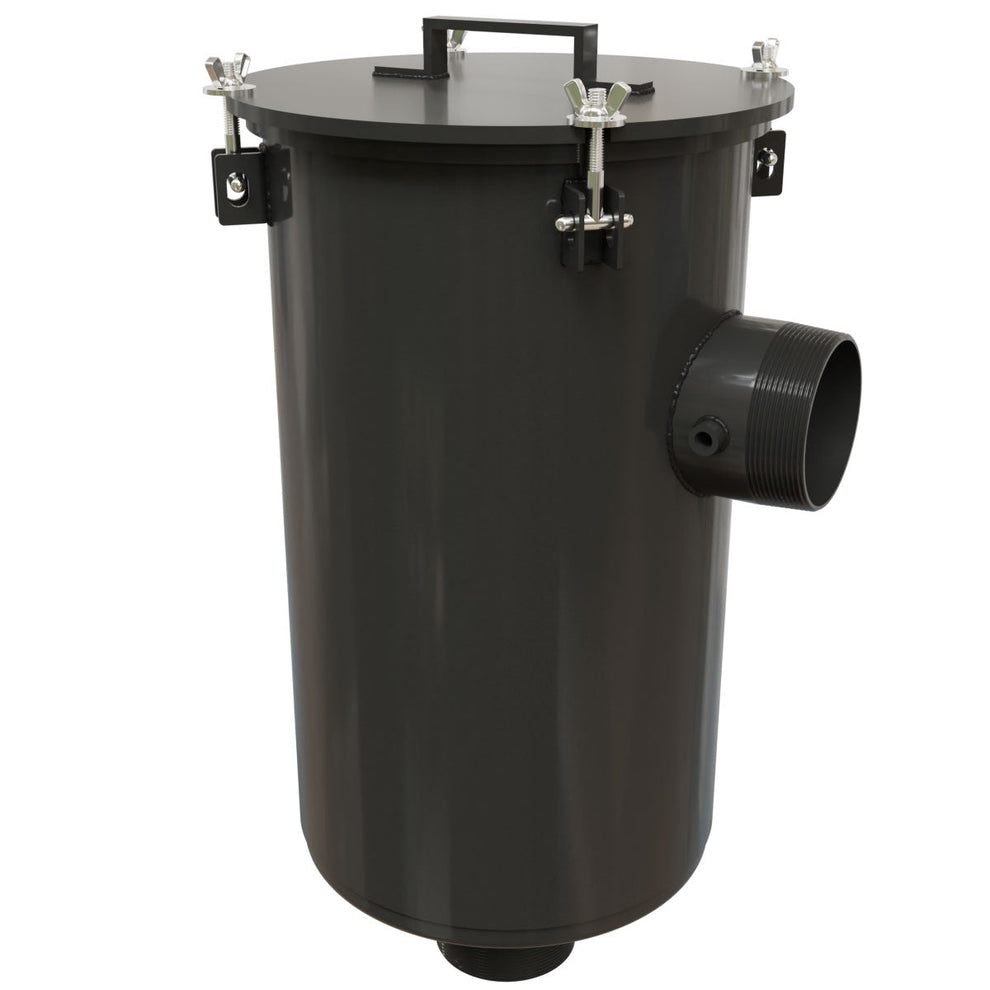

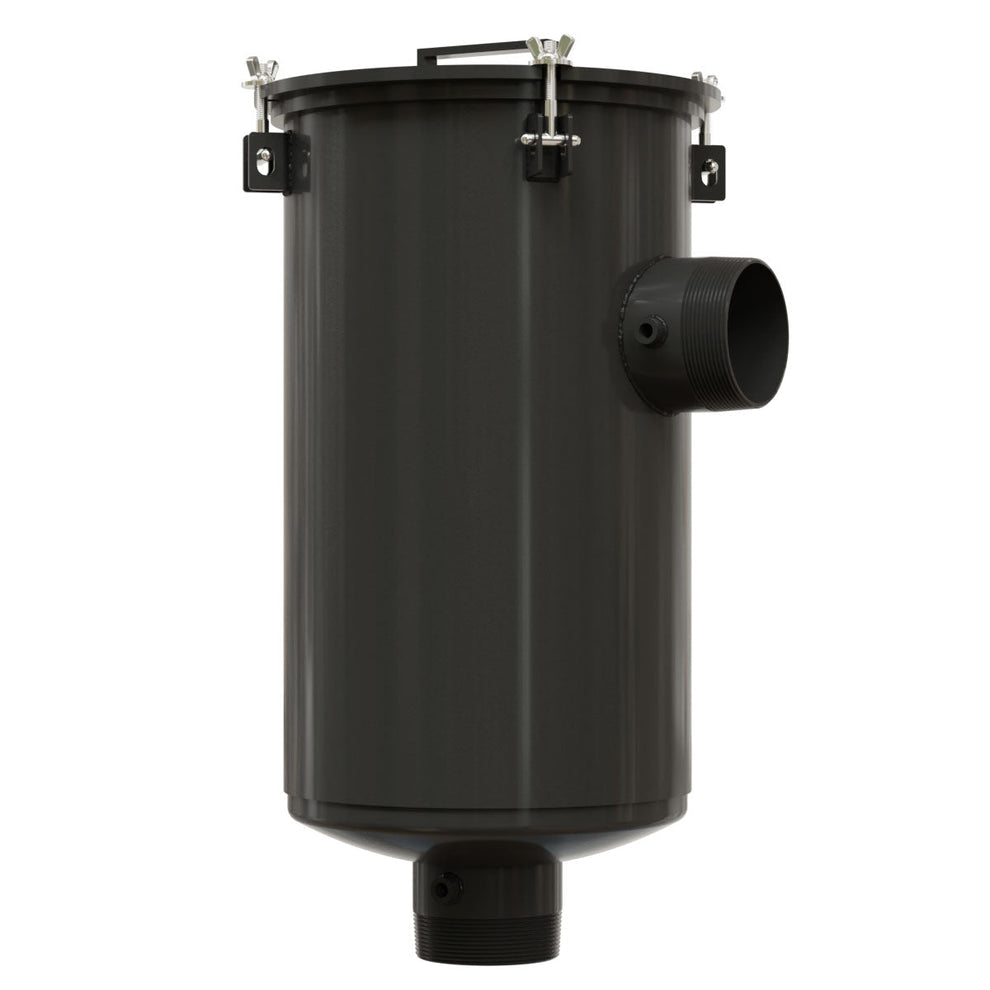

The Solberg CSL-234P-400 Inlet Vacuum Filter is engineered for industrial vacuum applications requiring reliable particulate filtration and dependable equipment protection. Featuring a rugged L-style configuration with 4-inch NPT threaded connections, this industrial vacuum filter helps protect vacuum pumps, blowers, and compressors from damaging airborne contaminants.
This model utilizes a high-efficiency paper filter element rated at 2 microns with 99%+ filtration efficiency, providing excellent contaminant removal and long service life in demanding industrial environments. The heavy-duty black powder-coated carbon steel housing, seamless construction, and positive O-ring sealing system ensure dependable vacuum performance and easy maintenance.
- Model: CSL-234P-400
- Series: CSL Series
- Connection Size: 4 in NPT
- Configuration: L-Style Inlet Vacuum Filter
- Filter Media: Paper Element
- Filtration Rating: 2 Micron
- Filtration Efficiency: 99%+ at 2 Microns
- Maximum Flow Rate: 520 SCFM
- Element Flow Rating: 570 SCFM
- Housing Material: Corrosion-Resistant Carbon Steel
- Finish: Black Powder Coat
- Seal Type: Positive O-Ring Seal
- Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Filter Change Differential: 15-20" H2O above initial pressure drop
- Replacement Element: 234P
- Approximate Weight: 55 lbs
- Construction: Heavy-Duty Housing with Stainless Steel Hardware and T-Bolts
- Application: Vacuum Pumps, Blowers, Vacuum Packaging, Pneumatic Conveying, Factory Automation, Woodworking, Cement Handling, Ash Handling, Industrial Vacuum Systems
The Solberg CSL Series inlet vacuum filters are designed for industrial systems requiring rugged construction, low pressure drop, high dirt holding capacity, and efficient filtration performance for long-term equipment protection and operational reliability.
