Product Description

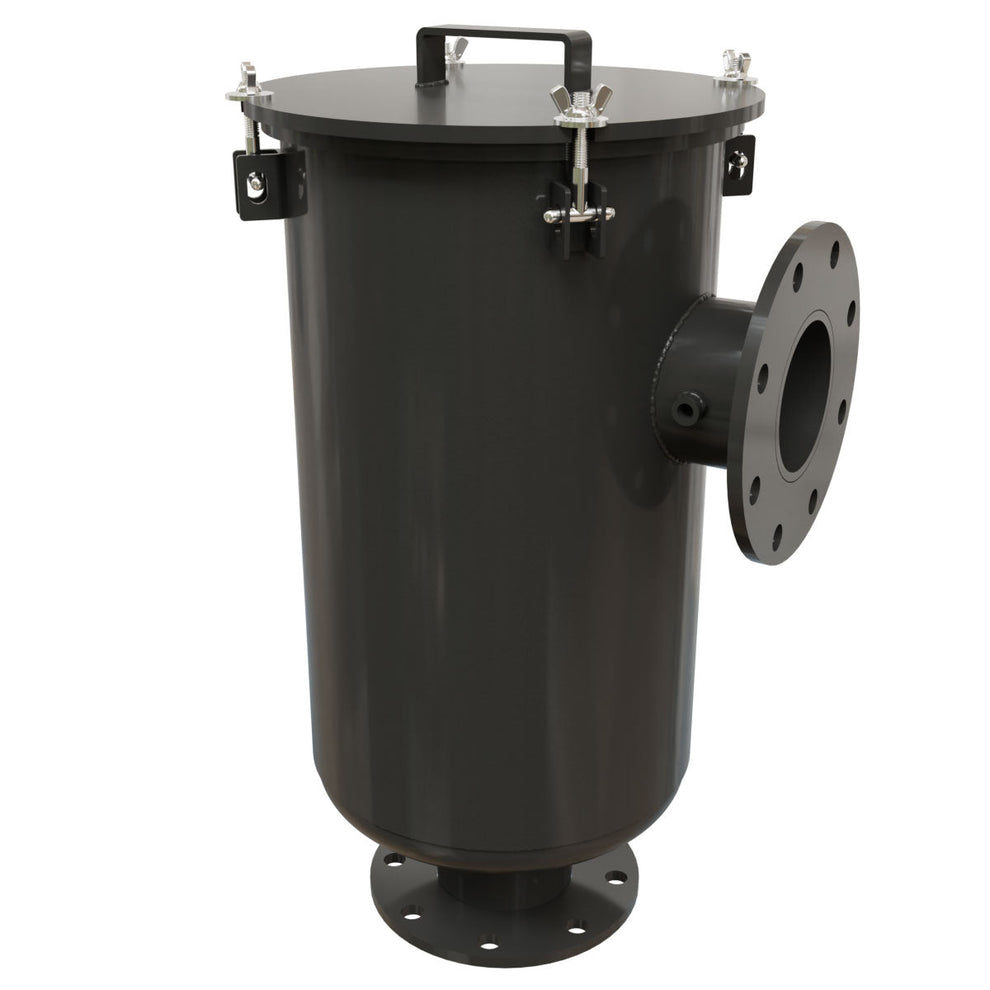

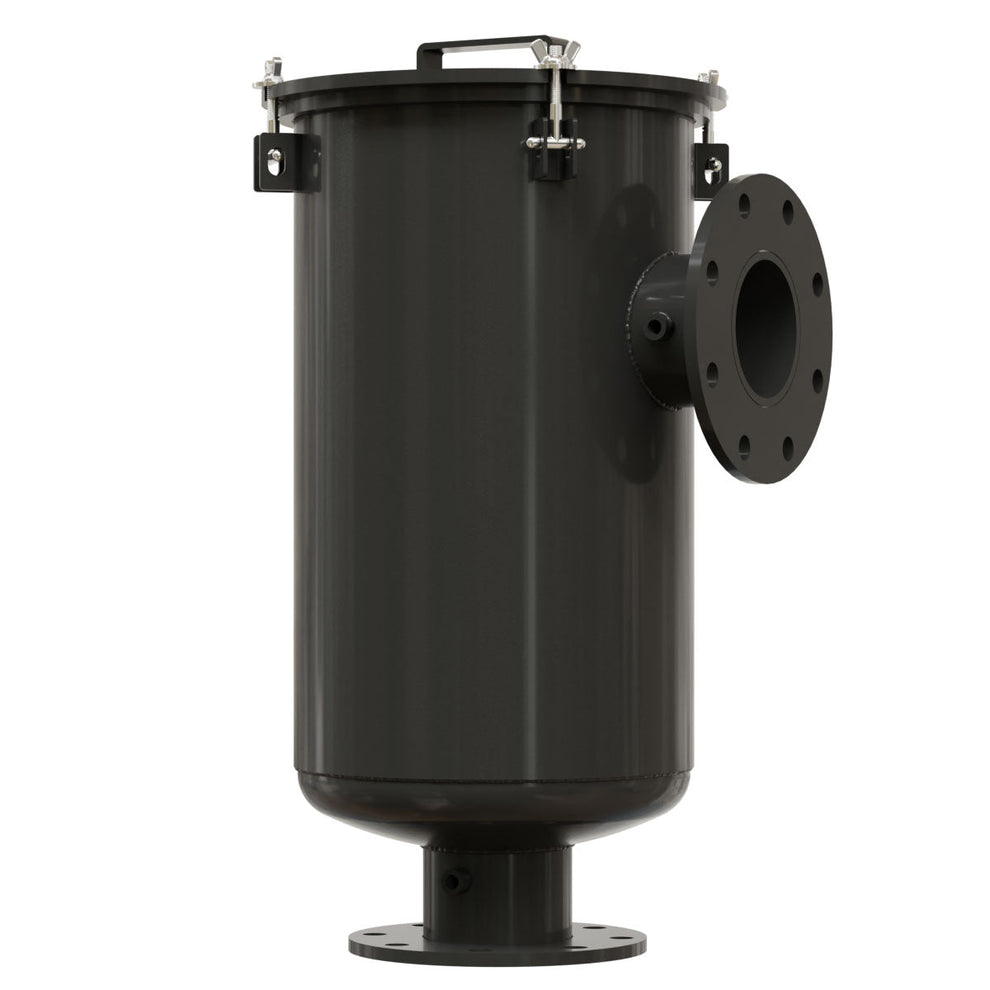

The Solberg CSL-234P-400F Inlet Vacuum Filter is engineered for industrial vacuum applications requiring high-efficiency particulate filtration and dependable equipment protection. Featuring a rugged L-style configuration with a 4-inch ANSI flange connection, this industrial vacuum filter helps protect vacuum pumps, blowers, and compressors from damaging airborne contaminants.
This model utilizes a high-efficiency paper filter element rated at 2 microns with 99%+ filtration efficiency, providing excellent contaminant removal and long service life in demanding industrial environments. The heavy-duty black powder-coated carbon steel housing, seamless construction, and positive O-ring sealing system ensure reliable vacuum performance and easy maintenance.
- Model: CSL-234P-400F
- Series: CSL Series
- Connection Type: 4 in ANSI Flange
- Configuration: L-Style Inlet Vacuum Filter
- Filter Media: Paper Element
- Filtration Rating: 2 Micron
- Filtration Efficiency: 99%+ at 2 Microns
- Maximum Flow Rate: 520 SCFM
- Element Flow Rating: 570 SCFM
- Housing Material: Corrosion-Resistant Carbon Steel
- Finish: Black Powder Coat
- Seal Type: Positive O-Ring Seal
- Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Filter Change Differential: 15-20" H2O above initial pressure drop
- Replacement Element: 234P
- Construction: Heavy-Duty Housing with Stainless Steel Hardware and T-Bolts
- Application: Vacuum Pumps, Blowers, Pneumatic Conveying, Vacuum Packaging, Factory Automation, Woodworking, Cement Handling, Industrial Vacuum Systems
The Solberg CSL Series inlet vacuum filters are designed for industrial systems requiring rugged construction, low pressure drop, high dirt holding capacity, and efficient filtration performance for long-term equipment protection and operational reliability.
