Product Description

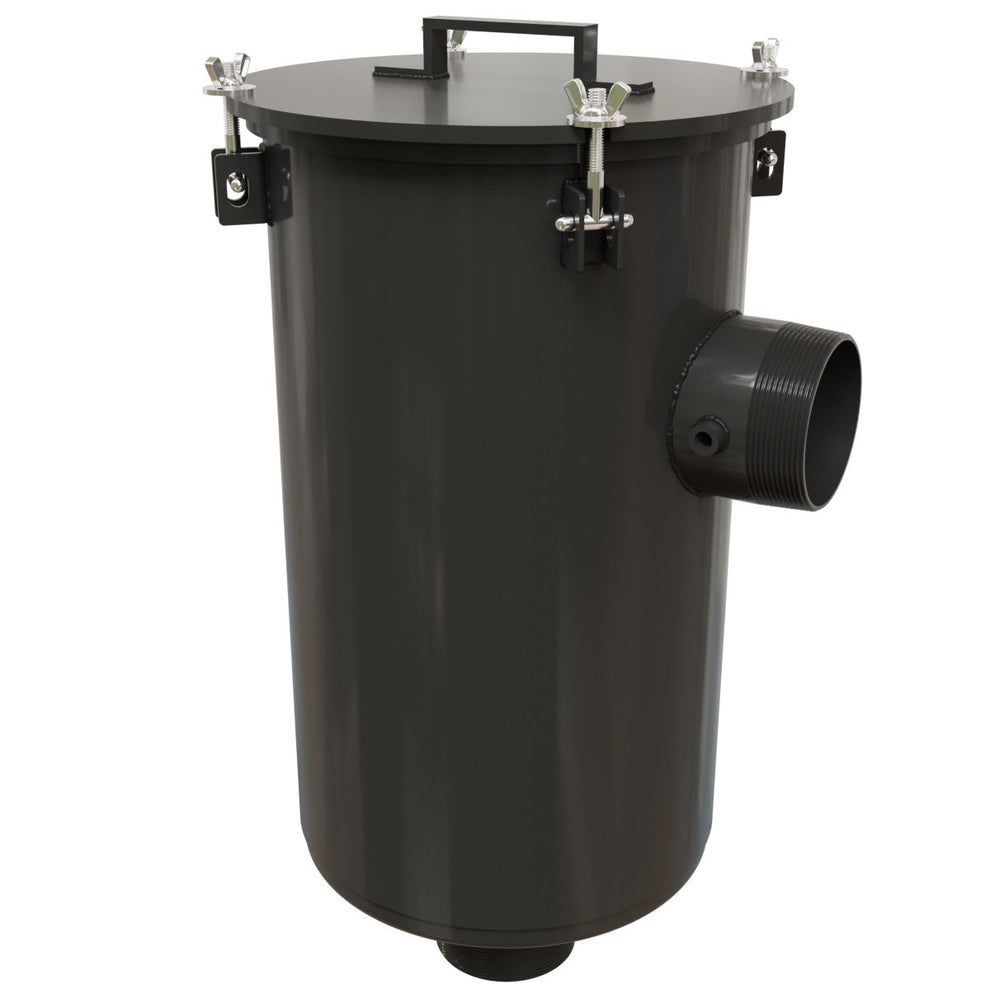

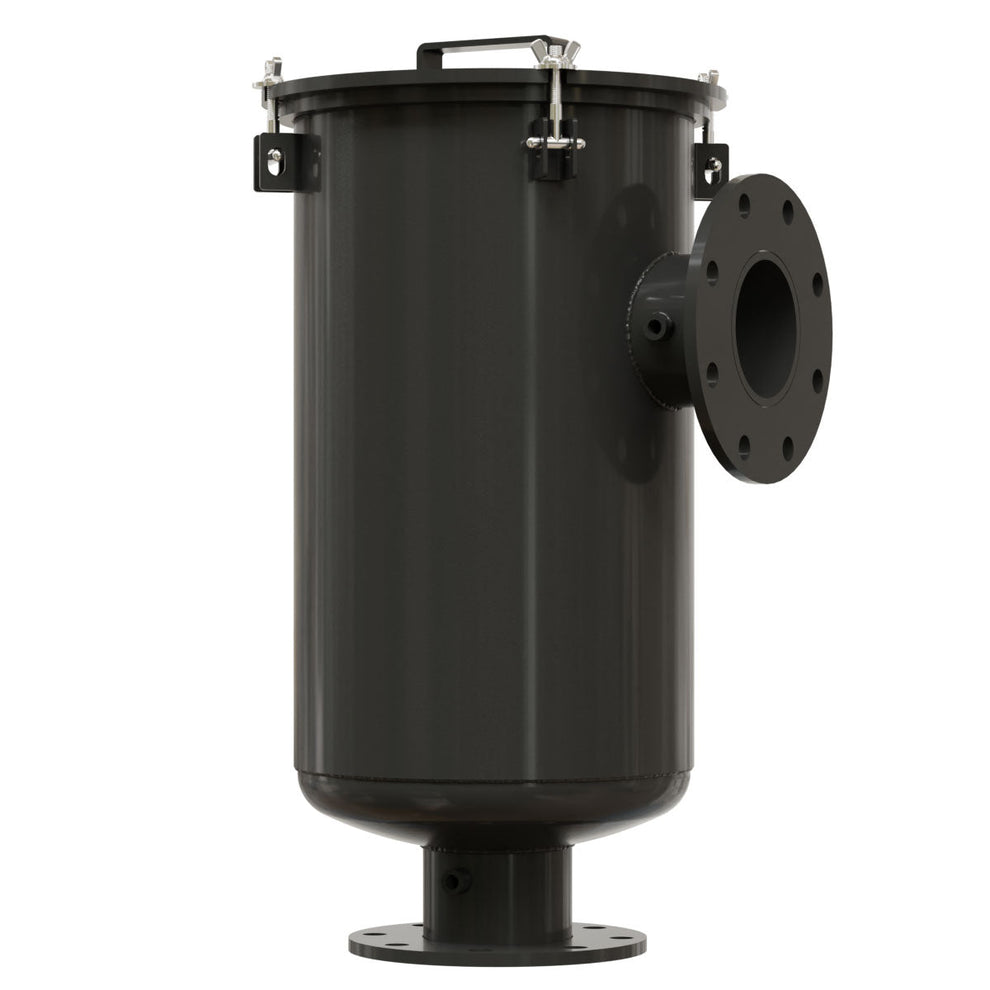

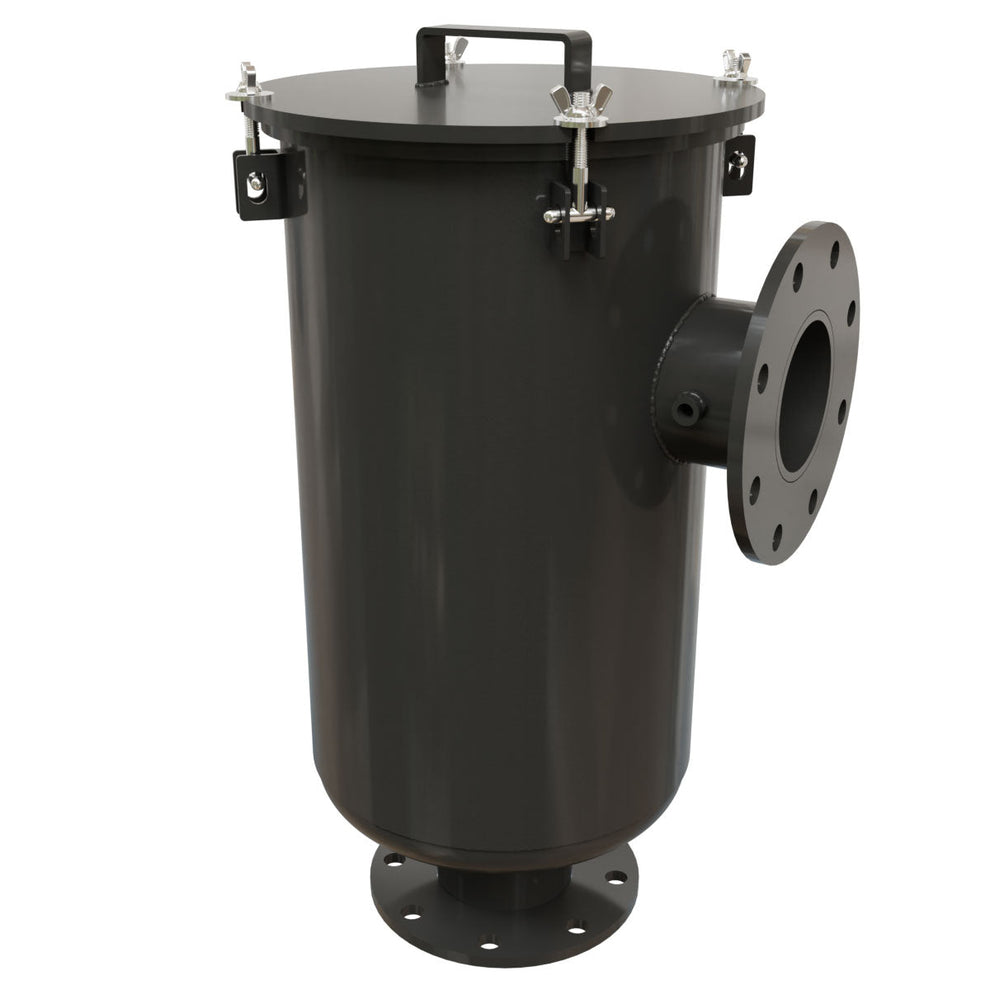

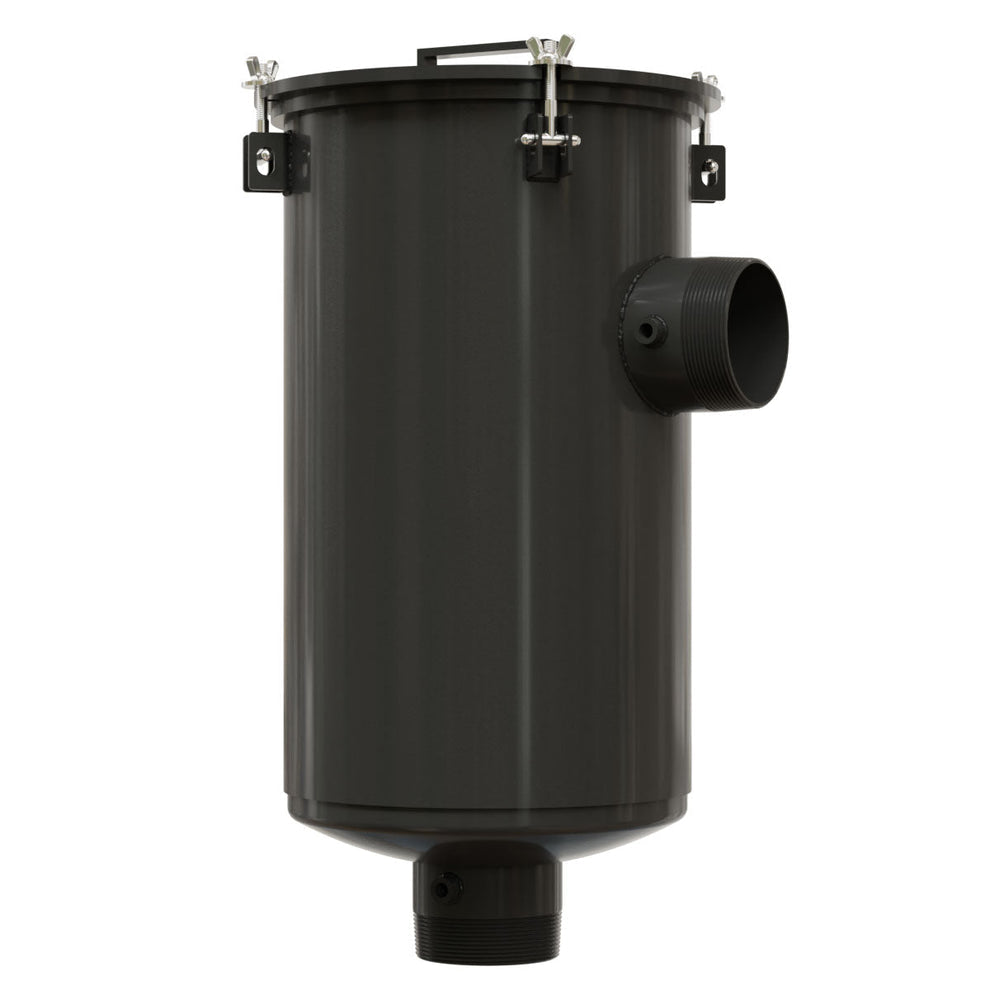

Solberg CSL-235P-400 Inlet Vacuum Filter
The Solberg CSL-235P-400 inlet vacuum filter is engineered to protect vacuum pumps, compressors, regenerative blowers, and industrial air systems from harmful airborne contaminants while reducing operational noise. Featuring a high-efficiency polyester filter element, rugged carbon steel construction, and compact right-angle configuration, this industrial inlet filter delivers dependable filtration performance, low restriction airflow, and extended service life in demanding industrial environments.
Key Features
- 4" MNPT threaded inlet and outlet connections
- Compact right-angle L-style configuration for space-saving installation
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel housing with corrosion-resistant black powder coat finish
- Integrated silencing technology helps reduce operational noise
- Maximum airflow capacity up to 400 SCFM
- Low pressure drop design improves vacuum and blower efficiency
- O-ring sealed housing for reliable leak-free performance
- Heavy-duty T-bolt construction for simplified maintenance access
- Replaceable filter element for extended service life
Applications
- Vacuum pumps
- Vacuum packaging systems
- Regenerative and side channel blowers
- Pneumatic conveying systems
- Industrial compressors
- Factory automation systems
- Dust collection and filtration systems
- Manufacturing and processing equipment
- Woodworking machinery
- Industrial air handling systems
Specifications
- Model: CSL-235P-400
- Series: CSL Series
- Connection Size: 4 Inch MNPT
- Connection Type: Male NPT
- Configuration: Right Angle / L-Style
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 400 SCFM
- Housing Material: Carbon Steel
- Housing Finish: Black Powder Coat
- Overall Height: Approx. 27 Inches
- Outside Diameter: Approx. 14 Inches
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Medium Vacuum Service
- Approximate Weight: 49 lbs
- Replacement Element: 235P® Polyester Element
Benefits
- Protects vacuum pumps and blowers from damaging airborne contaminants
- Compact right-angle configuration saves valuable installation space
- Integrated silencing reduces operational noise levels
- Heavy-duty steel construction withstands harsh industrial conditions
- Low restriction airflow improves overall system performance
- Simple maintenance with replaceable filter elements and T-bolt access
The Solberg CSL Series inlet vacuum filters are engineered for industrial applications requiring efficient particulate filtration, noise reduction, and dependable long-term protection for vacuum and blower systems.
