Product Description

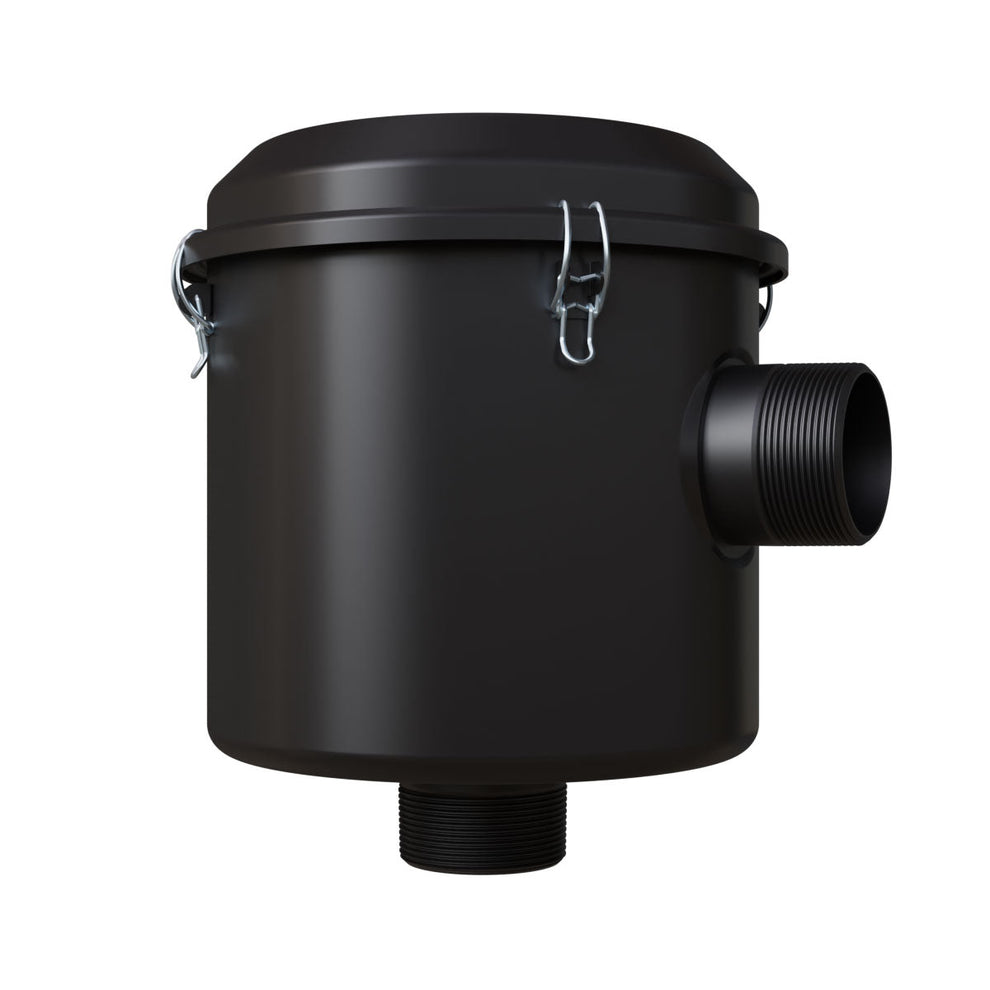

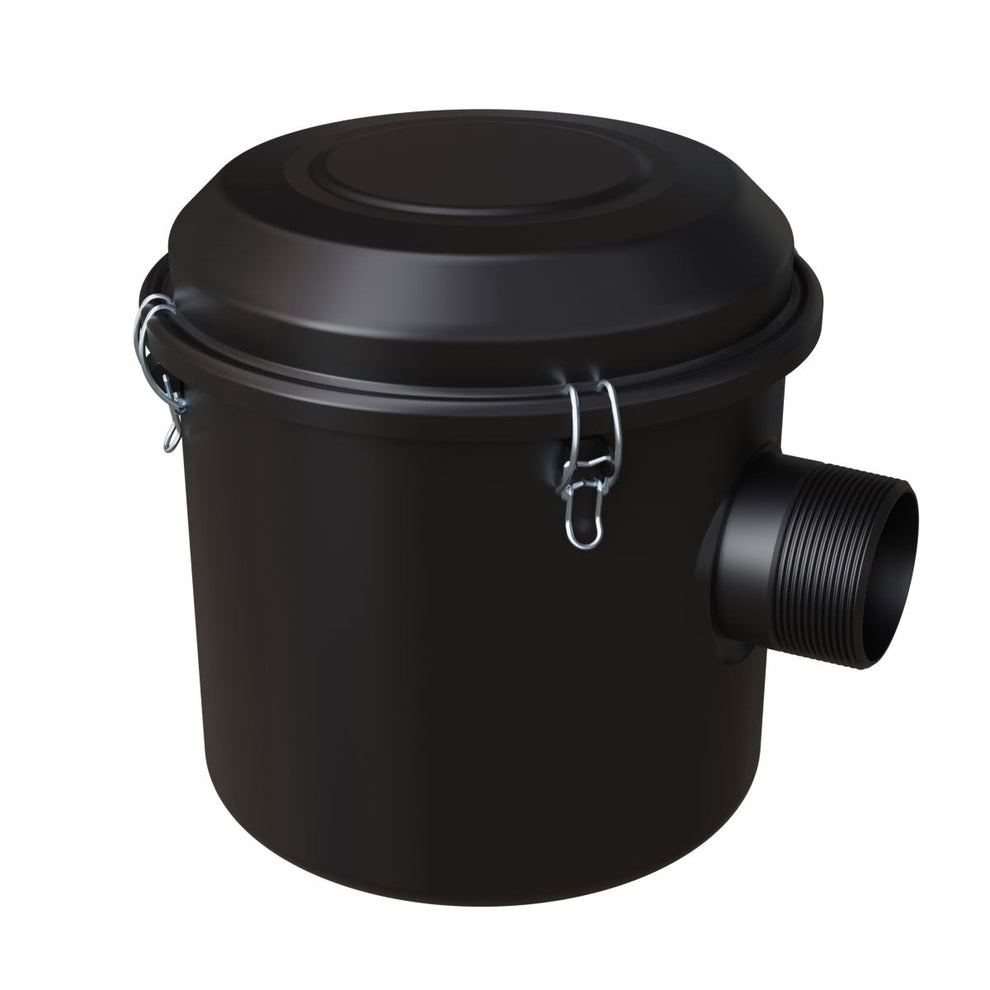

Solberg CSL-2541-400B Compact Inlet Vacuum Filter
The Solberg CSL-2541-400B compact inlet vacuum filter is engineered to protect vacuum pumps, compressors, regenerative blowers, and industrial air systems from harmful airborne contaminants while reducing operational noise. Featuring a high-efficiency polyester filter element, heavy-duty carbon steel housing, and right-angle L-style configuration, this industrial vacuum filter delivers dependable filtration performance, low restriction airflow, and long service life in demanding industrial environments.
Key Features
- 4" MNPT threaded inlet and outlet connections
- L-style compact configuration for space-saving installation
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel housing with corrosion-resistant black powder coat finish
- Integrated silencing technology helps reduce operational noise
- Low pressure drop design improves vacuum system efficiency
- O-ring sealed housing for reliable sealing performance
- Heavy-duty T-bolts for simplified maintenance and servicing
- Replaceable filter element for extended service life
- Suitable for medium vacuum service applications
Applications
- Vacuum pumps
- Vacuum packaging systems
- Vacuum lifting equipment
- Regenerative and side channel blowers
- Factory automation systems
- Woodworking equipment
- Cement and ash handling systems
- Soil venting and remediation systems
- Piston and screw compressors
- Industrial pneumatic conveying systems
Specifications
- Model: CSL-2541-400B
- Series: CSL Series
- Connection Size: 4 Inch MNPT
- Connection Type: Male NPT
- Configuration: Right Angle / L-Style
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 520 SCFM
- Housing Material: Carbon Steel
- Housing Finish: Black Powder Coat
- Overall Height: Approx. 16.25 Inches
- Outside Diameter: Approx. 13.25 Inches
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Medium Vacuum Service
- Approximate Weight: 32 lbs
- Replacement Element: 2541 Polyester Element
Benefits
- Protects vacuum pumps and blowers from damaging airborne contaminants
- Compact right-angle configuration saves installation space
- Integrated silencing reduces operational noise levels
- Heavy-duty steel construction withstands demanding industrial conditions
- Low restriction airflow improves overall system performance
- Simple maintenance with replaceable filter elements and T-bolt access
The Solberg CSL Series compact inlet vacuum filters are engineered for industrial applications requiring efficient particulate filtration, noise reduction, and dependable long-term protection for vacuum and blower systems.
