Product Description

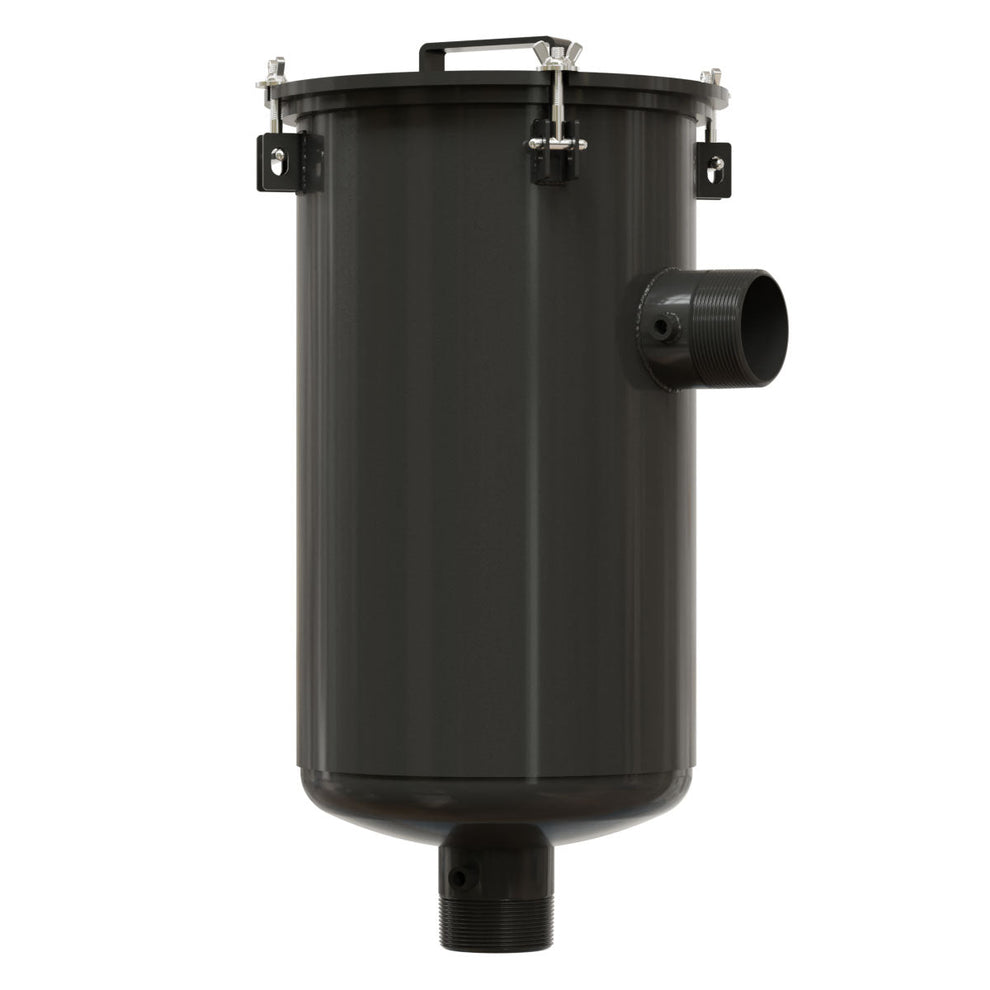

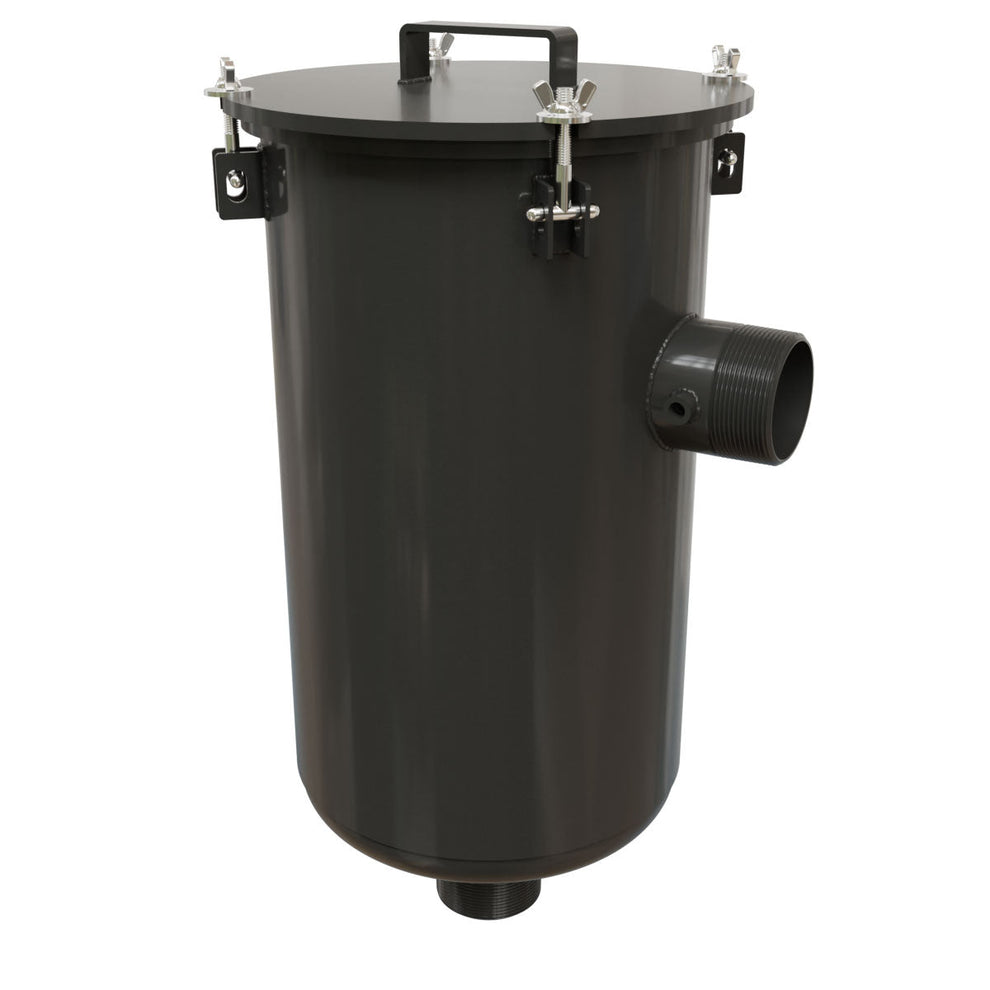

The Solberg CSL-334P-400 Inlet Vacuum Filter is engineered for industrial vacuum applications requiring high-efficiency particulate filtration and dependable equipment protection. Designed with a rugged L-style configuration and 4-inch NPT threaded connections, this industrial vacuum filter helps protect vacuum pumps, blowers, compressors, and vacuum systems from harmful airborne contaminants.
This model features a durable polyester filter element rated at 5 microns with 99%+ filtration efficiency, providing excellent dirt holding capacity, moisture resistance, and extended service life in demanding industrial environments. The heavy-duty black powder-coated carbon steel housing, seamless construction, and positive O-ring sealing system ensure reliable long-term vacuum performance.
- Model: CSL-334P-400
- Series: CSL Series
- Connection Size: 4 in NPT
- Configuration: L-Style Inlet Vacuum Filter
- Filter Media: Polyester Element
- Filtration Rating: 5 Micron
- Filtration Efficiency: 99%+ at 5 Microns
- Maximum Flow Rate: 520 SCFM
- Element Flow Rating: 570 SCFM
- Housing Material: Corrosion-Resistant Carbon Steel
- Finish: Black Powder Coat
- Seal Type: Positive O-Ring Seal
- Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Replacement Element: 334P
- Filter Change Differential: 15-20" H2O above initial pressure drop
- Construction: Heavy-Duty Housing with Stainless Steel Hardware and T-Bolts
- Application: Vacuum Pumps, Side Channel Blowers, Vacuum Packaging, Pneumatic Conveying, Factory Automation, Woodworking, Dust Collection, Industrial Vacuum Systems
The Solberg CSL Series inlet vacuum filters are designed for industrial systems requiring rugged construction, low pressure drop, high dirt holding capacity, and efficient filtration performance for long-term equipment protection and operational reliability.
