Product Description

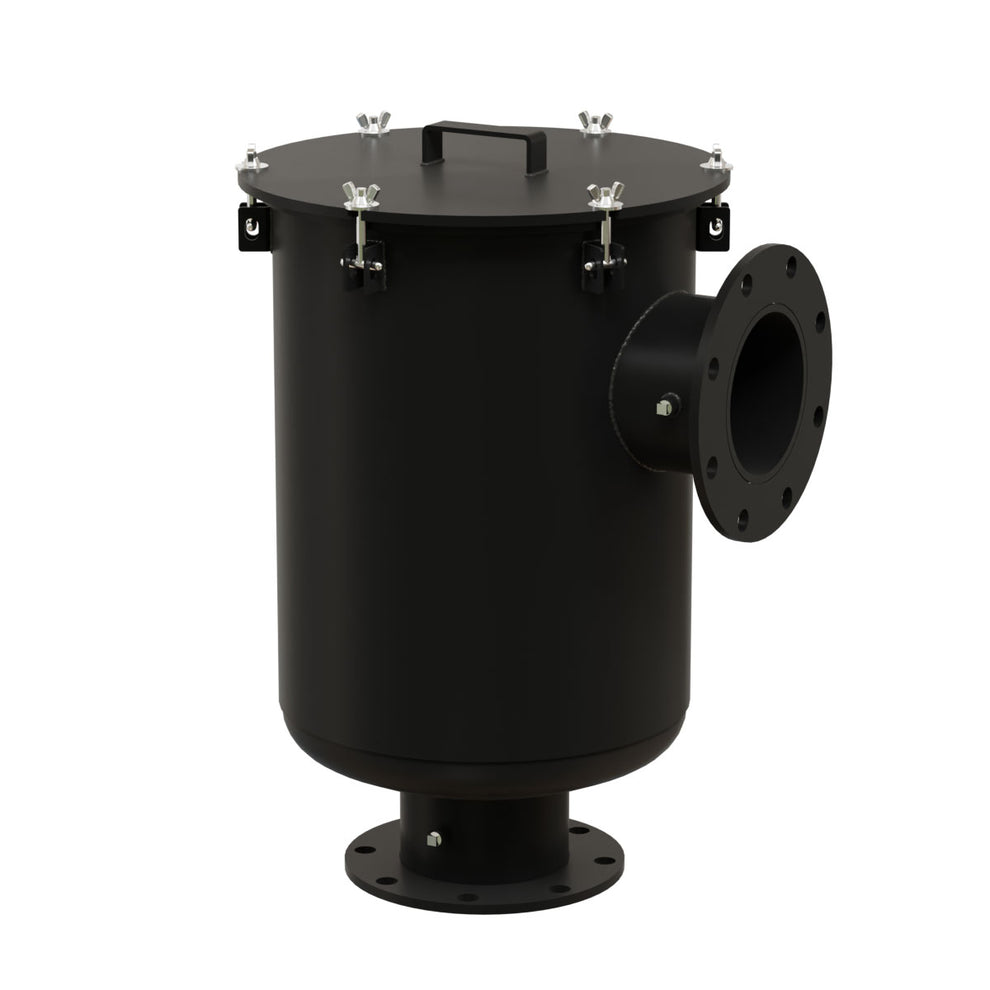

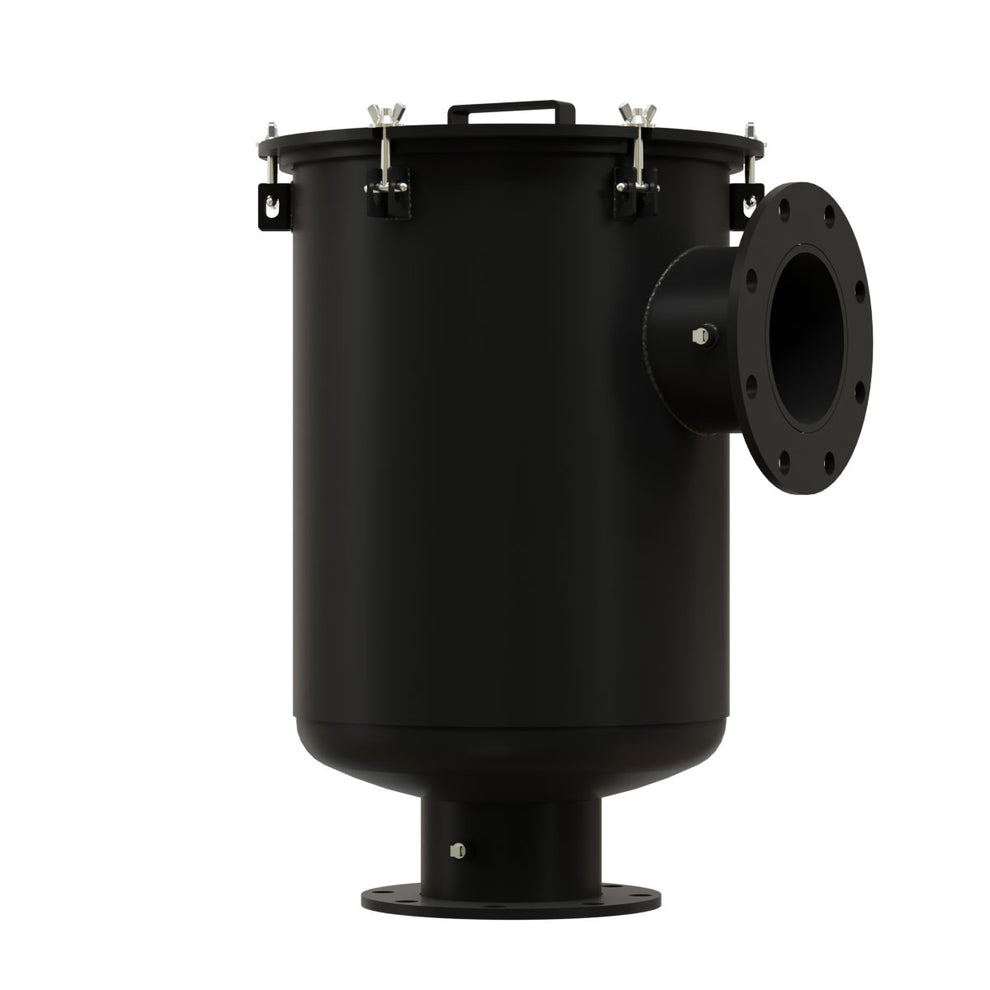

Solberg CSL-345P-500F Inlet Vacuum Filter
The Solberg CSL-345P-500F is a heavy-duty inlet vacuum filter designed to protect vacuum pumps, blowers, compressors, and industrial vacuum systems from harmful particulate contamination. Built with a rugged carbon steel housing and high-efficiency polyester filter media, this industrial-grade vacuum filter delivers reliable performance in demanding operating environments.
Key Features
- Heavy-duty L-style inlet vacuum filter design
- 5" flanged inlet and outlet connections
- High-efficiency polyester filter element
- 99%+ filtration efficiency at 5 micron
- Corrosion-resistant powder-coated carbon steel housing
- Gas-tight O-ring sealing system for reliable operation
- Heavy-duty T-bolt construction for easy maintenance
- Low pressure drop design for improved airflow efficiency
- Designed for medium vacuum service applications
- Integrated gauge tap connections on select models
Technical Specifications
- Model: CSL-345P-500F
- Series: CSL Series
- Connection Size: 5 Inch Flange
- Filter Media: Polyester
- Filtration Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: 800 CFM
- Housing Material: Carbon Steel
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Medium Vacuum Service
- Configuration: Right Angle / L-Style
Applications
The Solberg CSL-345P-500F vacuum inlet filter is ideal for a wide range of industrial applications including:
- Vacuum pumps
- Vacuum packaging systems
- Industrial blowers
- Factory automation equipment
- Woodworking systems
- Soil remediation systems
- Cement and ash handling
- Piston and screw compressors
- Side channel blowers
Its robust construction and high-efficiency filtration help extend equipment life, reduce maintenance requirements, and improve overall system performance in demanding industrial environments.
