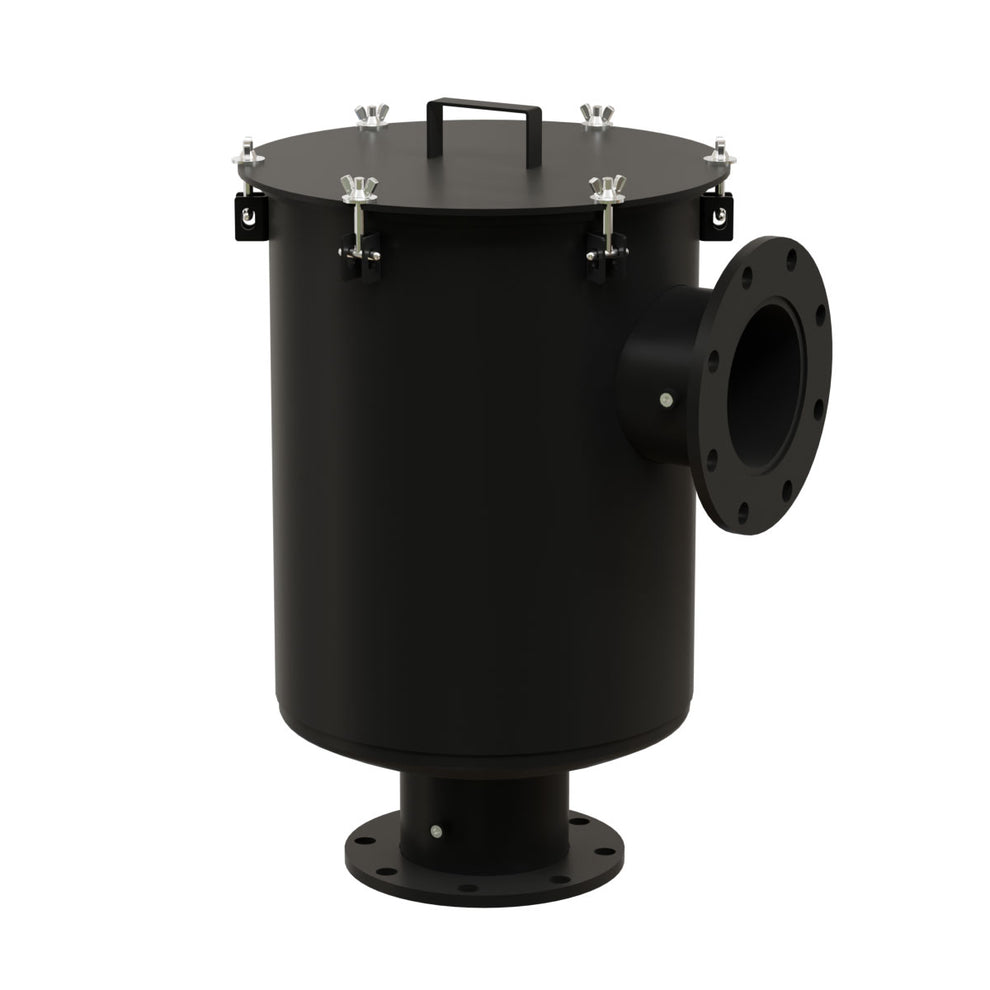

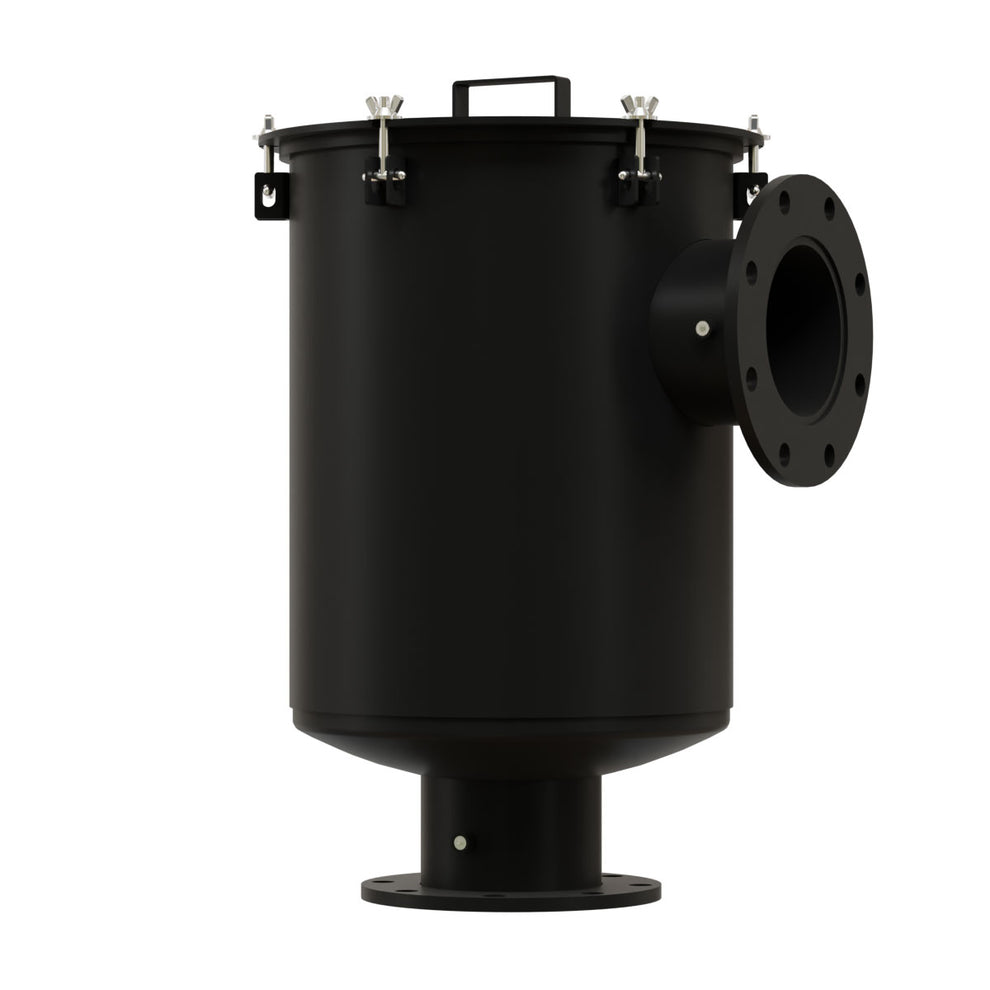

Solberg CSL-375P-600F Inlet Vacuum Filter
The Solberg CSL-375P-600F is a heavy-duty L-style inlet vacuum filter engineered for industrial vacuum systems, blowers, compressors, and vacuum pumps operating in demanding environments. Designed with a corrosion-resistant carbon steel housing and high-efficiency polyester filter media, this industrial vacuum filter delivers superior particulate removal while maintaining low pressure drop and reliable airflow performance.
Key Features
- Heavy-duty L-style inlet vacuum filter configuration
- 6 inch ANSI flanged inlet and outlet connections
- High-efficiency polyester filter element
- 99%+ filtration efficiency at 5 micron
- Durable black powder-coated carbon steel housing
- Gas-tight O-ring sealing system for leak-resistant operation
- Heavy-duty T-bolt construction for fast and easy maintenance
- Low pressure drop design for optimized airflow efficiency
- Large dirt-holding capacity for extended service intervals
- Hydrostatically tested for vacuum-tight performance
- Integrated 1/4" gauge tap connections on select models
Technical Specifications
- Model: CSL-375P-600F
- Series: CSL Series
- Configuration: L-Style / Right Angle
- Connection Type: ANSI Flange
- Connection Size: 6 Inch
- Filter Media: Polyester
- Filtration Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: 1100 SCFM
- Housing Material: Carbon Steel
- Outside Diameter: 18.5 Inches
- Overall Height: 29.13 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Medium Vacuum Service
- Replacement Element Kit: 375P
Applications
The Solberg CSL-375P-600F is ideal for industrial applications requiring dependable inlet air filtration and vacuum system protection, including:
- Vacuum pumps
- Vacuum packaging systems
- Vacuum lifting equipment
- Side channel blowers
- Factory automation systems
- Woodworking operations
- Soil venting and remediation
- Cement and ash handling systems
- Piston compressors
- Screw compressors
Benefits
The CSL-375P-600F helps extend equipment life, minimize maintenance downtime, and improve overall system reliability by preventing harmful particulate contamination from entering critical vacuum and air handling equipment. Its rugged construction and industrial-grade filtration media make it suitable for continuous-duty industrial service.
