Product Description

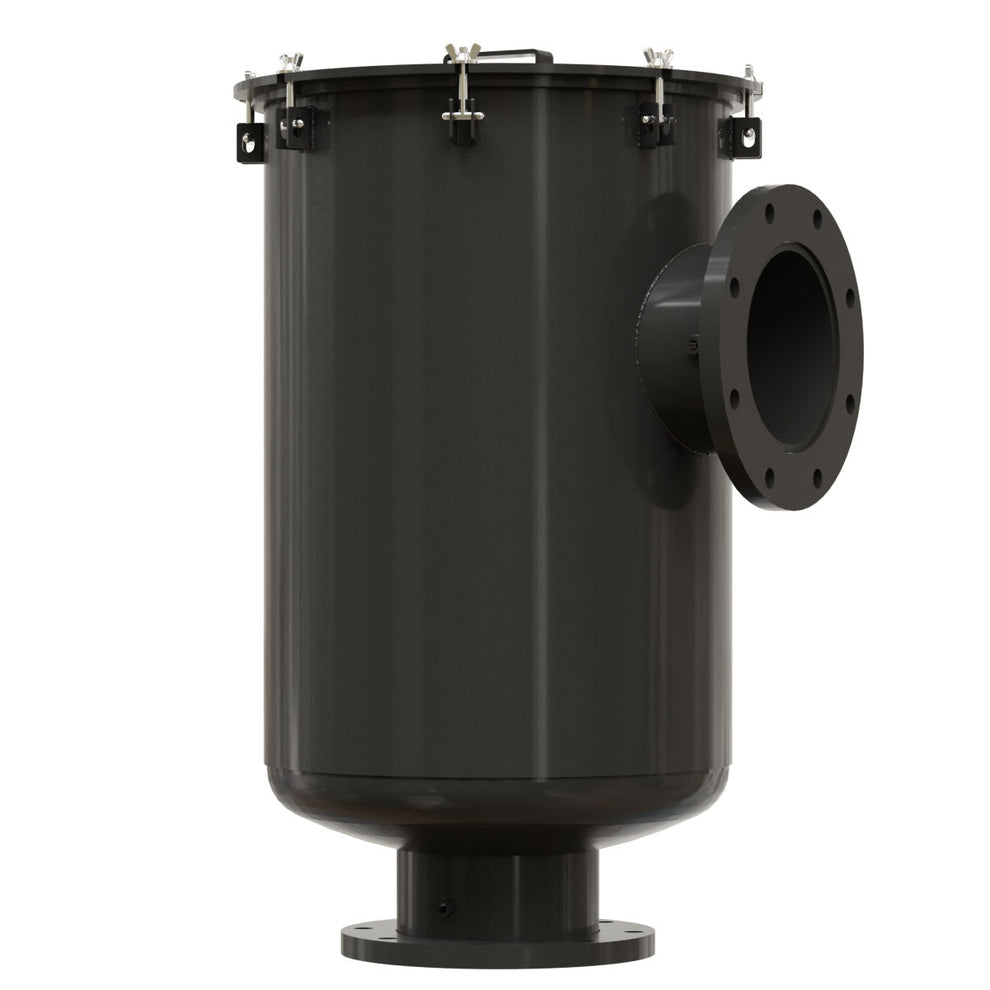

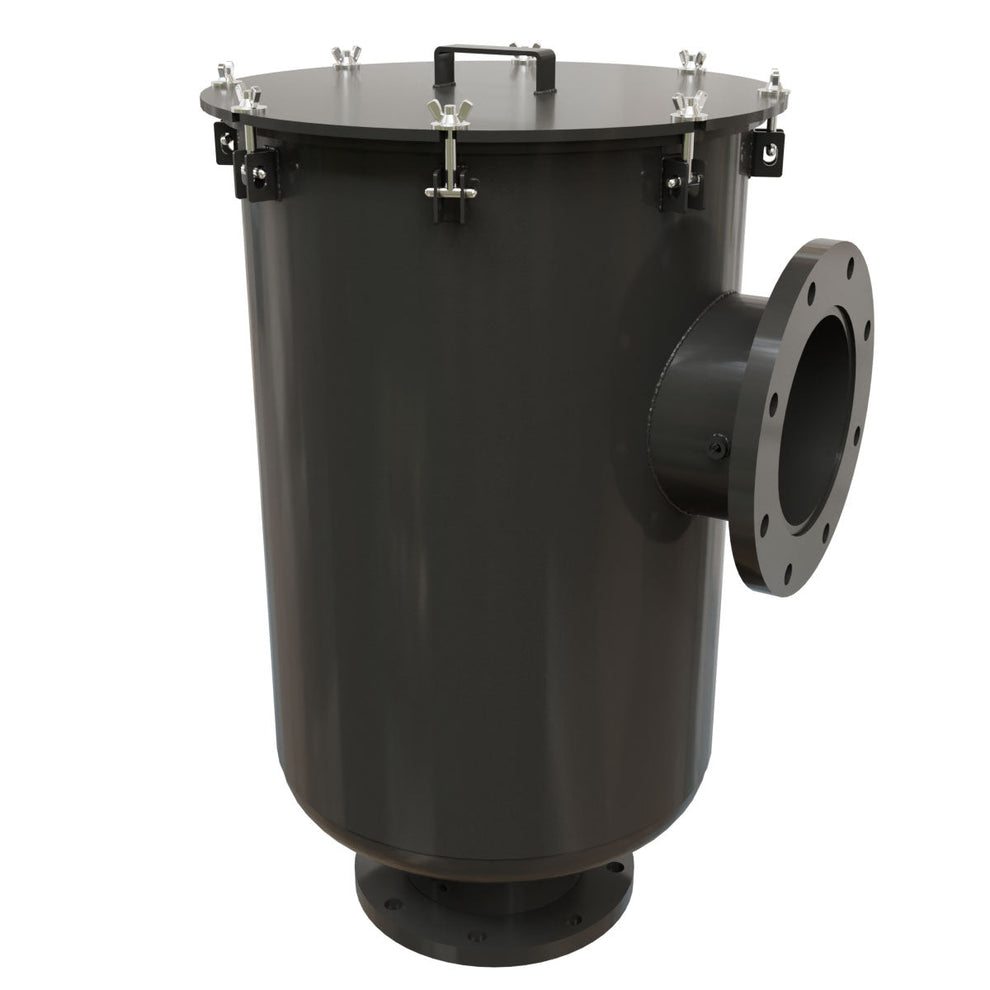

Solberg CSL-377P-800F Inlet Vacuum Filter
The Solberg CSL-377P-800F is a heavy-duty industrial inlet vacuum filter designed to protect vacuum pumps, compressors, blowers, and industrial air systems from damaging particulate contamination. Built with a rugged carbon steel housing and high-efficiency polyester filter media, this CSL Series filter delivers reliable airflow performance, low pressure drop, and extended service life in demanding industrial environments.
Key Features
- Heavy-duty CSL Series L-style inlet vacuum filter
- 8 inch ANSI flanged inlet and outlet connections
- High-efficiency polyester filter element
- 99%+ filtration efficiency at 5 micron
- Corrosion-resistant black powder-coated carbon steel housing
- Heavy-duty T-bolt construction for quick maintenance access
- Integrated O-ring sealing system for vacuum-tight operation
- Low pressure drop design for improved airflow efficiency
- Gauge tap connections available on select models
- Designed for medium vacuum service applications
- Industrial-grade construction for continuous-duty operation
Technical Specifications
- Model: CSL-377P-800F
- Series: CSL Series
- Configuration: Right Angle / L-Style
- Connection Type: ANSI Flange
- Connection Size: 8 Inch
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: 1800 SCFM
- Housing Material: Carbon Steel
- Outside Diameter: 22.5 Inches
- Overall Height: 38 Inches
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Pressure Drop Change-Out Range: 15–20" H?O (37–50 mbar)
- Vacuum Rating: Medium Vacuum Service
- Replacement Element: 377P
Applications
The Solberg CSL-377P-800F is ideal for industrial filtration and vacuum protection applications including:
- Vacuum pumps
- Vacuum packaging systems
- Vacuum lifting equipment
- Factory automation systems
- Side channel blowers
- Piston compressors
- Screw compressors
- Soil venting and remediation
- Woodworking systems
- Cement and ash handling equipment
Benefits
The CSL-377P-800F helps extend equipment lifespan, reduce maintenance costs, and improve overall system reliability by preventing harmful dust and debris from entering sensitive vacuum and air handling equipment. Its durable industrial construction and high dirt-holding capacity make it suitable for continuous heavy-duty operation.
