Product Description

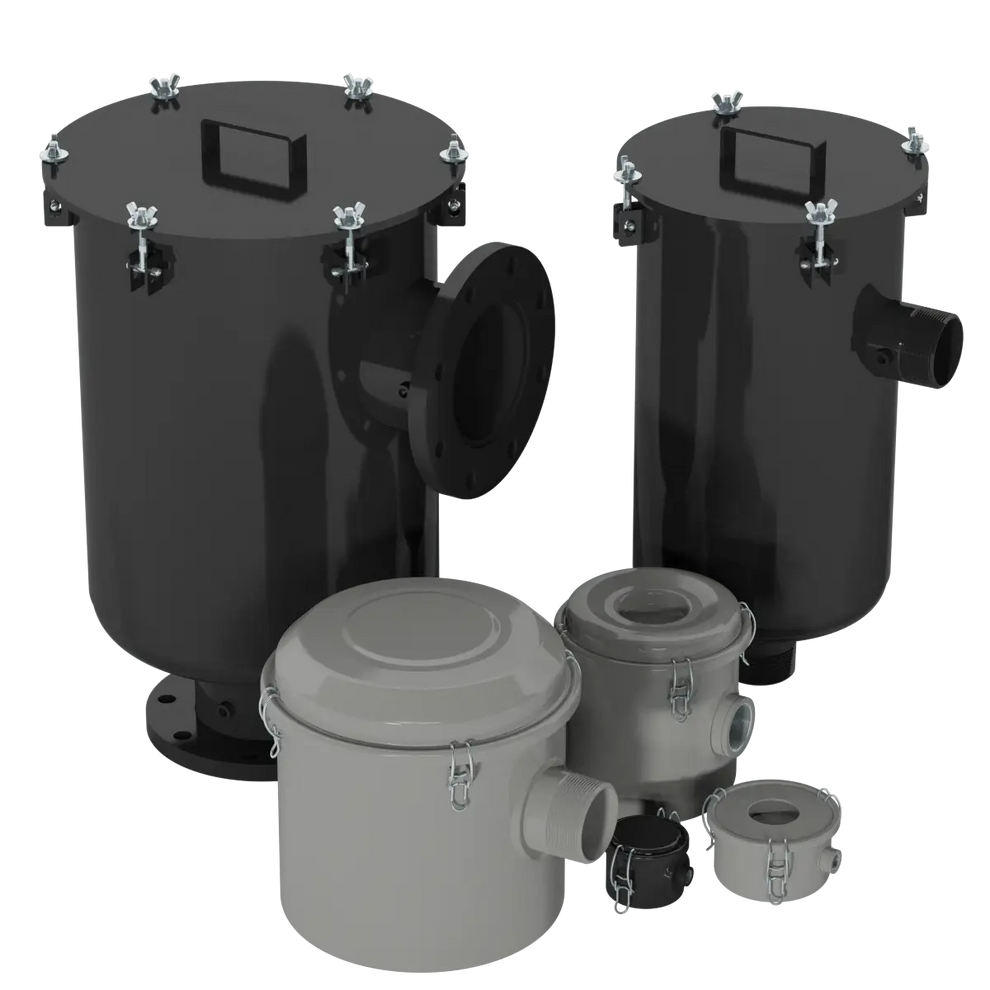

Solberg CSL-485P(2)-1200F Inlet Vacuum Filter
The Solberg CSL-485P(2)-1200F is a heavy-duty industrial inlet vacuum filter engineered for high-capacity vacuum systems, blowers, compressors, and pneumatic conveying applications. Featuring a rugged carbon steel L-style housing and dual high-efficiency polyester filter elements, this CSL Series vacuum filter provides superior particulate removal, low pressure drop, and extended service life in demanding industrial environments.
Key Features
- Heavy-duty CSL Series right-angle inlet vacuum filter
- 12 inch ANSI flanged inlet and outlet connections
- Dual high-capacity polyester filter elements
- 99%+ filtration efficiency at 5 micron
- Corrosion-resistant black powder-coated carbon steel housing
- Heavy-duty T-bolt closure system for simplified maintenance
- Positive sealing O-ring system for vacuum-tight performance
- Large dirt-holding capacity for extended maintenance intervals
- Low pressure drop design for improved airflow efficiency
- Integrated 1/4" gauge tap ports
- Hydrostatically tested for vacuum-tight operation
- Designed for continuous-duty medium vacuum service
Technical Specifications
- Model: CSL-485P(2)-1200F
- Series: CSL Series
- Configuration: L-Style / Right Angle
- Connection Type: ANSI Flange
- Connection Size: 12 Inch
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: Up to 4950 SCFM
- Element Flow Rating: 9410 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Overall Height: Approximately 70 Inches
- Outside Diameter: Approximately 24.24 Inches
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Filter Change-Out Differential: 15–20" H?O (37–50 mbar)
- Vacuum Rating: Medium Vacuum Service
- Replacement Element Kit: 485P(2)
Applications
The Solberg CSL-485P(2)-1200F is designed for demanding industrial filtration and vacuum protection applications including:
- Industrial vacuum pumps
- Pneumatic conveying systems
- Vacuum packaging equipment
- Vacuum lifting systems
- Factory automation systems
- Side channel blowers
- Piston and screw compressors
- Soil venting and remediation systems
- Cement and ash handling systems
- Woodworking equipment
- Bulk material transfer systems
Benefits
The CSL-485P(2)-1200F helps protect critical vacuum and air handling equipment from harmful contaminants, extending equipment life while reducing maintenance downtime and operational costs. Its heavy-duty industrial construction and dual-element filtration design make it ideal for high-flow continuous-duty applications.
