Product Description

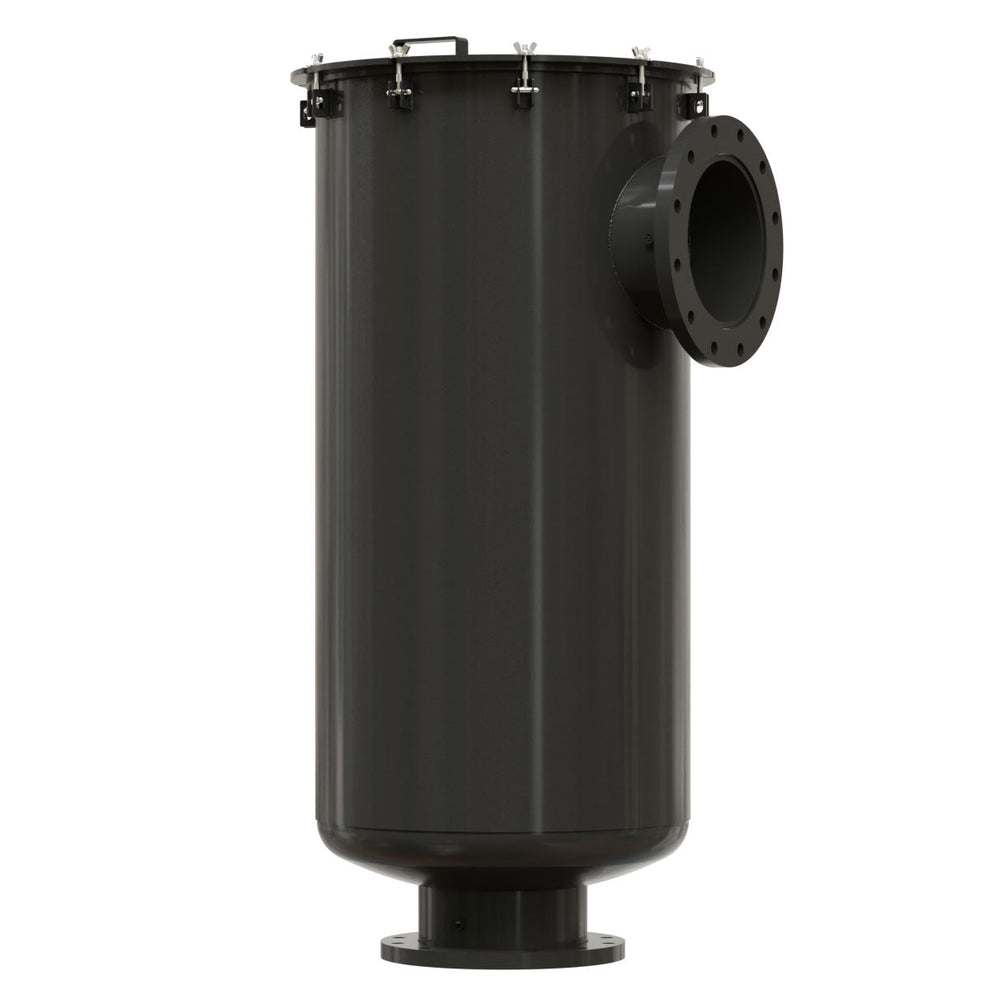

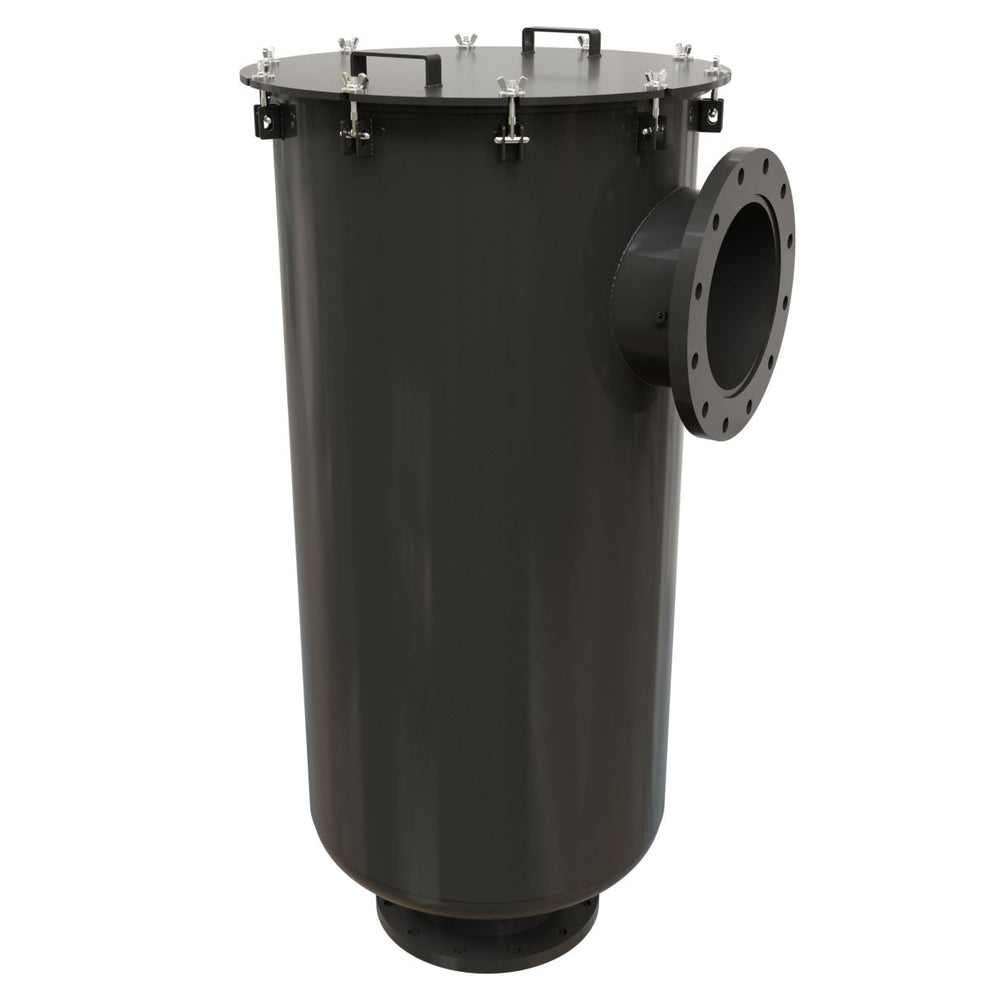

Solberg CSL-685P-1000F Inlet Vacuum Filter
The Solberg CSL-685P-1000F is a heavy-duty industrial inlet vacuum filter engineered for demanding vacuum pump, blower, compressor, and pneumatic conveying applications. Featuring a rugged carbon steel housing with high-efficiency polyester filter media, this CSL Series L-style vacuum filter delivers superior particulate removal, low pressure drop, and long service life in continuous-duty industrial environments.
Key Features
- Heavy-duty CSL Series L-style inlet vacuum filter
- 10 inch ANSI flanged inlet and outlet connections
- High-efficiency polyester filter element
- 99%+ filtration efficiency at 5 micron
- Corrosion-resistant black powder-coated carbon steel housing
- Heavy-duty T-bolt construction for easy maintenance access
- Positive sealing O-ring system for vacuum-tight performance
- Low pressure drop design for improved airflow efficiency
- Large dirt-holding capacity for extended maintenance intervals
- Hydrostatically tested for vacuum-tight operation
- Integrated 1/4" inlet and outlet gauge tap connections
- Designed for medium vacuum service applications
Technical Specifications
- Model: CSL-685P-1000F
- Series: CSL Series
- Configuration: Right Angle / L-Style
- Connection Type: ANSI Flange
- Connection Size: 10 Inch
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: 2900 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Overall Height: Approximately 57.5 Inches
- Outside Diameter: Approximately 26.4 Inches
- Weight: Approximately 380 lbs
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Filter Change-Out Differential: 15–20" H?O (37–50 mbar)
- Vacuum Rating: Medium Vacuum Service
- Replacement Element: 685P Polyester Element
Applications
The Solberg CSL-685P-1000F is designed for industrial applications requiring dependable inlet filtration and vacuum system protection, including:
- Industrial vacuum pumps
- Vacuum packaging systems
- Pneumatic conveying systems
- Vacuum lifting equipment
- Factory automation systems
- Side channel blowers
- Piston and screw compressors
- Soil venting and remediation systems
- Woodworking equipment
- Cement and ash handling systems
- Envelope and paper processing equipment
- Wastewater aeration systems
Benefits
The CSL-685P-1000F helps extend equipment life, reduce maintenance downtime, and improve operational efficiency by preventing harmful contaminants from entering sensitive vacuum and air handling equipment. Its robust industrial construction and high-capacity polyester filter element make it ideal for continuous heavy-duty service.
