Product Description

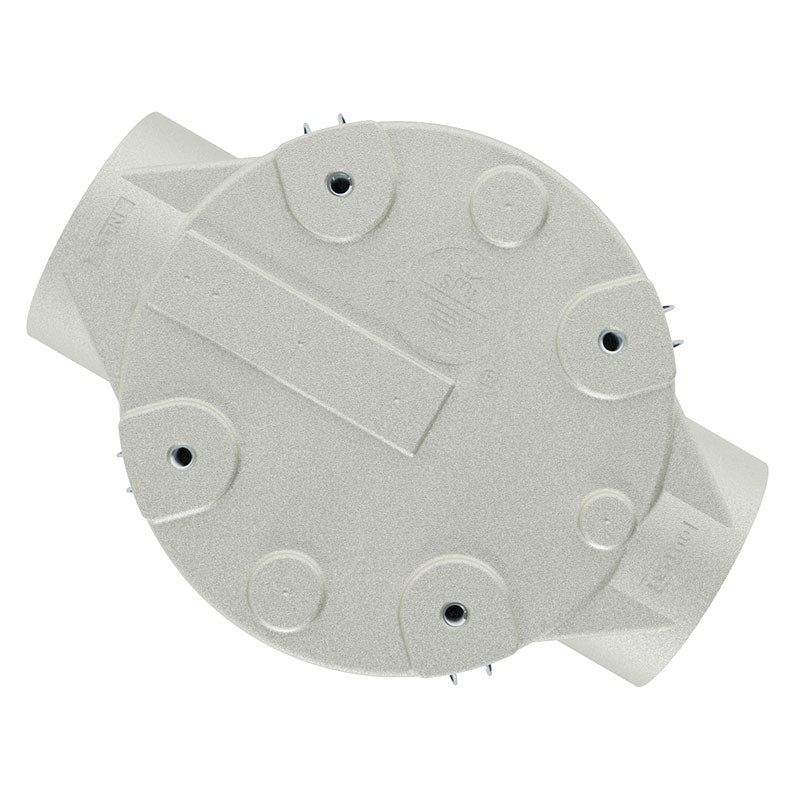

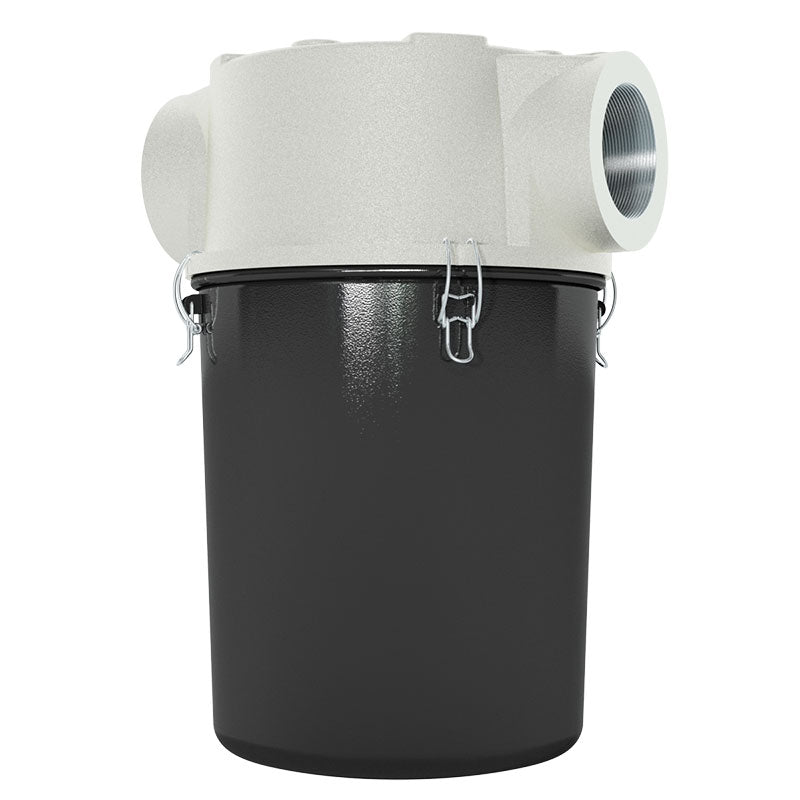

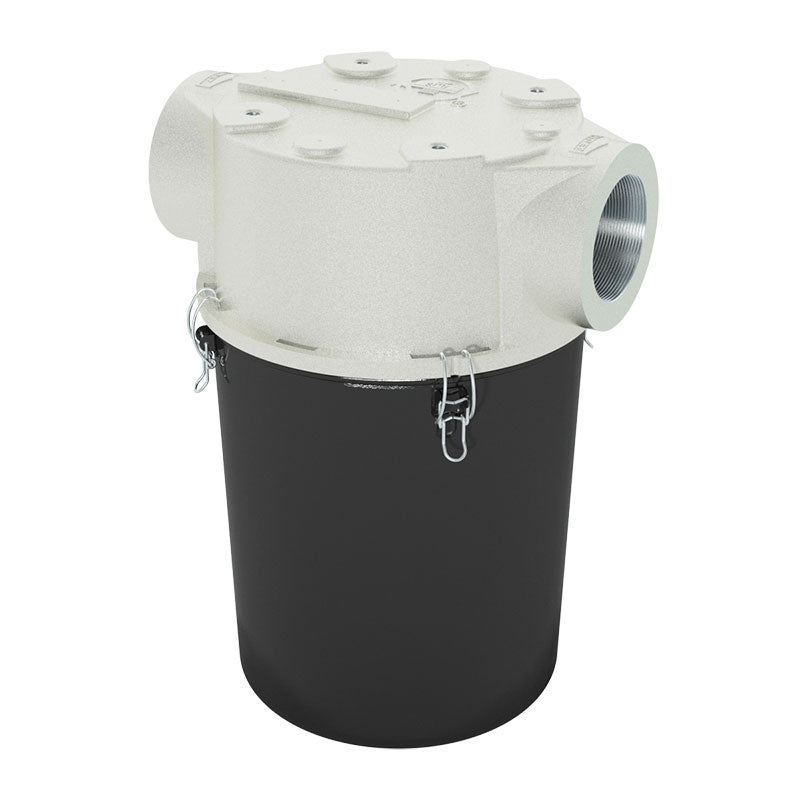

Solberg CT-234P-300C Inline Vacuum Filter
The Solberg CT-234P-300C is a heavy-duty inline straight-through vacuum filter engineered for vacuum pumps, pneumatic conveying systems, and industrial air handling applications. Featuring a high-efficiency 2 micron paper filter element and a durable black powder-coated carbon steel bucket, this filter provides superior particulate protection, low pressure drop, and dependable long-term performance in demanding industrial environments.
Key Features
- Inline straight-through vacuum filter design
- 3" FNPT threaded inlet and outlet connections
- High-efficiency paper filter element
- 2 micron filtration rating with 99%+ removal efficiency
- Compact design for installations with limited service space
- Corrosion-resistant cast aluminum top housing
- Black powder-coated carbon steel drop-down bucket
- Integrated internal baffle for optimized airflow performance
- Inlet positioned above element for extended filter life
- Easy maintenance with removable bucket assembly
- Low pressure drop for efficient system operation
- Suitable for medium vacuum service applications
Specifications
- Model: CT-234P-300C
- Connection Size: 3"
- Connection Type: FNPT
- Flow Capacity: 300 SCFM
- Element Flow Rating: 570 SCFM
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ removal efficiency
- Vacuum Rating: Medium Vacuum Service
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Dimensions: 13.5" OD x 18.63" Height
- Approximate Weight: 30 lbs
- Housing Material: Cast Aluminum / Carbon Steel
- Bucket Finish: Black Powder Coat
- Replacement Element: 234P Series
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Vacuum packaging equipment
- Factory automation systems
- Paper processing equipment
- Woodworking operations
- Cement and ash handling
- Glass and ceramic vacuum systems
- Wastewater aeration systems
- Central vacuum systems
- Remote piston and screw compressor installations
- Envelope manufacturing equipment
Optional Features
- Vacuum gauge ports
- Mounting bracket taps
- Swing bolts for heavy-duty environments
- Drain ports
- Extended bucket configurations
- Alternative filter media options
- Reverse pulse configuration
- Various finish options
The CT-234P-300C inline vacuum filter is designed to maximize equipment protection while maintaining high airflow efficiency, helping reduce maintenance costs and extend the operational life of industrial vacuum systems.
