Product Description

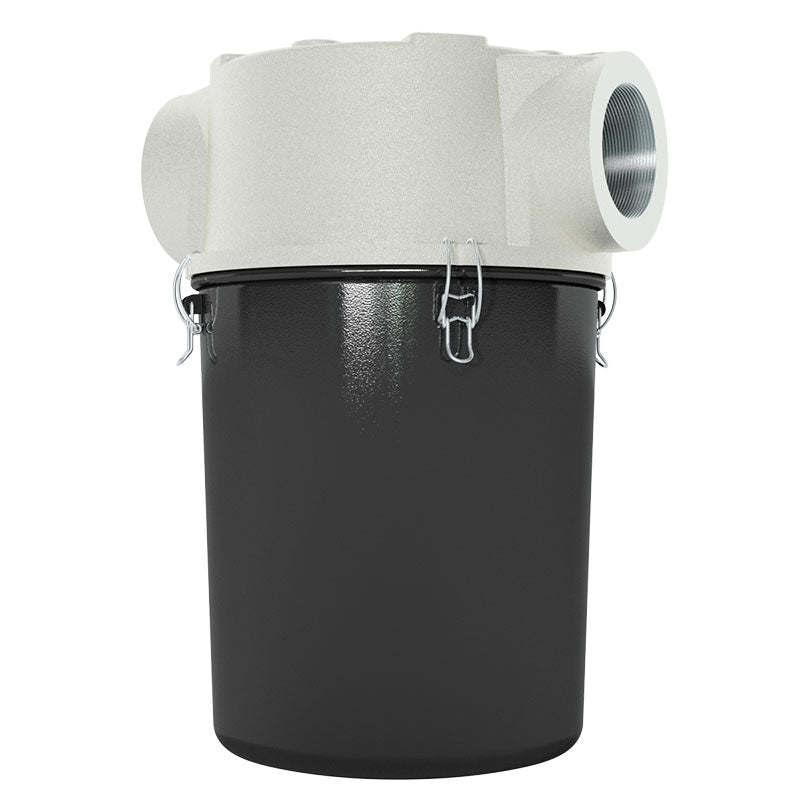

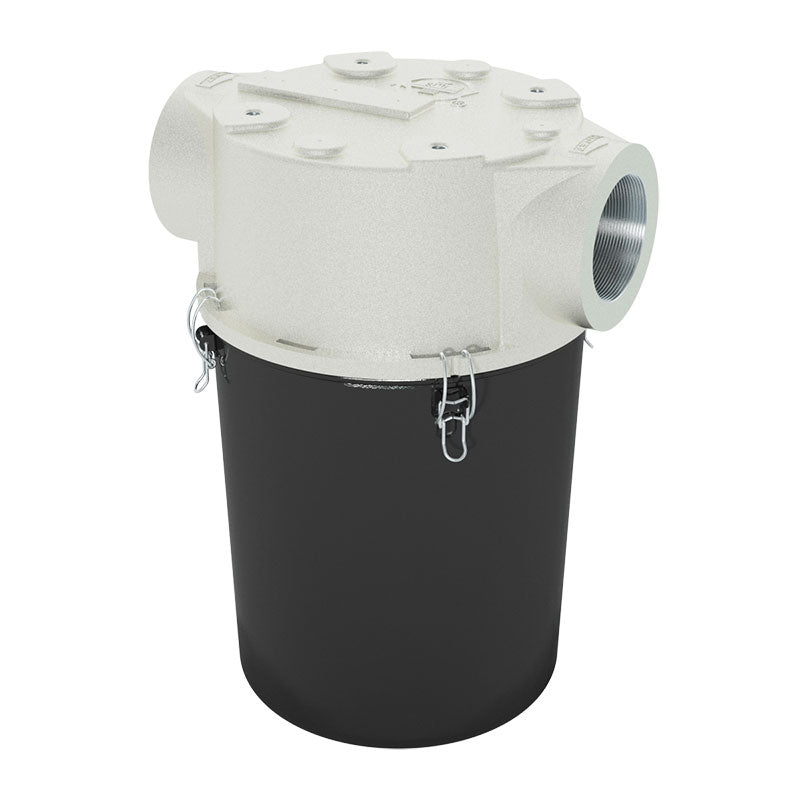

The Solberg CT-235P-300C is a high-capacity inline T-style inlet vacuum filter designed to protect vacuum pumps and industrial systems from dust, ash, and fine particulate contamination. Built for demanding industrial environments, it provides reliable filtration performance, low pressure drop, and long service life.
This CT Series filter uses a 5-micron polyester filter element with 99%+ efficiency, ensuring clean airflow and protecting downstream equipment. Its rugged carbon steel housing and cast aluminum head are engineered for durability, while the integrated baffle design improves separation efficiency and extends filter life.
Key Features
- Inline T-style inlet vacuum filter design
- 5-micron polyester filter media
- 99%+ particulate removal efficiency
- High-flow industrial design (up to ~300 CFM)
- Corrosion-resistant cast aluminum head with integrated baffle
- Durable powder-coated carbon steel bucket
- Compact footprint for easier installation
- Easy maintenance and element replacement
- Low pressure drop for efficient system performance
Specifications
- Model: CT-235P-300C
- Connection Size: 3 in FNPT
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Air Flow: 300 CFM
- Housing Material: Carbon Steel
- Head Material: Cast Aluminum
- Bucket Material: Powder-coated Steel
- Outside Diameter: 13.5 in
- Overall Height: 18.63 in
- Operating Temperature: -15°F to 220°F
- Pressure Drop: 37–50 mbar
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Cement and ash handling
- Paper processing industries
- Woodworking machinery
- Factory automation systems
- Vacuum packaging systems
- Glass and ceramic processing
- Remote compressor installations
- Industrial intake filtration systems
The Solberg CT-235P-300C delivers robust industrial vacuum protection with high airflow capacity, strong construction, and efficient particulate filtration for continuous-duty applications.
