Product Description

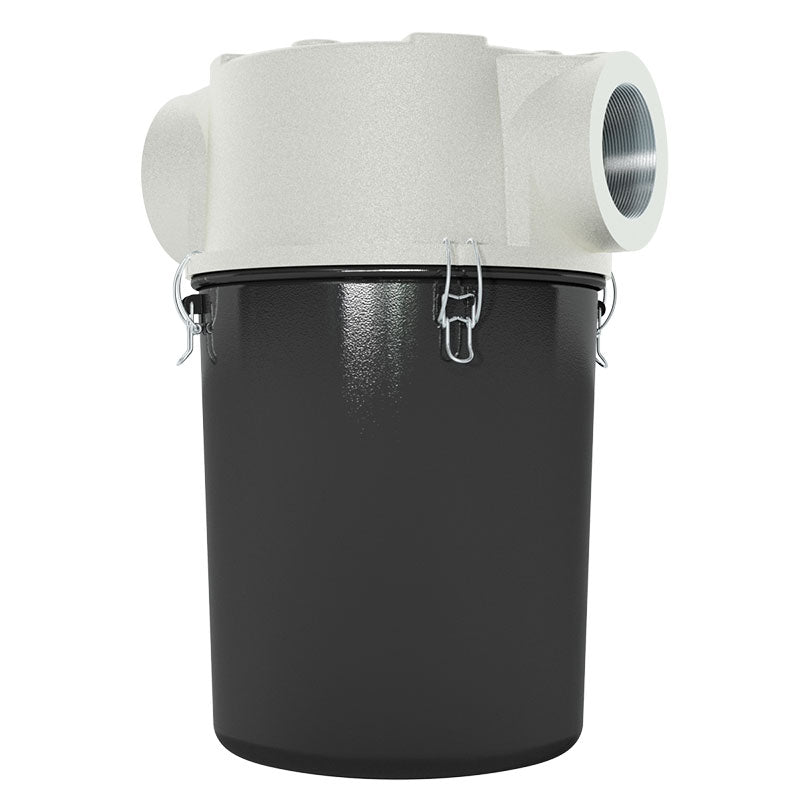

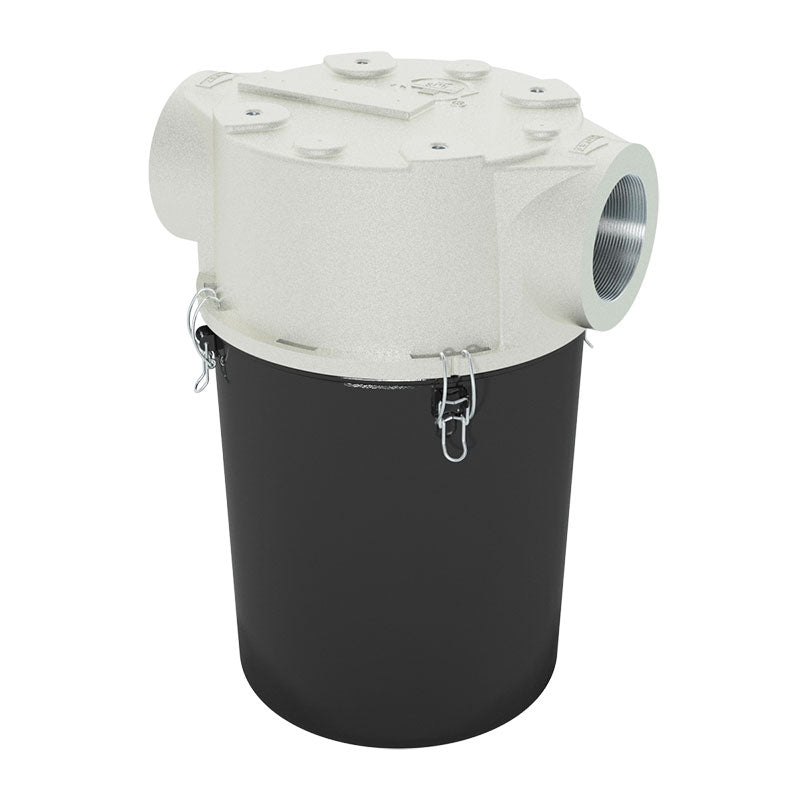

The Solberg CT-235P-400C is a high-capacity inline T-style inlet vacuum filter designed to protect vacuum pumps, blowers, and pneumatic conveying systems from dust, ash, and fine particulate contamination. Built for demanding industrial applications, it delivers excellent airflow performance, high filtration efficiency, and long service life.
This CT Series filter uses a 5-micron polyester filter element with 99%+ efficiency, ensuring clean intake air and reliable protection of downstream equipment. The rugged carbon steel housing combined with a corrosion-resistant cast aluminum head and integrated baffle design provides durability and improved separation efficiency.
Key Features
- Inline T-style inlet vacuum filter configuration
- 5-micron polyester filter media
- 99%+ particulate removal efficiency
- High-flow industrial design up to ~520 CFM
- Corrosion-resistant cast aluminum head with integrated baffle
- Durable powder-coated carbon steel bucket
- Compact design for easier installation in tight spaces
- Easy maintenance and quick element replacement
- Low pressure drop for efficient system performance
Specifications
- Model: CT-235P-400C
- Connection Size: 4 in FNPT
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Air Flow: 520 CFM
- Housing Material: Carbon Steel
- Head Material: Cast Aluminum
- Bucket Material: Powder-coated Steel
- Outside Diameter: 13.5 in
- Overall Height: 18.63 in
- Operating Temperature: -15°F to 220°F
- Pressure Drop: 37–50 mbar
- Weight: ~30 lb
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Cement and ash handling systems
- Paper processing industries
- Woodworking machinery
- Factory automation systems
- Vacuum packaging systems
- Glass and ceramic processing
- Remote compressor installations
- Industrial intake filtration systems
The Solberg CT-235P-400C provides reliable heavy-duty vacuum protection with high airflow capacity, durable construction, and efficient particulate filtration for continuous industrial operation.
