Product Description

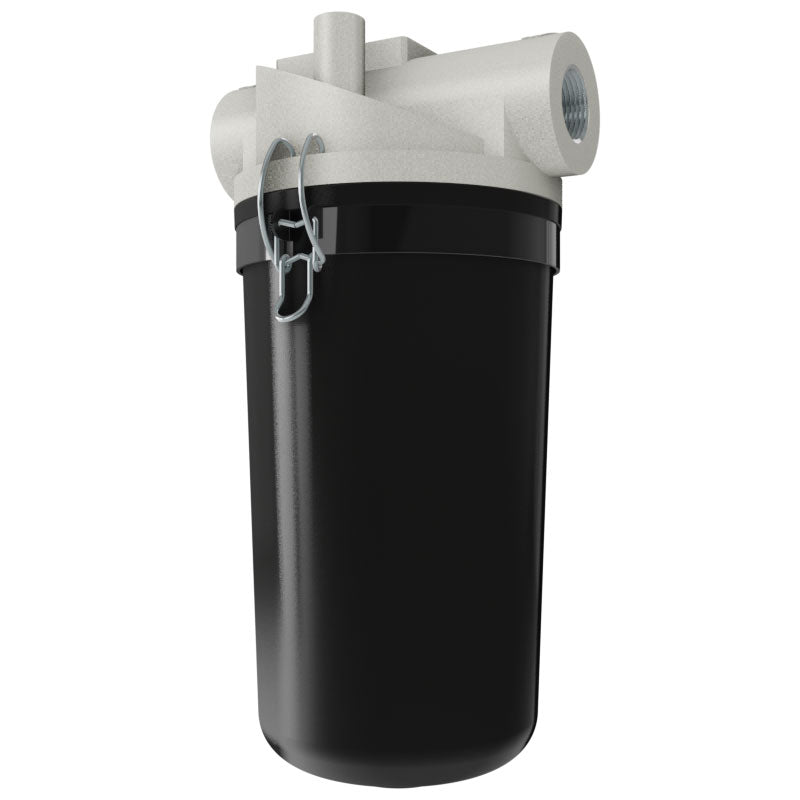

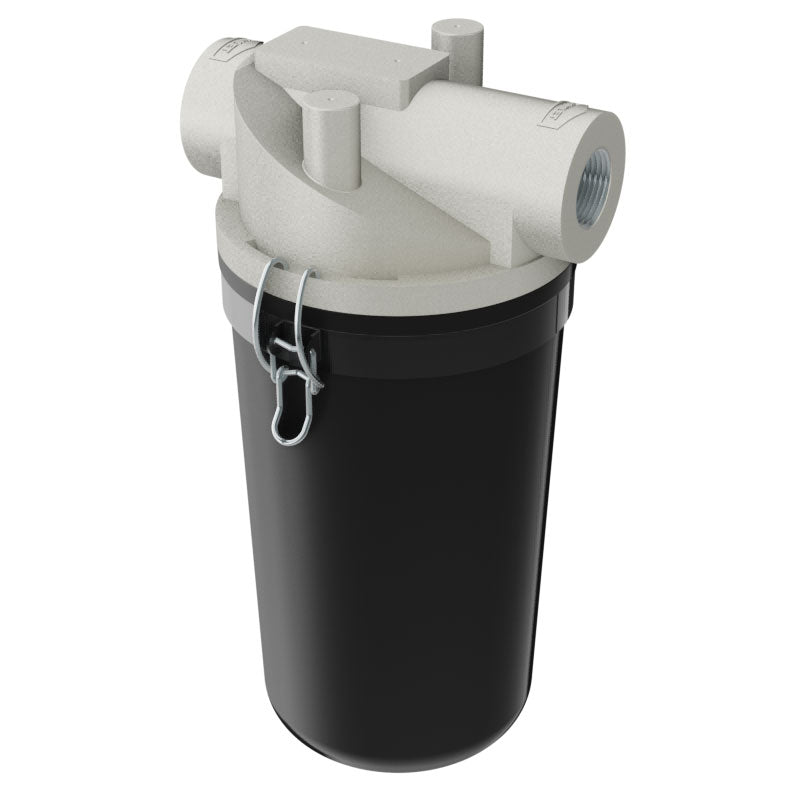

The Solberg CT-896-100C is a compact inline T-style vacuum inlet filter designed to protect vacuum pumps and industrial systems from fine particulate contamination. It is part of Solberg’s CT Series, built for reliable performance in low-flow vacuum applications where space efficiency and serviceability are important.
This model uses a 2-micron paper filter element with 99%+ efficiency, providing excellent fine dust removal. It features a durable cast aluminum head with integrated baffle design and a heavy-duty carbon steel drop-down bucket for efficient contaminant collection and easy maintenance.
Key Features
- Inline T-style vacuum inlet filter design
- 1" NPSC connection size
- 2-micron paper filter element for fine particulate filtration
- 99%+ efficiency for dust and contaminants
- Cast aluminum head with integrated baffle system
- Powder-coated carbon steel drop-down CT bucket
- Compact footprint for tight installations
- Easy maintenance and quick element replacement
- Designed for low-flow vacuum systems
Specifications
- Model: CT-896-100C
- Connection Size: 1 in NPSC
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Flow Capacity: ~40 SCFM
- Housing Material: Cast aluminum head
- Bowl Material: Carbon steel (CT drop-down bucket)
- Operating Temperature: -15°F to 220°F
- Vacuum Service: Medium vacuum applications
- Pressure Drop: 10–15 in H?O over initial ?P
- Weight: ~12 lb
Applications
- Vacuum pump inlet protection
- Cement and ash handling systems
- Woodworking dust collection
- Pneumatic conveying systems
- Paper processing industries
- Central vacuum systems
- Factory automation equipment
- General industrial air filtration systems
The Solberg CT-896-100C delivers reliable fine particulate filtration in compact systems, improving equipment protection, reducing maintenance requirements, and extending vacuum pump life in industrial environments.
