Product Description

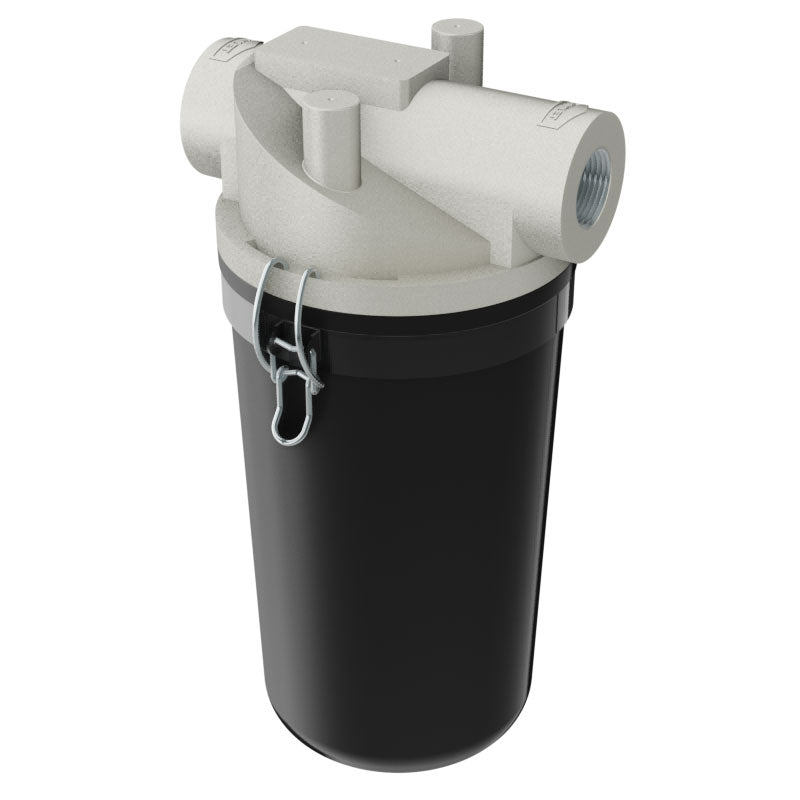

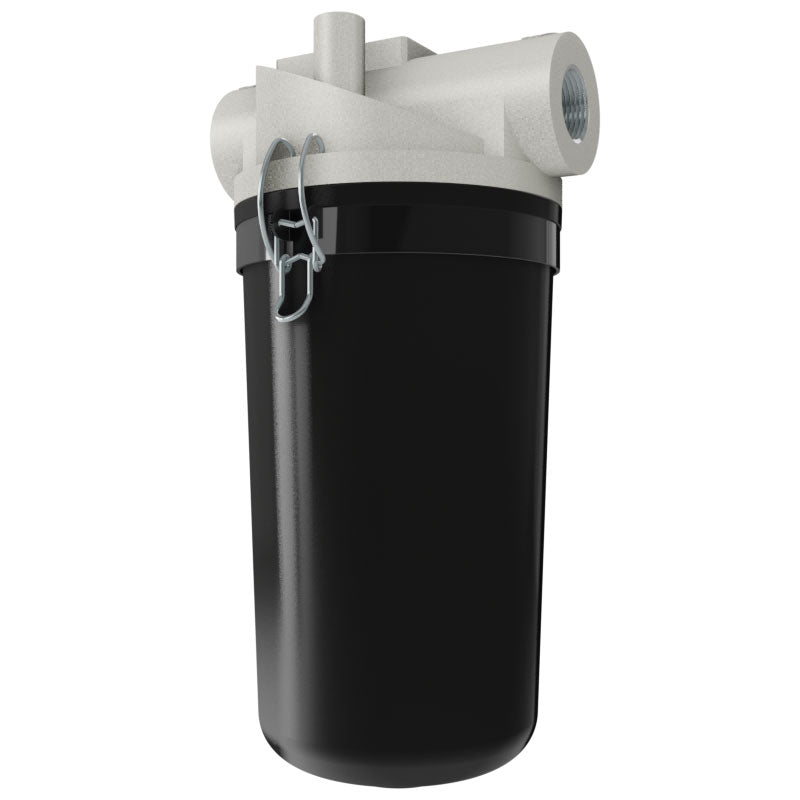

The Solberg CT-897-150C is a heavy-duty inline T-style inlet vacuum filter designed to protect vacuum pumps, blowers, and pneumatic conveying systems from dust, debris, and fine particulate contamination. Built for industrial reliability, it combines high-efficiency filtration with a rugged carbon steel housing for long service life.
This CT Series filter features a 5-micron polyester filter element with 99%+ removal efficiency, ensuring clean airflow and improved equipment protection. Its compact T-style design minimizes piping requirements while maintaining excellent flow performance and easy maintenance access.
Key Features
- Inline T-style inlet vacuum filter configuration
- 5-micron polyester filter media
- 99%+ particulate removal efficiency
- Corrosion-resistant cast aluminum head
- Durable black powder-coated carbon steel bucket
- Integrated baffle design for improved separation efficiency
- Compact design for space-constrained installations
- Easy maintenance and quick element replacement
- Low pressure drop for efficient airflow
Specifications
- Model: CT-897-150C
- Connection Size: 1-1/2 in (FNPT / NPSC)
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Max Flow Rate: ~80 CFM
- Housing Material: Carbon Steel
- Head Material: Cast Aluminum
- Bucket Material: Powder-coated Steel
- Outside Diameter: 7 in
- Overall Height: 13 3/8 in
- Operating Temperature: -15°F to 220°F
- Pressure Drop (changeout): 10–15 in. H?O above initial ?P
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Central vacuum installations
- Woodworking machinery
- Paper processing systems
- Cement and ash handling
- Factory automation systems
- Vacuum packaging equipment
- Remote compressor installations
- Industrial intake filtration
The Solberg CT-897-150C delivers dependable vacuum protection with strong airflow capacity, durable construction, and efficient particulate removal for demanding industrial environments.
