Product Description

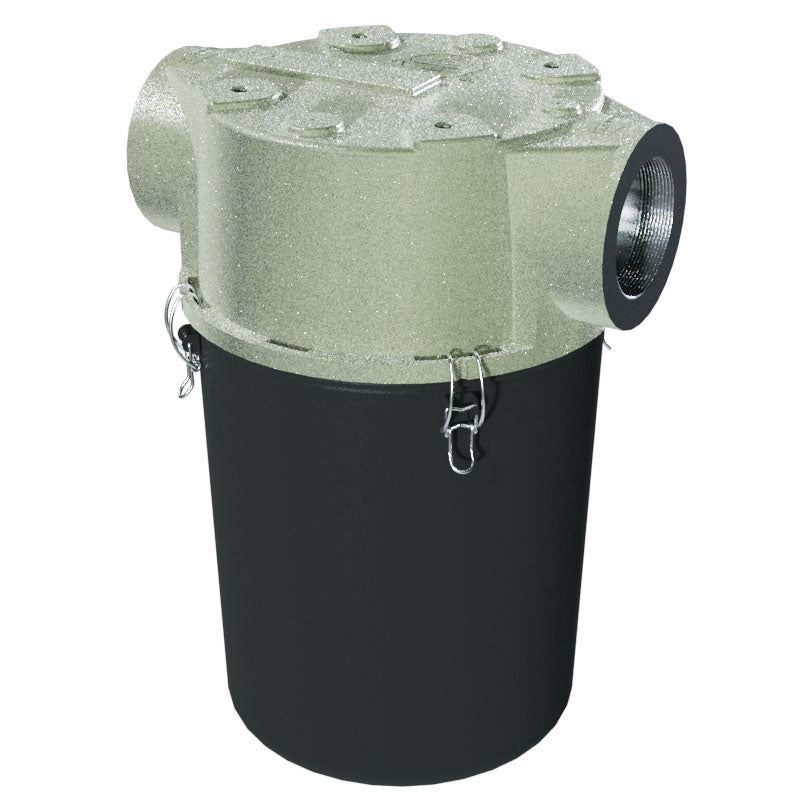

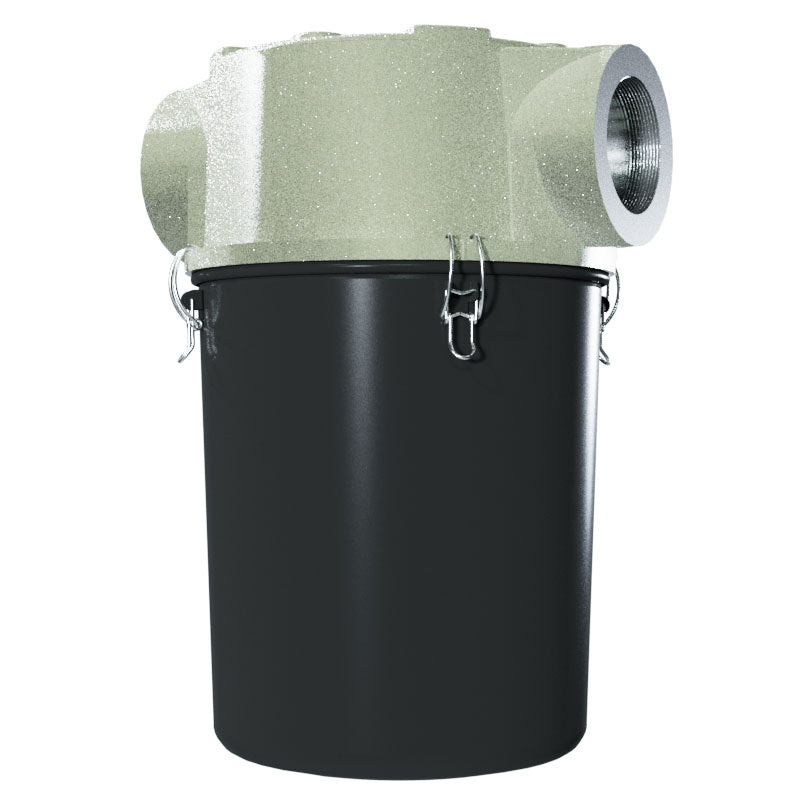

Solberg CT-SML345-300C SpinMeister® Inline Vacuum Filter
The Solberg CT-SML345-300C is a heavy-duty inline straight-through vacuum filter engineered for extreme-duty industrial environments with high dust and particulate loading. Featuring Solberg’s advanced SpinMeister® centrifugal precleaner technology, this filter efficiently separates large contaminants before they reach the primary filter element, helping extend filter life and improve overall vacuum system performance.
Designed with a durable cast aluminum top housing and black powder-coated carbon steel drop-down bucket, the CT-SML345-300C provides superior dirt holding capacity, reduced pressure drop, and dependable filtration performance for vacuum pumps, pneumatic conveying systems, woodworking operations, and material handling applications.
Key Features
- Advanced SpinMeister® centrifugal precleaner technology
- Heavy-duty inline straight-through vacuum filter design
- 3" FPT threaded inlet and outlet connections
- 85%+ precleaner efficiency at 15 microns
- 99%+ filtration efficiency with secondary paper element
- Designed for high dust and extreme-duty applications
- Integrated low-pressure SpinMeister® design
- Reduced pressure drop compared to conventional precleaners
- Cast aluminum top with integrated baffle design
- Black powder-coated carbon steel drop-down bucket
- Large dirt holding capacity for extended service intervals
- Clip-release band for quick and easy maintenance
- Positive sealing assembly for reliable filtration performance
Specifications
- Model: CT-SML345-300C
- Series: SpinMeister® ST/CT Series
- Connection Size: 3"
- Connection Type: FPT
- Configuration: Inline Straight-Through Filter
- Recommended Airflow Range: 100–200 SCFM
- Secondary Element Flow Rating: 300 SCFM
- Precleaner Efficiency: 85%+ at 15 Microns
- Paper Element Efficiency: 99%+ at 2 Microns
- Polyester Element Efficiency: 99%+ at 5 Microns
- Housing Material: Cast Aluminum / Molded Composite
- Bucket Material: Black Powder-Coated Carbon Steel
- Dimensions: Approx. 19" Height x 13.5" Diameter
- Suggested Service Clearance: 8"
- Approximate Weight: 21–25 lbs
- Replacement Element: SML345 Series
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Coarse Vacuum Service
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Woodworking operations
- Material handling systems
- Plastic processing equipment
- Screw compressor systems
- Food processing vacuum applications
- Vacuum lifting systems
- Vacuum freeze drying systems
- Central vacuum systems
- Industrial dust collection applications
Optional Features
- Polished aluminum SpinMeister® assemblies
- Alternative filter media configurations
- Pressure drop gauges
- Gauge and mounting bracket taps
- Spool piece extenders
- Custom bucket configurations
- Additional inlet filter assembly options
The CT-SML345-300C SpinMeister® vacuum filter is engineered to maximize filter life and protect industrial vacuum equipment by removing large particulate before it reaches the primary filter media, helping reduce maintenance costs and improve operational reliability in severe-duty environments.
