Product Description

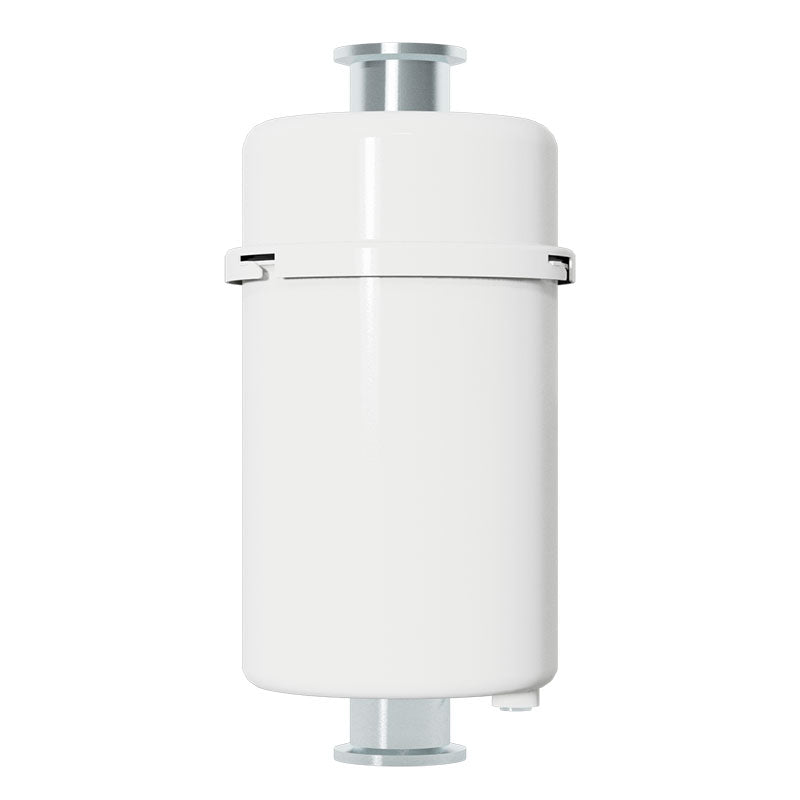

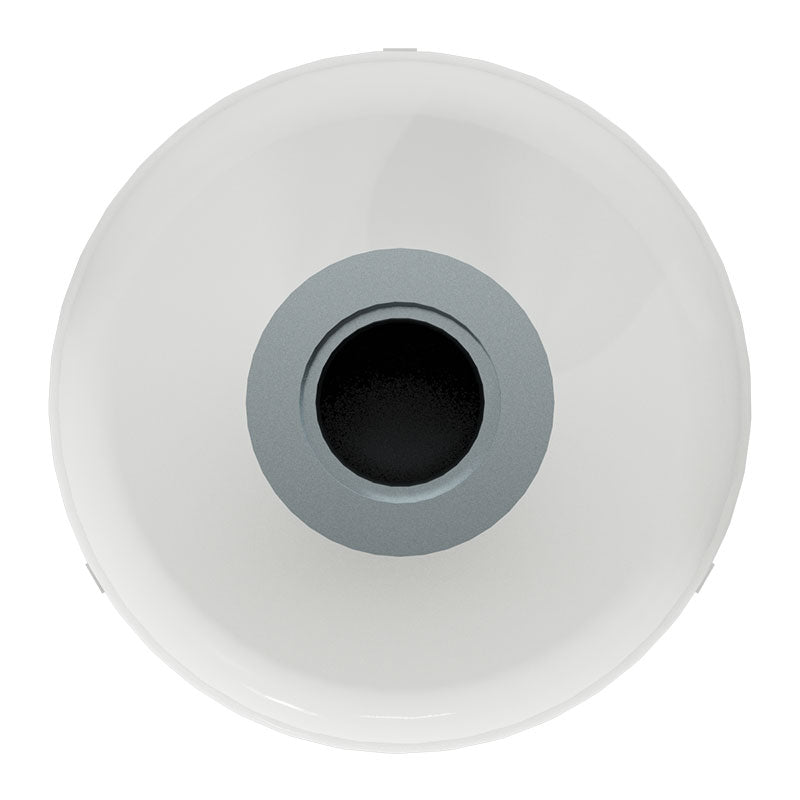

Solberg DEE-PSG725/AC10-NW16 Oil Mist & Odor Discharge Filter
The Solberg DEE-PSG725/AC10-NW16 is a high-performance dual-stage vacuum pump discharge filter designed to remove both oil mist and process-related odors from oil-sealed vacuum pump exhaust. It combines a high-efficiency coalescing element with an activated carbon adsorption stage for cleaner and safer exhaust air.
This DEE series model is built with a durable carbon steel housing and a corrosion-resistant white powder-coated finish. It is engineered for continuous-duty industrial operation and includes an integrated backpressure relief valve that protects the vacuum pump from excessive differential pressure conditions.
Key Features
- Dual-stage filtration: oil mist coalescing + activated carbon odor removal
- NW16 ISO flange inlet and outlet connections
- 0.3 micron high-efficiency filtration media
- 99.97% efficiency for oil mist separation
- Activated carbon element removes process-related odors
- Integrated backpressure relief valve (opens at approx. 0.5 bar differential)
- Seamless drawn carbon steel housing construction
- White powder-coated corrosion-resistant finish
- Convenient drain port for collected oil removal
- Designed for vertical installation and easy servicing
Specifications
- Model: DEE-PSG725/AC10-NW16
- Series: DEE Oil Mist & Odor Adsorption Series
- Connection Type: NW16 ISO flange
- Flow Capacity: ~12 SCFM (approx.)
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 32°F to 180°F (0°C to 80°C)
- Housing Material: Carbon steel (powder-coated)
- Weight: ~1.4 kg
- Primary Element: PSG725 coalescing element
- Odor Element: AC10 activated carbon cartridge
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum and process systems
- Laboratory vacuum applications
- Vacuum coating and freeze drying systems
- Semiconductor and electronics manufacturing
- Refrigeration and HVAC evacuation systems
- Processes requiring both oil mist and odor control
Benefits
- Removes both oil mist and odors from exhaust air
- Improves workplace air quality and environmental safety
- Protects vacuum pump with integrated pressure relief valve
- Supports stable, continuous-duty operation
The DEE-PSG725/AC10-NW16 is engineered for demanding vacuum applications requiring dual-stage exhaust treatment, combining efficient oil mist separation with activated carbon odor control and built-in pump protection.
