Product Description

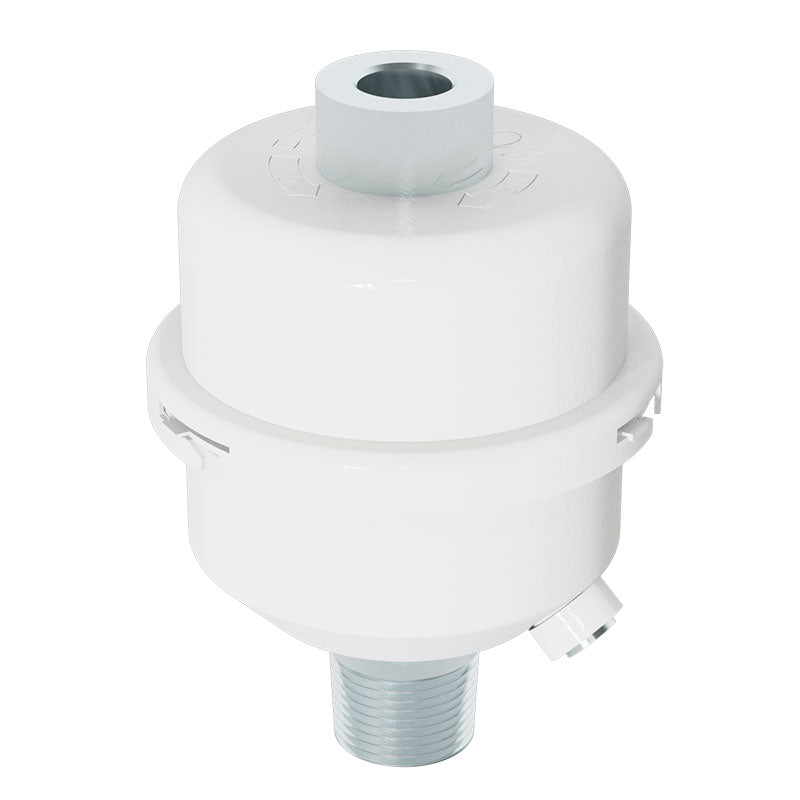

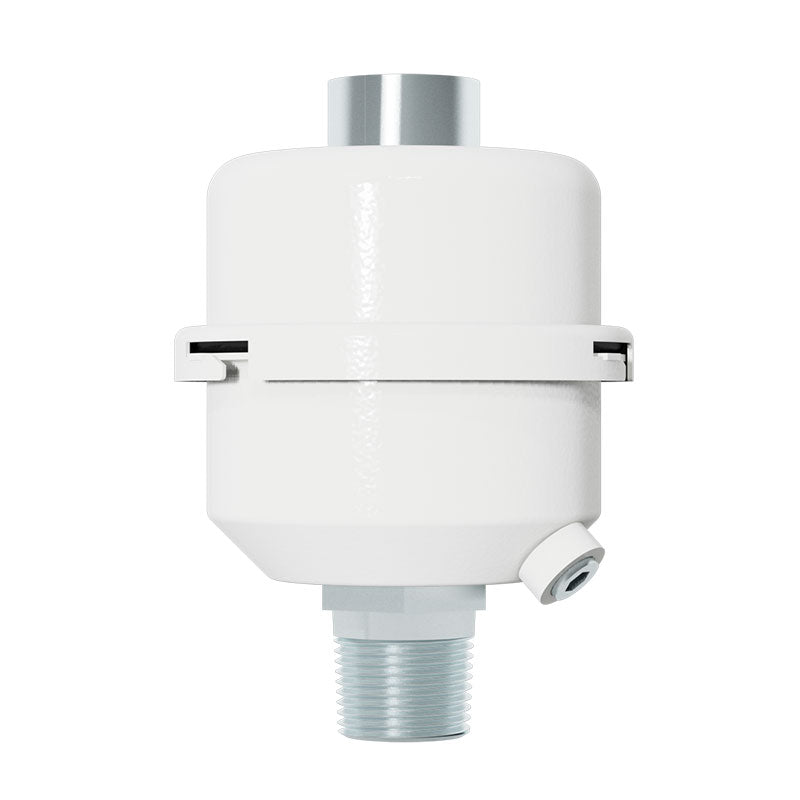

Solberg EE-GL915-075 Oil Mist Discharge Filter
The Solberg EE-GL915-075 is a compact oil mist discharge filter designed for oil-sealed vacuum pumps. It is engineered to capture fine oil fog, mist, and aerosol particles from exhaust streams, improving air quality, reducing emissions, and protecting surrounding equipment in industrial and laboratory environments.
This unit features a durable carbon steel housing with a corrosion-resistant white powder-coated finish and a high-efficiency coalescing element. It is designed for continuous-duty operation and includes a safety backpressure relief valve to protect the vacuum pump under high differential pressure conditions.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 3/4" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Integrated backpressure relief valve (opens at approx. 0.5 bar differential)
- Seamless drawn steel housing construction
- Corrosion-resistant white powder-coated finish
- Low pressure drop for stable vacuum performance
- 1/8" NPSC oil drain port for condensate removal
- Vertical installation design for proper drainage
Specifications
- Model: EE-GL915-075
- Series: EE Series Oil Mist Discharge Filter
- Connection Size: 3/4" MPT
- Flow Capacity: ~8 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97% (DOP rated)
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Housing Material: Carbon steel (powder-coated)
- Weight: ~1.2 lb
- Replacement Element: GL915
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum processes
- Laboratory vacuum equipment
- Vacuum coating and freeze drying systems
- Leak detection and testing systems
- Refrigeration and HVAC evacuation service
- Semiconductor and electronics manufacturing
Benefits
- Improves workplace air quality by reducing oil mist emissions
- Protects equipment from contamination and oil discharge
- Enhances vacuum pump safety with pressure relief protection
- Supports reliable continuous-duty operation
The EE-GL915-075 is engineered for efficient oil mist separation in compact vacuum systems, combining high-performance filtration with built-in safety features for reliable industrial use.
